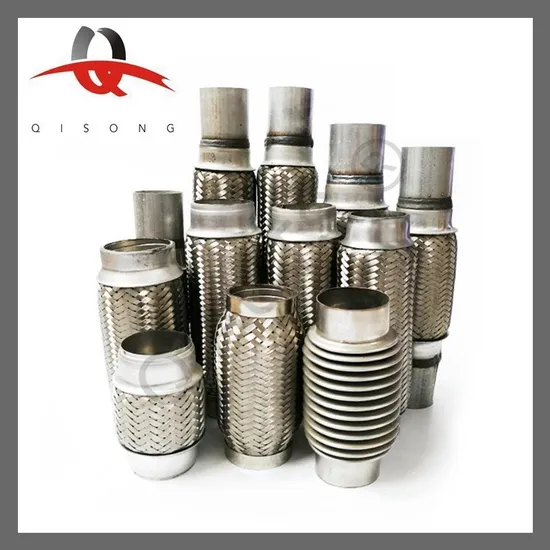

![[Qisong] High Quality Auto Parts Qiauts Exhaust Flexible Pipes Corrugated Pipes](enimg/21/218888.webp "[Qisong] High Quality Auto Parts Qiauts Exhaust Flexible Pipes Corrugated Pipes")
[Qisong] High Quality Auto Parts Qiauts Exhaust Flexible Pipes Corrugated Pipes
| US$0.99-9.99 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
QS-FP1003
Car Make
Universal
Car Model
Universal
Engine Type
Universal
Type
Exhaust Flexible Pipe
Body Material
Stainless Steel 201/304
Discharge Standard
Euro III
Certification
ISO9001, TS16949
Noise Source
The Noise of Engine
The Noise of Engine
Aerodynamic Noise
Automobile Chassis Noise
Aerodynamic Noise
Component
Exhaust Pipe
Main Market
South America
Structure
Braid+Bellows+Braid/Interlock+Caps+Nipples
Working Pressure
0 ~ 5 MPa
Working Temperture
-20 ~ 650 Degrees
Transport Package
1 Piece in a Plastic Bag, 25 Pieces in a Carton.
Specification
ID X Length
Trademark
QIAUTS
Origin
China
HS Code
8708920000
Production Capacity
100000 PCS / Month
Product Description
Product DescriptionQIAUTS® Exhaust Flexible Pipes for Automobile are made of stainless steel 201/304.
It consists of an outer braid, middle double bellows and inner lined optional braid, interlock or nothing.
The customized diameter, length, structure, logo, drawing and design are welcome!
- Installed between the engine exhaust manifold and the purifier, can absorb a wide range of vibration, reduce noise, compensate for installation deviation and thermal expansion and contraction, easy to install and extend the role of exhaust muffler system life.
- Using corrugated molding technology, good flexibility, good air tightness.
- Can reduce air pollution.
- Braided Inner Liner provides laminar flow while retaining flexibility in the coupling itself, furthermore our flexi pipes are made of stainless steel and aluminised ends. Clamp on Fexi pipes they come with steel extensions for ease of installation.
- Exhaust Flexible Pipe/Tube Flexible pipe are engineered to isolate vibration generated by the engine, thereby relieving stress on your vehicle's entire exhaust system.
Detailed Photos
Product Parameters
Product Name: Exhaust Flexible Pipe for Automobile Materials: Stainless Steel 201/304 for Main Parts of Bellow, Braid and Interlock Aluminized Steel / Stainless Steel 409 for Collars and Nipples Structures: Outer Braid + Single/Double Layers Bellow + Inner Braid/Interlock/Nothing | |||||
| Variety Specification: | |||||
| Inner Diameter | Overall Length | Inner Diameter | Overall Length | Inner Diameter | Overall Length |
| ID | OL | ID | OL | ID | OL |
| 1-3/4 " (45.0mm) | 04 " (102mm) | 2-1/2 " (63.5mm) | 04 " (102mm) | 43.0mm | 120mm |
| 06 " (152mm) | 06 " (152mm) | 165mm | |||
| 08 " (203mm) | 08 " (203mm) | 180mm | |||
| 09 " (230mm) | 09 " (230mm) | 50.0mm (52.0mm) | 120mm | ||
| 10 " (254mm) | 10 " (254mm) | 165mm | |||
| 11 " (280mm) | 11 " (280mm) | 54.5mm | 120mm | ||
| 2 " (51.0mm) | 12 " (305mm) | 12 " (305mm) | 150mm | ||
| 04 " (102mm) | 3 " (76.2mm) | 04 " (102mm) | 180mm | ||
| 06 " (152mm) | 06 " (152mm) | 200mm | |||
| 08 " (203mm) | 08 " (203mm) | 250mm | |||
| 09 " (230mm) | 10 " (254mm) | 60.0mm (61.0mm) | 160mm | ||
| 10 " (254mm) | 12 " (305mm) | 200mm | |||
| 2-1/4 " (57.2mm) | 11 " (280mm) | 06 " (152mm) | 240mm | ||
| 12 " (305mm) | 3-1/2 " (89.0mm) | 08 " (203mm) | 65.0mm | 150mm | |
| 04 " (102mm) | 10 " (254mm) | 200mm | |||
| 06 " (152mm) | 12 " (305mm) | 70.0mm | 100m | ||
| 08 " (203mm) | 4 " (102.0mm) | 08 " (203mm) | 120mm | ||
| 09 " (230mm) | 10 " (254mm) | 150mm | |||
| 10 " (254mm) | 12 " (305mm) | 200mm | |||
| 11 " (280mm) | ID 25~150mm OL 100~400mm Customized size, design, drawing and logo are welcome ! | ||||
| 12 " (305mm) | |||||
