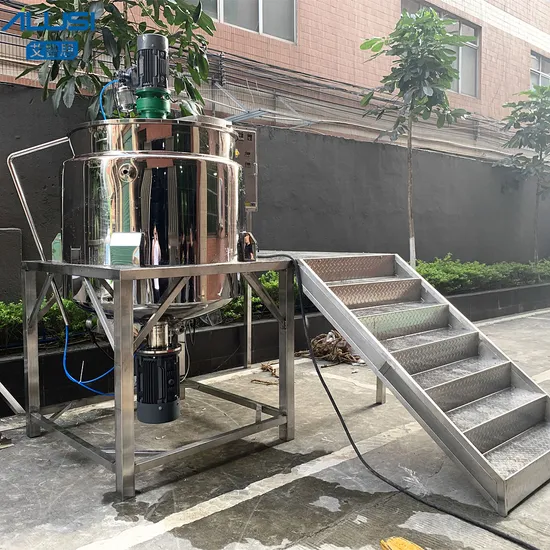

Industrial Explosion Proof Vacuum Homogenizer Mixer Machine Chemical Production Line Equipment Reactor
| US$8,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AHM
Application
Liquid, Liquid with Suspended Solids, Viscous Fluid
Application Area
Chemical, Daily Chemical
Certification
CE, GMP
Condition
New
Control System
Button Control
Main Material
Stainless Steel
Mixing Capacity
1000L & Above
Mixing Drum Shape
Conical
Speed Control
Variable Speed
Speed Range
60 R/min & Above
Stirring Type
Spiral
Temperature Control
With Heating
Type
High Shear Homogenizer
Warranty
1 year
Working
High Speed Mixer
Capacity
1000L
Working Capacity
300-1000L
Heating Method
Electric Heating
Mixing Motor Power
4kw
Mixing Type
Upper Frame Oar Scrape Mixer
Homogenizer
Bottom Homogenizer with Frequency Inverter
Discharge
Bottom Outlet Discharge
Homogenizer Power
11kw
Bottom Homogenizer Speed
0-2880rpm
Agitator Speed
0-62rpm
Material
SUS304&SUS316, SUS316L
Structure
Main Tank, Platform and Cabinet
Function
Mixing, Homogenizing, Heating
Mixer Type
Agitator
Transport Package
Wooden Box Packing
Specification
1100*1500*2000mm
Trademark
Ailusi
Origin
China
HS Code
8479820090
Production Capacity
50sets/Month
Product Description
AHM 1000L explosion proof type hand sanitizer making alcohol homogenizer mixer making machineManufacturer of Cosmetic | Pharmaceutical | Food | Daily Chemical industrial | GMP Standardliquid detergent homogenizing mixer machineLiquid soap mixing tank,it's widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blending tank, buffer tank, melting tank, high shear mixing tank and emulsifying tank, which cleanable to sanitary standards .
Main Features 1. The Omnidirectional wall scraping and mixing adopts a frequency converter to adjust the speed. At low temperatures and high viscosity, it can reduce the formation of bubbles.
2. Jacket heating and cooling function (steam/electric heating) 3. The pot body is welded by three layers of stainless steel plates, mirror polished, in line with GMP requirements. 4. High-speed shearing homogenizer 3600rpm, strong mixing of solid and liquid raw materials. 5. Schneider switch control button, Delta inverter, Omron temperature control Product Parameters
| Model | AHM-1000 | Working capacity | 1000L |
| Heating method | Steam/electric | Working capacity | Frame wall scraper mixing |
| Mixing motor power | 4KW | Heating power | 9KW*4 |
| Mixing Speed | 0-62rpm | Homogenizer frequency | 0-2880rmp |
| Bottom Homogenizer power | 11KW | Homogenizer type | Internal and external circulation(option) |
| Control method | Button control | Frequency converter | Delta/Panasonic/Mitsubishi |
| Electrical components | Schneider/Delixi | Tank materials | Inner layer 6mm/SUS316 Middle layer 5mm/SUS304 Outer layer 3mm/SUS304 |
