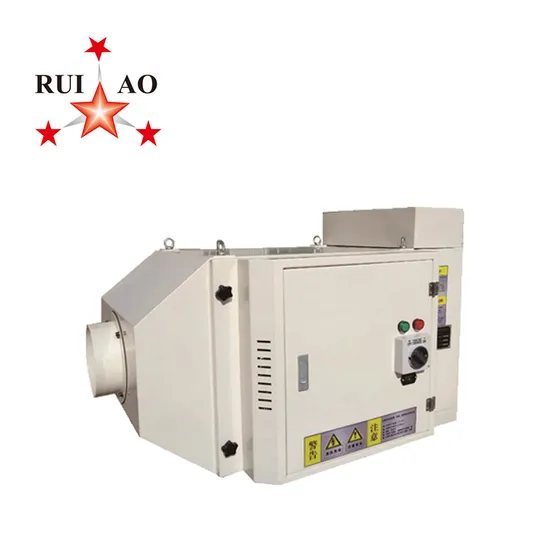

Industrial Electrostatic Oil Mist Collector Oil Fume Coolant Gas Collection Extractor for Pure Oil Cutting Fluid

Product Description

Product Description
Electrostatic oil mist collector is suitable for collecting and purifying pure oil cutting fluid mist. Oil mist are from various processes such as brazing, casting, flame cutting, drilling, grinding, milling and attack.This product adopts mechanical purification and electrostatic purification dual role.
No consumables electrostatic oil mist collector processing pure oil coolant mist smoke for machine tool Working principle 1. The dirty air first passes through a pre-filter. Large particles of oil are filtered.,Gravity inertial cleaning technique, The special structure of the room gradually divides large diameter pollutant into physical separation, And balanced rectifier.2. The air then passes into the high voltage ioniser section where the particulates are charged to a positive potential. And then the air passes into low voltage collector cell section where the particulates are charged to a negative potential. So the particulates are attracted to the collector plates effectively.3. The particulates remain on the plates or drain down in to the sump.4. The cleaned air exits through the cabinet.

Model	RA-1000P	RA-1500P
Power	160W	180W
Voltage	220V
Air flow	1000m3/h	1500m3/h
Inlet diameter	150mm	150mm
Weight	58kg	72kg
Dimension	730x560x490	850x640x520

Detailed Photos


Application

Certifications
Packaging & Shipping

Company Profile
FAQ
Q: Are you a factory?
A: yes, we are. and we have 25 years production experience and over 10 years export experience. you can get our good quality and service and competitive price.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
