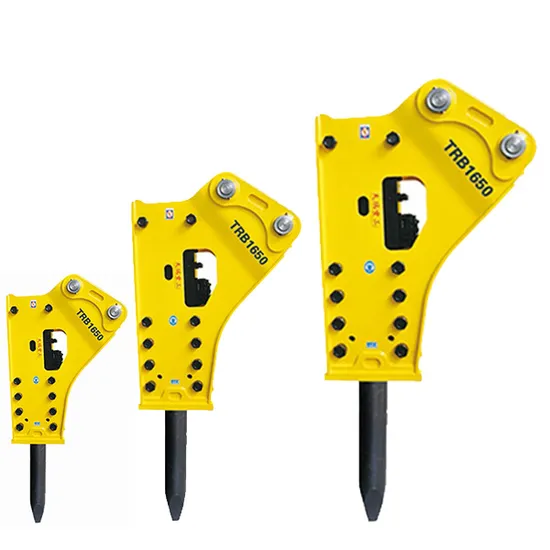

Triangle Side Type Construction Machinery for Breaking Dia 85mm

Product Description

Hydraulic Breakers produces stable high-speed percussion, and exceptional value and durability for all construction, demolition, and rockbreaking requirements.
Excavator Hydraulic Breaker Chisel
Excavator Mounted Hydraulic Breaker Chisel is powered by an excavator or loader pump provides pressure oil, it can dig a fundamental role in building a more efficient clean up floating rock crevice in the rocks and soil. Optional hydraulic hammer excavator model is based on the principle of the operating environment to choose the most suitable hydraulic rock breaker
Hydraulic breaker has become an important tool for the job, it was installed in the hydraulic breaker backhoe loaders (also known as two busy) or wheel loader for crushing operations. Excavator Hydraulic Breaker, also known as hydraulic breaker or hydraulic rock breaker (Excavator Hydraulic Breaker).
Excavator Mounted Hydraulic Breaker Chisel Feathers:
1. Use the highest strength material to get better wearing resistance.
2. Easy maintenance, prolonged life.
3. We have accumulated sales of 20, 000 units, rich maintenance experience.
4. The warranty period is 1 year.
Advantages:
1.Piston: the claim rate 0.1% for one year, The production line is CNC maching centre from Germany, Japan and South Korea.
2. Main body: For front head, back head and cylinder, we all use 20 CrMo, Adopt the most advanced Austrian heat treatment production line also with carburizing process over 36 hours, and depth of 1.8mm, while for other supplier, they use 40 CrMo, and use normal heat treatment equipment, only just need 5 hours heat treament process.
3. Bracket : Our materials is Q345 ( 16Mn), and obviously betten than other suppliers'Q235.
4. Control Valve : Also with Austrian heat treatment process, which is directly imported from South korea
5. Seal kit: we use NOK brand, imported from Japan directly,
6. Spare parts : four our through bolt, from cover, inner bush and tools, we all use 42CrMo, this steel raw materials is with betten strength and goood resistance
7. Robust design, durable parts and experienced engineers have enabled our hydraulic breakers to be POWERFUL in Striking, STABLE in Performance and DURABLE in Lifetime.
8. Annual manufacturing capacity is 10000 units, enjoy great popularity in the Middle East, India, Russia, Brazil, Mexico and so on.
9. OEM service offered, Technical Help to Importers, Design Service Offered, Buyer Label Offered
10. Quick delivery time: 1-2 weeks after deposit arrival.
Packaging & Delivery:
Two chisels, a netrogen device with a netrogen bottle, a gauge, all hoses and a maintenance tool box with all necessary tools
Fumigation-free Plywood Boxes For Export
Any need, please contact Mr Paul
Specification:

	TRB680	TRB850	TRB1000	TRB1350	TRB1400	TRB1550	TRB1650	TRB1750
Weight (kg)	258	557	753	1653	1774	2569	2752	3912
Length (mm)	1415	1735	1994	2367	2414	2760	2816	3176
Required oil Flow (L/min)	40~70	60~100	80~110	120~150	130~1800	180~240	200~260	210~290
Working pressure (kgf/cm2)	110~140	130~1640	150~170	160~180	160~180	160~180	160~180	160~180
impact rate	500~900	400~800	350~700	400~800	350~500	300~450	250~400	200~350
Hose Diameter (In)	0.5	0.75	0.75	1	1	1	1.2	1.2
Chisel Diameter (mm)	68	85	100	135	140	155	165	175
Chisel Length (mm)	700	900	1000	1300	1300	1500	1600	1600
