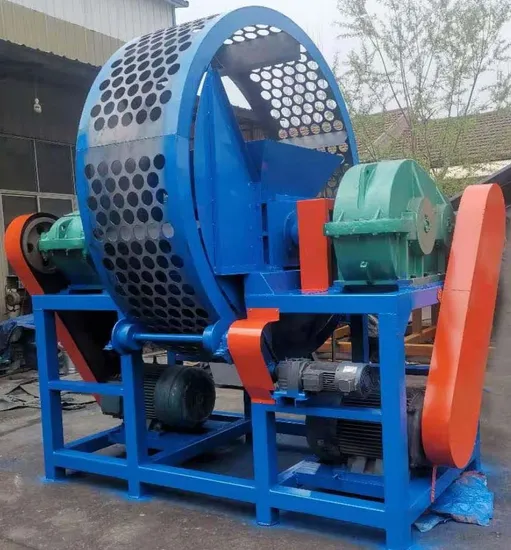

China High Quality Tire Recycling Crusher Machine Tire Shredder for Rubber Powder

Product Description

China High Quality Tire Recycling Crusher Machine Tire Shredder For Rubber Powder
Product Description
Equipment Summary
Introduction: Waste Tire Shredder / Rubber Crusher / Used Tire Recycling Machine is the preprocessing equipment, the pre-sorted material to be chopped is fed into the two shafts whose rotors are moving slowly in opposite directions (therefore dust and noise free).
Application: Tire recycling industry. (breaking whole tires to rubber block 50*50mm)
Feature: 1.The machine is suitable to process very big size of material, such as big jar and plastic board and and complete set of household appliances and other pe pp pet big bottle and wood and tire and pressing plastic film.2.The machine with big feeding mouth, it can put the big product freely.3.The rotary blade and cutting blade and blade edge with special design, it can get very high efficiency and high capacity.4.The machine is control by PLC system, the blade can rotated in opposite direction ,and it also can close automatic ifsomething unexpected happen, with very high safety service.5.The machine running slowly with low noise and low dusty.6.Their assistant blades are refined by forging and milling process and their main blades are made of special alloy steel with high strength and strong anti-wear.7.The shredding chamber is closely mated with the left-hand drive. The power will be effectively transmitted to the cutter shaft. The cutter consists of blade and hook(s).8.The function of hooks is to catch tires, Anti-wear and corrosion proof hard alloy is built-up welded on the working face of the cutter.9.The shredding chamber is a combined structure and the cutter shaft adopts rolling bearings, which is convenient for both installation and maintenance. Product Parameters Technical specification:

Type	LP-600 / LP-800	LP- 1200	LP- 1300
Cracking chamber length	600mm / 800mm	1200mm	1300mm
Blade size	Φ350mm*30mm Φ350mm*40mm/	Φ450mm*50mm Φ450mm*40mm	Φ500×50mm Φ550×50mm
Blade quantity	20pcs	24pcs / 26pcs	26pcs
Blade Rotating Speed	20r/min	20r/min	19r/min
Main Motor	37kw*2 / 55kw*2	75Kw*2 / 90Kw*2	110Kw*2 / 132Kw*2 / 160Kw*2
Feeding	Tires strips/rubber or plastic products	Car tire or cut truck tire or passenger bus tire (removing tire bead ring)	≤Φ1200 waste all-steel radial tire (removing tread ring)
Sieve pore size	Around 50mm*50mm	Around 50mm*50mm
Production capacity	1ton/hour	2 tons/hour	4tons/hour

More Products
Customers Feeback
Customers Show Company Profile Qingdao Libang Industry Products Co.,Ltd is a professional provider of rubber machine.
Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, extruder, tire reclaimed rubber machines, butyl reclaimed rubber machines, EPDM reclaimed rubber machines, rubber powder machines, and so on. We enjoy good reputation with reasonable price, best quality and good delivery. And we sincerely welcome clients from home and abroad to establish long and steady business relations and develop domestic and international market jointly on the base of equality and mutual benefit. FAQ Q1. WHO ARE YOU?
A: We are Professional Provider of Rubber Machine in China for many years.
Q2. ARE YOU A COMPREHENSIVE SUPPLIER FOR RUBBER&PLASTIC MACHINE?
A: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3. HOW ABOUT THE QUALITY CONTROL IN YOUR FACTORY?
A: We have the SOP (Standard Operation Procedure) and all the production steps must follow up this SOP.
Q4. WHAT ABOUT THE AFTER-SERVICE? WILL YOU SEND YOUR ENGINEER TO MY COUNTRY TO HELP COMMISSION AND INSTALL THE MACHINE?
A: Surely, we have many experienced technical engineers for overseas service, they would help you install the machine and support training to workers.
Q5. WHAT IS THE DELIVERY TIME OF THE MACHINE?
A: Actually, the delivery time of the machines is dependent on the machine options. Normally, the delivery time of standard machine could be within 10-60 days.
Q6. WHAT IS THE WARRANTY OF THE MACHINE?
A: The whole machine's warranty period is 12 months and spare parts will be depended.
