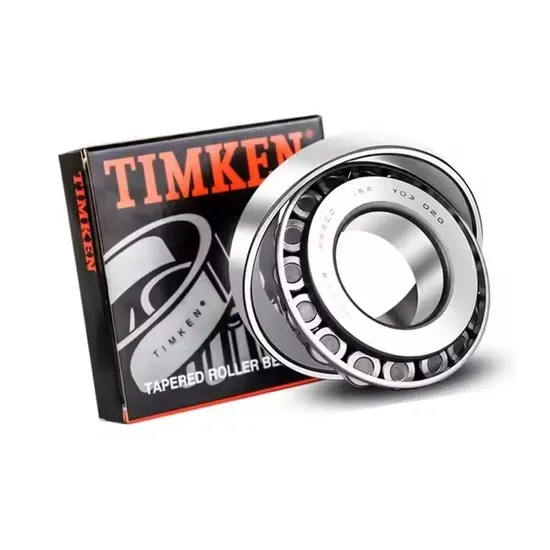

High Quality High Precision Availble Auto Taper Roller Bearing Hm803149 Hm803110 Hm803112

Product Description

Product DescriptionHigh Quality High Precision Availble Auto Taper Roller Bearing HM803149 HM803110 HM803112 Tapered roller bearings are separated bearings, and the inner and outer rings of the bearings are equipped with tapered raceways. This kind of bearing is divided into single row, double row and four row tapered roller bearings and other different structural types according to the number of rows of rollers installed. Single-row tapered roller bearings can withstand radial loads and axial loads in a single direction. When the bearing bears the radial load, an axial component force will be generated, so it is necessary to balance it with another bearing that can withstand the axial force in the opposite directionTapered roller bearing refers to the radial thrust type rolling bearing whose rolling body is a tapered roller.
There are small cone angles and large cone angles. The small cone Angle mainly bears the radial and axial combined loads mainly based on radial loads, often used in double, reverse installation, the inner and outer seat rings can be installed respectively, and the radial and axial clearance can be adjusted during installation and use. The large cone Angle mainly bears axial and radial combined loads based on axial loads, and is generally not used to bear pure axial loads alone, but can be used to bear pure radial loads when it is configured (the same name is relatively installed).
Tapered roller bearings mainly bear radial and axial combined loads. The bearing capacity depends on the raceway Angle of the outer ring, and the greater the Angle, the greater the bearing capacity. This type of bearing is a separate type of bearing, which is divided into single row, double row and four row tapered roller bearings according to the number of rows of rolling elements in the bearing. Single-row tapered roller bearing clearance needs to be adjusted by the user during installation; Double-row and four-row tapered roller bearing clearance has been set according to user requirements when the product is delivered, and does not require user adjustment. Detailed Photos
Product ParametersTapered roller bearings have a conical inner ring and an outer ring raceway, and the tapered roller is arranged between the two. The projected lines of all conical surfaces meet at the same point on the bearing axis. This design makes tapered roller bearings particularly suitable for bearing combined (radial and axial) loads. The axial load capacity of the bearing is mostly determined by the contact Angle α. The larger the alpha Angle, the higher the axial load capacity. The Angle size is expressed by calculating coefficient e. The greater the e value, the greater the contact Angle, and the greater the applicability of the bearing to bear the axial load. Tapred roller bearings are usually of separate type, that is, a tapered inner ring assembly consisting of an inner ring with a roller and a cage assembly can be mounted separately from the tapered outer ring (outer ring).

					Tangent of the contact Angle	The inner ring locates the step	Outer ring positioning step	Basic rated dynamic load	Basic static load rating	Limit speed (fat)	Limit speed (oil)	Bearing No.
d	D	T	B	C		r	da	Da	Cr	C0r	nlim		nlim
/mm	/mm	/mm	/mm	/mm		/mm	/mm	/mm	/kN	/kN	/r•min-1		/r•min-1
15	35	11.75	11	10	0.6	0.23	20	30	-	-	-	-	30202
15	42	14.25	13	11	1	0.19	21	36	22.8	21.5	9000	12000	30302
17	40	13.25	12	11	1	0.23	23	34	20.8	21.8	9000	12000	30203
17	40	17.25	16	14	1	0.21	23	34	-	-	-	-	32203
17	47	15.25	14	12	1	0.19	23	41	28.2	27.2	8500	11000	30303
17	47	20.25	19	16	1	0.19	23	41	35.2	36.2	8500	11000	32303
20	37	12	12	9	0.3	0.21	22.4	34.6	13.2	17.5	9500	13000	32904
20	42	15	15	12	0.6	0.25	25	37	25	28.2	8500	11000	32004
20	47	15.25	14	12	1	0.23	26	41	28.2	30.5	8000	10000	30204
20	47	19.25	18	15	1	0.22	26	41	-	-	-	-	32204
20	52	16.25	15	13	1.5	0.2	29	43	33	33.2	7500	9500	30304
20	52	22.25	21	18	1.5	0.2	29	43	42.8	46.2	7500	9500	32304
22	40	12	12	9	0.3	0.21	24.4	37.6	15	20	8500	11000	329/22
22	44	15	15	11.5	0.6	0.26	27	39	26	30.2	8000	10000	320/22
25	42	12	12	9	0.3	0.21	27.4	39.6	16	21	6300	10000	32905
25	47	15	15	11.5	0.6	0.29	30	42	28	34	7500	9500	32005
25	47	17	17	14	0.6	0.19	30	42	32.5	42.5	7500	9500	33005
25	52	16.25	15	13	1	0.25	31	46	32.2	37	7000	9000	30205
25	52	19.25	18	16	1	0.24	31	46	-	-	-	-	32205
25	52	22	22	18	1	0.23	31	46	47	55.8	7000	9000	33205
25	62	18.25	17	15	1.5	0.2	34	53	46.8	48	6300	8000	30305
25	62	18.25	17	13	1.5	0.55	34	53	40.5	46	6300	8000	31305
25	62	25.25	24	20	1.5	0.2	34	53	61.5	68.8	6300	8000	32305
28	45	12	12	9	0.3	0.21	30.4	42.6	16.8	22.8	7500	9500	329/28
28	52	16	16	12	1	0.29	34	46	31.5	40.5	6700	8500	320/28
28	58	24	24	19	1	0.23	34	52	58	68.2	6300	8000	332/28
30	47	12	12	9	0.3	0.21	32.4	44.6	17	23.2	7000	9000	32906
30	55	17	17	13	1	0.29	36	49	35.8	46.8	6300	8000	32006
30	55	20	20	16	1	0.19	36	49	43.8	58.8	6300	8000	33006
30	62	17.25	16	14	1	0.25	36	56	43.2	50.5	6000	7500	30206
30	62	21.25	20	17	1	0.25	36	56	51.8	63.8	6000	7500	32206
30	62	25	25	19.5	1	0.23	36	56	63.8	75.5	6000	7500	33206
30	72	20.75	19	16	1.5	0.21	39	63	59	63	5600	7000	30306
30	72	20.75	19	14	1.5	0.55	39	63	52.5	60.5	5600	7000	31306
30	72	28.75	27	23	1.5	0.21	39	63	81.5	96.5	5600	7000	32306
32	52	14	14	10	0.6	0.21	37	47	23.8	32.5	6300	8000	329/32
32	58	17	17	13	1	0.3	38	52	36.5	49.2	6000	7500	320/32
32	65	18.25	17	15	1	0.25	38	59	-	-	-	-	302/32
32	65	26	26	20.5	1	0.23	38	59	68.8	82.2	5600	7000	332/32
35	55	14	14	11.5	0.6	0.19	40	50	25.8	34.8	6000	7500	32907
35	62	18	18	14	1	0.3	41	56	43.2	59.2	5600	7000	32007
35	62	21	21	17	1	0.2	41	56	46.8	63.2	5600	7000	33007
35	72	24.25	23	19	1.5	0.25	44	63	70.5	89.5	5300	6700	32207
35	72	28	28	22	1.5	0.24	44	63	82.5	102	5300	6700	33207
35	72	18.25	17	15	1.5	0.25	44	63	54.2	63.5	5300	6700	30207
35	80	22.75	21	18	2	0.21	45	70	75.2	82.5	5000	6300	30307
35	80	22.75	21	15	2	0.55	45	70	65.8	76.8	5000	6300	31307
35	80	32.75	31	25	2	0.21	45	70	99	118	5000	6300	32307
40	62	15	15	12	0.6	0.19	45	57	31.5	46	5600	7000	32908
40	68	19	19	14.5	1	0.26	46	62	51.8	71	5300	6700	32008
40	68	22	22	18	1	0.19	46	62	60.2	79.5	5300	6700	33008
40	75	26	26	20.5	1.5	0.24	49	66	84.8	110	5000	6300	33108
40	80	19.75	18	16	1.5	0.25	49	71	63	74	5000	6300	30208
40	80	24.75	23	19	1.5	0.25	49	71	77.8	97.2	5000	6300	32208
40	80	32	32	25	1.5	0.24	49	71	105	135	5000	6300	33208
40	90	25.25	23	20	2	0.23	50	80	90.8	108	4500	5600	30308
40	90	25.25	23	17	2	0.55	50	80	81.5	96.5	4500	5600	31308
40	90	35.25	33	27	2	0.23	50	80	115	148	4500	5600	32308
45	68	15	15	12	0.6	0.21	50	63	32	48.5	5300	6700	32909
45	75	20	20	15.5	0.6	0.26	50	70	58.5	81.5	5000	6300	32009
45	75	24	24	19	1	0.2	51	69	72.5	100	5000	6300	33009
45	80	26	26	20.5	1.5	0.26	54	71	87	118	4500	5600	33109
45	85	20.75	19	16	1.5	0.27	54	76	67.8	83.5	4500	5600	30209
45	85	24.75	23	19	1.5	0.27	54	76	80.8	105	4500	5600	32209
45	85	32	32	25	1.5	0.26	54	76	110	145	4500	5600	33209
45	100	27.25	25	22	2	0.23	55	90	108	130	4000	5000	30309
45	100	27.25	25	18	2	0.55	55	90	95.5	115	4000	5000	31309
45	100	38.25	36	30	2	0.23	55	90	145	188	4000	5000	32309
50	72	15	15	12	0.6	0.23	55	67	36.8	56	5000	6300	32910
50	80	20	20	15.5	1	0.28	56	74	61	89	4500	5600	32010
50	80	24	24	19	1	0.21	56	74	76.8	110	4500	5600	33010
50	85	26	26	20	1.5	0.27	59	76	89.2	125	4300	5300	33110
50	90	21.75	20	17	1.5	0.28	59	81	73.2	92	4300	5300	30210
50	90	24.75	23	19	1.5	0.28	59	81	82.8	108	4300	5300	32210
50	90	32	32	24.5	1.5	0.28	59	81	112	155	4300	5300	33210
50	110	29.25	27	23	2.5	0.23	62	98	130	158	3800	4800	30310
50	110	29.25	27	19	2.5	0.55	62	98	108	128	3800	4800	31310
50	110	42.25	40	33	2.5	0.23	62	98	178	235	3800	4800	32310
55	80	17	17	14	1	0.21	61	74	41.5	66.8	4800	6000	32911
55	90	23	23	17.5	1.5	0.27	64	81	80.2	118	4000	5000	32011
55	90	27	27	21	1.5	0.21	64	81	94.8	145	4000	5000	33011
55	95	30	30	23	1.5	0.25	64	86	115	165	3800	4800	33111
55	100	22.75	21	18	2	0.27	65	90	90.8	115	3800	4800	30211
55	100	26.75	25	21	2	0.27	65	90	108	142	3800	4800	32211
55	100	35	35	27	2	0.27	65	90	142	198	3800	4800	33211
55	120	31.5	29	25	2.5	0.23	67	108	152	188	3400	4300	30311
55	120	31.5	29	21	2.5	0.55	67	108	130	158	3400	4300	31311
55	120	45.5	43	35	2.5	0.23	67	108	202	270	3400	4300	32311
60	85	17	17	14	1	0.22	66	79	46	73	4000	5000	32912
60	95	23	23	17.5	1.5	0.29	69	86	81.8	122	3800	4800	32012
60	95	27	27	21	1.5	0.22	69	86	96.8	150	3800	4800	33012
60	100	30	30	23	1.5	0.26	69	91	118	172	3600	4500	33112
60	110	23.75	22	19	2	0.27	70	100	102	130	3600	4500	30212
60	110	29.75	28	24	2	0.27	70	100	132	180	3600	4500	32212
60	110	38	38	29	2	0.27	70	100	165	230	3600	4500	33212
60	130	33.5	31	26	3	0.23	74	116	170	210	3200	4000	30312
60	130	33.5	31	22	3	0.55	74	116	145	178	3200	4000	31312
60	130	48.5	46	37	3	0.23	74	116	228	302	3200	4000	32312
65	90	17	17	14	1	0.24	71	84	45.5	73.2	3800	4800	32913
65	100	23	23	17.5	1.5	0.31	74	91	82.8	128	3600	4500	32013
65	100	27	27	21	1.5	0.23	74	91	98	158	3600	4500	33013
65	110	34	34	26.5	1.5	0.27	74	101	142	220	3400	4300	33113
65	120	24.75	23	20	2	0.27	75	110	120	152	3200	4000	30213
65	120	32.75	31	27	2	0.27	75	110	160	222	3200	4000	32213
65	120	41	41	32	2	0.26	75	110	202	282	3200	4000	33213
65	140	36	33	28	3	0.23	79	126	195	242	2800	3600	30313
65	140	36	33	23	3	0.55	79	126	165	202	2800	3600	31313
65	140	51	48	39	3	0.23	79	126	260	350	2800	3600	32313
70	100	20	20	16	1	0.21	76	94	70.8	115	3600	4500	32914
70	110	25	25	19	1.5	0.29	79	101	105	160	3400	4300	32014
70	110	31	31	25.5	1.5	0.19	79	101	135	220	3400	4300	33014
70	120	37	37	29	2	0.25	80	110	172	268	3200	4000	33114
70	125	26.25	24	21	2	0.28	80	115	132	175	3000	3800	30214
70	125	33.25	31	27	2	0.28	80	115	168	238	3000	3800	32214
70	125	41	41	32	2	0.27	80	115	208	298	3000	3800	33214
70	150	38	35	30	3	0.23	84	136	218	272	2600	3400	30314
70	150	38	35	25	3	0.55	84	136	188	230	2600	3400	31314
70	150	54	51	42	3	0.23	84	136	298	408	2600	3400	32314
75	105	20	20	16	1	0.22	81	99	78.2	125	3400	4300	32915
75	115	25	25	19	1.5	0.31	84	106	102	160	3200	4000	32015
75	115	31	31	25.5	1.5	0.2	84	106	132	220	3200	4000	33015
75	125	37	37	29	2	0.26	85	115	175	280	3000	3800	33115
75	130	27.25	25	22	2	0.29	85	120	138	185	2800	3600	30215
75	130	33.25	31	27	2	0.29	85	120	170	242	2800	3600	32215
75	130	41	41	31	2	0.29	85	120	208	300	2800	3600	33215
75	160	40	37	31	3	0.23	89	146	252	318	2400	3200	30315
75	160	40	37	26	3	0.55	89	146	208	258	2400	3200	31315
75	160	58	55	45	3	0.23	89	146	348	482	2400	3200	32315
80	110	20	20	16	1	0.23	86	104	79.2	128	3200	4000	32916
80	125	29	29	22	1.5	0.28	89	116	140	220	3000	3800	32016
80	125	36	36	29.5	1.5	0.19	89	116	182	305	3000	3800	33016
80	130	37	37	29	2	0.28	90	120	180	292	2800	3600	33116
80	140	28.25	26	22	2.5	0.28	92	128	160	212	2600	3400	30216
80	140	35.25	33	28	2.5	0.28	92	128	198	278	2600	3400	32216
80	140	46	46	35	2.5	0.28	92	128	245	362	2600	3400	33216
80	170	42.5	39	33	3	0.23	94	156	278	352	2200	3000	30316
80	170	42.5	39	27	3	0.55	94	156	230	288	2200	3000	31316
80	170	61.5	58	48	3	0.23	94	156	388	542	2200	3000	32316
85	120	23	23	18	1.5	0.22	94	111	96.8	165	3400	3800	32917
85	130	29	29	22	1.5	0.29	94	121	140	220	2800	3600	32017
85	130	36	36	29.5	1.5	0.19	94	121	180	305	2800	3600	33017
85	140	41	41	32	2.5	0.27	97	128	215	355	2600	3400	33117
85	150	30.5	28	24	2.5	0.28	97	138	178	238	2400	3200	30217
85	150	38.5	36	30	2.5	0.28	97	138	228	325	2400	3200	32217
85	150	49	49	37	2.5	0.28	97	138	282	415	2400	3200	33217
85	180	44.5	41	34	4	0.23	103	162	305	388	2000	2800	30317
85	180	44.5	41	28	4	0.55	103	162	255	318	2000	2800	31317
85	180	63.5	60	49	4	0.23	103	162	422	592	2000	2800	32317
90	125	23	23	18	1.5	0.23	99	116	95.8	165	3200	3600	32918
90	140	32	32	24	2	0.28	100	130	170	270	2600	3400	32018
90	140	39	39	32.5	2	0.18	100	130	232	388	2600	3400	33018

Features:
Simple internal structure, low friction and high limiting speed, mainly bear radial direction load. Deep groove ball bearing can obtain angular contact capability when increasing radial clearance, to take combined load of both axial and radial directions. When the thrust ball bearing is not appropriate for some high speed applications, deep groove ball bearing may be an alternative choice to afford axial loads.
Application introduction:
Tapered roller bearings are widely used in automobile, rolling mill, mining, metallurgy, plastic machinery and other industries.
Giant bearings are widely used in automobiles, motorcycles, motor, electric tools, textile machinery,machine tools, construction equipment and transmission equipment, and other fields.
Giant bearings also are widely used in household appliances and office equipment, such as refrigerators,air conditioners, washing machines, microwave ovens, lampblack machine, vacuum cleaners, sewing machines, massage chair and fitness equipment and other fields.
How to expand the lifetime?
1. The installation is correct, that affects precision, life, performance. And fill the bearing with lubricant after installation.
2. Don't allow strong impact, such as hammer striking, transfer roller pressure
3. Use the accurate installation tool, avoid to use cloth kind and short fibers
4. Lubricate the bearing to avoid rust with high quality mineral oil, especially in summer
5. General inspection, such as the surrounding temperature, vibrate, noise inspection
6. Keep bearing cleaning from dirt, dust, pollutant, moisture.
7. Bearing should not be ultra cooled.
