SS304 Screen Basket Inflow Pressure Screen for Paper Pulp Machine
| US$10,000.00-17,000.00 | 1 Square Meter (MOQ) |
Basic Info.
Model NO.
Pressure Screen
Automation
Automatic
Certification
CE
Customized
Customized
Condition
New
After-sales Service
12 Months
Screen Area
0.6-5.7 M2
Screen Basket Type
Slot or Hole
Flow Capacity
35-650
Power
30-250 Kw
Screen Basket Hole Dia
1.2-3mm
Screen Basket Slot
0.1-0.5mm
Inlet Consistency
0.3-3%
Inlet Pressure
0.1-0.25MPa
Capacity
15~500 T/D
Transport Package
Wooden Box
Specification
0.6/0.8/1.2/2/3.2 M2
Trademark
HUATAO
Origin
China
HS Code
84399900
Production Capacity
15PC/1month
Product Description

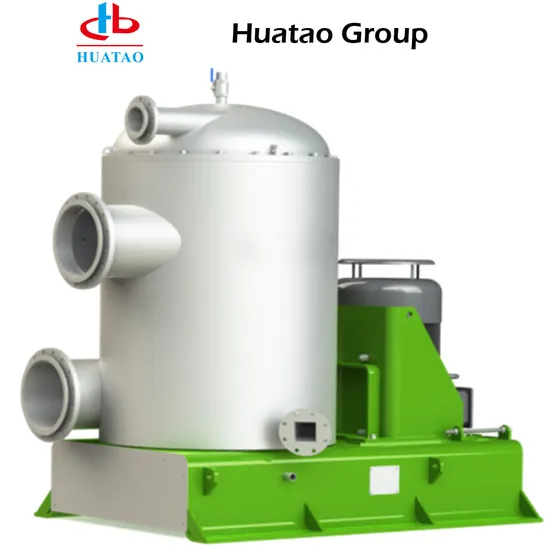

SS304 Screen Basket Inflow Pressure Screen For Paper Pulp Machine
Product Description
1. The pressure screen can make light impurities and the air in the stock naturally go up to the outlet, while the heavy impurities drop in the bottom and then be discharged, which greatly reduces the friction of the rotor and screen frame.
2. The utilization of upflow structure design eliminates the turbulence that may cause the vibration of the screen. In addition, the upflow design can also prevent impurities from mixing with the stock.
3. The pulp screen is known for large production capacity and wide range of application. It is applicable to stock of various consistencies, like medium consistency stock (2%-3.5%) and low consistency stock (0.5%~1.2%).
4. High screening efficiency and low power consumption.
Product Parameters
| Type | HT81 | HT82 | HT83 | HT84 | HT85 | HT86 |
| Screen Area: m2 | 0.8 | 1.5 | 2.5 | 3.5 | 4.5 | 6 |
| Screen consistency: % | 0.8-2.0 | |||||
| Range of the screen hole: mm | 1.2-1.8 | |||||
| Range of the screen slot: mm | 0.10-0.25 | |||||
| Flow rate: L/s | 35-80 | 60-140 | 110-250 | 150-340 | 200-450 | 280-660 |
| Power of motor: kw | 30 | 45 | 55 | 75 | 90 | 132 |
