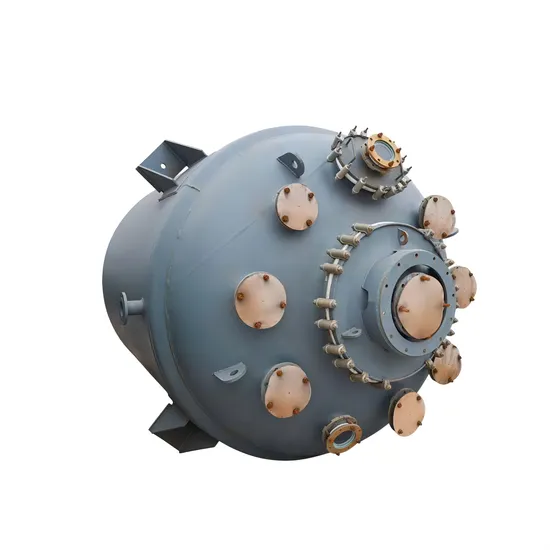

Chemical Equipment Open Glass Lined Storage Tank /Open Distillation Reaction Mixing Tank 8000L

Product Description

Product specification: 50L-8000L
Product standard: GB25025-2010, GB/T 150-2011
Product use: It is an essential and important infrastructure for petroleum, chemical, grain and oil, food, fire protection, transportation, metallurgy, national defense and other industries, and our economic life is always inseparable from large and small storage tanks. Standard open glass lined tank (tank) specifications: 50L, 100L, 200L, 300L, 400L, 500L, 800L, 1000L, 1250L, 1500L, 2000L, 3000L, 4000L, 5000L, 6300L, 8000L, 16000L, etc., can also be non-standard open glass lined storage tank according to user needs.

Nominal volume VN/L	Actua volume V/L	Diameter D/mm	Nominal diameter of pipe orifice DN							Liquid level gauge Nominal length *quantity
			a/mm Inlet	b/mm Outlet	c/mm Spare port	d/mm Spare port	e1-2/mm Liquid level gauge	e3-4/mm Liquid level gauge	Hand(Man) hole m/mm
50	58.6	400	65	65	65	65	/	/	100	/
100	110	500	65	65	65	65	50	/	100	600×1
200	218	600	65	65	65	65	65	/	125	800×1
300	324	700	80	80	65	65	65	/	125	900×1
400	469	800	80	80	80	65	65	/	125	1000×1
500	590	800	80	80	80	65	65	/	150	1200×1
800	877	1000	80	80	80	80	65	/	150	1200×1
1000	1112	1000	80	80	80	80	65	/	150	1500×1
1250	1357	1200	80	80	80	80	65	/	400×300	1300×1
1500	1640	1200	100	100	80	80	65	/	400×300	1500×1
2000	2179	1300	100	100	80	80	65	/	400×300	1700×1
3000	3153	1450	125	125	100	100	65	/	400×300	2000×1
4000	4336	1600	125	125	100	100	65	65	400×300	1200×2
5000	5542	1600	125	125	100	100	65	65	400×300	1500×2
6300	7100	1750	125	125	100	100	65	65	400×300	1500×2
8000	8800	1750	125	125	100	100	65	65	400×300	1900×2
Nominal volume VN/L	Size
	H0/mm	H1/mm	H2/mm	H3/mm	H4/mm	H5/mm	D1/mm	D2/mm	D3/mm	n~D4/mm
50	957	500	54	/	/	/	240	300	/	6-φ20
100	1068	600	67	185	600×1	/	300	380	360	6-φ20
200	1289	820	80	213	800×1	/	360	450	430	6-φ20
300	1371	900	94	180	900×1	/	420	530	530	6-φ20
400	1472	100	107	170	1000×1	/	480	600	630	6-φ20
500	1712	1240	107	210	1200×1	/	480	600	730	6-φ20
800	1720	1200	134	200	1200×1	/	600	750	608	6-φ20
1000	2010	1500	134	190	1500×1	/	600	750	608	6-φ20
1250	2058	1300	410	180	1300×1	/	720	900	808	6-φ20
1500	2319	1550	410	230	1500×1	/	720	900	808	6-φ20
2000	2589	1750	435	180	1700×1	/	780	1000	908	6-φ24
3000	2870	2030	473	200	2000×1	/	870	1100	1058	8-φ24
4000	3168	2290	520	210	1200×2	193	960	1250	1208	8-φ24
5000	3758	2890	520	210	1500×2	193	960	1250	1208	8-φ24
6300	3751	2800	557	200	1500×2	277	1050	1320	1200	8-φ24
8000	4451	3500	557	200	1900×2	368	1050	1320	1200	8-φ24

FAQ: Q1. Are you a factory or a trader? A1. We are a well-experienced Chinese company with 70 years of expertise and technology in manufacturing glass lined equipment. Our products including reactors, storage tanks, heat exchangers, and so on. If you want to visit the factory to inspect the goods, we are happy to provide you with any help. Q2. What is your delivery time? A2. We support FOB, CIF, CFR shipping methods. Usually, the delivery time for one device is 70 to 90 days, depending on the shipping method. Q3. How long is your warranty? A3. We promise to provide a one-year warranty for all products we currently sell. Q4. What payment methods do you accept? A4. We can accept T/T, L/C, D/P. The customer needs to pay 30% of the deposit in advance, and the remaining 70% of the payment is completed before delivery. Q5. Do you provide installation guidance or other after-sales service? A5. Yes, of course. Installation drawings and installation manuals are provided. If you are still unable to assemble, we have the professional engineer teams and will help you with voice or video contact. Q6. How do you pack and ship the equipment? A6. We offer sea, rail or combined transportation. At the same time, we also provide LCL (LCL), Full Container (FCL), Flat Rack (FR), Bulk and Express to ensure that the goods are safe and free from damage.
