High Performance Fixed Beam Frt130520 13m CNC Double Column Milling Machine CNC Gantry Machining Center

Product Description

Product Description

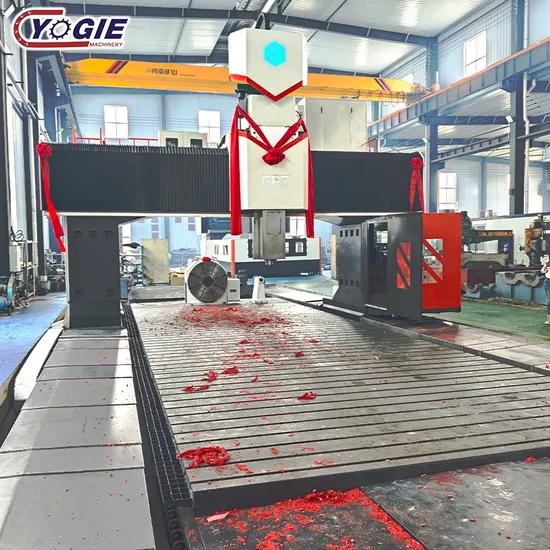

Henan Front Gantry Frame Integral Mobile Gantry Milling and Boring Machine. On the basis of inheriting the advantages of strong rigidity,symmetrical structure, and strong stability of the traditional gantry machine tool foundation frame, innovative design concepts are adopted. All products adopt PRO/E three-dimensional design, and the main structure of the machine tool adopts finite element analysis. By optimizing the reinforcement structure and distributing the quality reasonably, the whole machine has a heavy load, strong rigidity, good dynamic characteristics, meets the requirements of high-power and high-precision cutting, and is suitable for processing super large and ultra heavy parts.
MACHINE STRUCTURE
MACHINE PARTS CASTING
The bed, sliding seat and worktable are all made ofhigh-strength stress-free cast iron
HT300, molded with resin sand.The maximum load capacity ofthe worktable 15T/m^2
Rack and pinion transmission equipped with grating ruler
Guiderail:Two linear guide rail,one hardened rail

RAM & SPINDLE Taiwan Original Spindle 4000rpm/min Standard: Square Ram Structure

TAIWAN TOOL MAGAZINE 1.Taiwan OKADA arm type 24 tool magazine. 2.Tool change time only 3 seconds.

LUBRICATION SYSTEM Baton/Herg Automatic centralized lubrication device.

PNEUMATIC COMPONENTS Standard with AirTAC Pneumatic Components

AIR CONDITIONER with Industrial electrical cabinet air conditioner Cooling the electric box better.

IMPORTED ELECTRICAL COMPONENTS 1.with imported safetyelectrical components 2.quick plug as standard

control system Siemens/KND/FANUC

Product Parameters

Technical specification		FRT-SP10400	FRT-SP120450	FRT-SP150550	FRT-SP20650
Travel
XYZ axis travel (worklable left and right movement)	mm	10000/4350/1500	12000/4850/1500	15000/5850/2000	20000/6850/2000
Distance of spindle nose andworking table surface	mm	100-1600	500-2000	500-2500	500-2500
Gantry width	mm	4000	4500	5500	6500
Guide rail		Two linear guide rail,one hardened rail
Work Table
Table size	mm	10000X3500	12000X4000	15000X4800	20000X5800
The maximum load capacity of the worktable	T	15/m^2
Spindle
The spindle taper (model, sleeve diameter)		BT50
The spindle dimension	mm	195	220	230	260
Thespindle motor power	kw	45	55	65	70
Spindle speed	rpm	4000	4000	3500	3000
Accuracy
Precision of position	mm	0.02/1000
Accuracy of repeated position	mm	±0.015
Size
Netweight(approx.)	T	160	180	220	280
