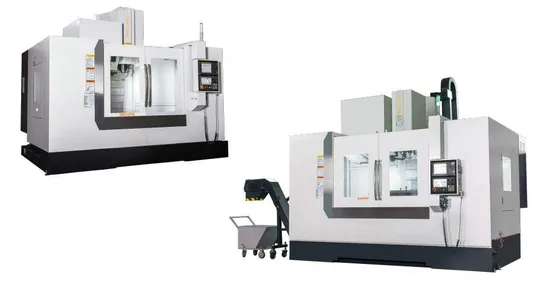

Vmc Big Size Aluminium Product Process, Machine Lathe

Product Description

Product Description



Product Parameters

		VMC1370	V13	SVB1570	SVD1570
Worktable size	mm	680*1500	680*1500	700*1600	700*1600
T T-slot size	mm	5-18*125	5-18*125	5-18*125	5-18*125
Max. load bearing of worktable	kg	800	800	1000	1000
3 axis Travel X/Y/Z	mm	1300/700/650	1300/700/650	1500/700/700	1500/700/700
Distance from column to spindle center	mm	762	762	766	766
Distance from table surface to spindle nose	mm	200-850	200-850	140-840	140-840
Spindle hole taper		BT40	BT40	BT40	BT40
Spindle power	kw	11/15	11/15	11/15	11/15
Max. spindle speed	rpm	10000	12000	10000	12000
Max. feed speed	mm/min	12000	12000	12000	12000
Rapid feed speed	m/min	36/36/24	36/36/24	24/24/24	24/24/24
Tool magazine capacity	T	24	24	24	24
Tool change time	S	2.5	2.5	2.5	2.5
Positioning accuracy	mm	0.01	0.01	0.01	0.01
Re-positioning accuracy	mm	0.005	0.005	0.005	0.005
Machine dimension	mm	3550*2800*2700	3550*2800*2700	3950*3300*3320	3950*3300*3320
Machine weight	kg	8000	8000	9800	9800

Company Profile
Who We Are?
Founded on March 30, 2016, HANMING aims to provide customers with excellent products and services and industrial complete equipment solutions.
HANMING has always been standing in the perspective of every customer to deal with problems and ensure the timely and efficient handling of problems. Our salesmen are experienced senior marketing engineers who have been working in the industry field for many years, and our inspectors are technical engineers, which ensure our professionalism. Our products are mainly metal cutting machine, metal forming machine and other industrial equipment.
What Do We Can Do?
The core competitiveness of HANMING is having a strict quality management system and a team that can provide excellent services. We are familiar with the machine tool industry in China and know the positioning of products in various factories. We will select the most suitable machine tools for customers and ensure that after the completion of the machine tool, we will send quality control team to each factory for inspection to ensure that the machines delivered to customers are high-quality products that have been inspected. Our inspectors are also after-sales service personnel to ensure that every after-sales service problem can be timely communicated with each factory and give timely feedback.
Our Aim:
Relying on the keen market insight, HANMING makes forward-looking decisions on the changeable market and actively deals with and overcomes the difficulties encountered by the enterprise in various periods. Today, a steady and pragmatic team leads Hanming forward to open up a new world in the industrial export industry.
