Metal Descaling Machine Deburring and De-Oxidizing Stainless Steel Wire Polishing and Grinding Machine

Metal Descaling Machine Deburring and De-Oxidizing Stainless Steel Wire Polishing and Grinding Machine

US$3,500.00-4,500.00 1 Set (MOQ)

Basic Info.

Model NO.
SR-DC
Certification
ISO, CE
Condition
New
Voltage
380V
Application
Metal Sheet
Power
3.95kw
Grinding Head Power
0.75kw
Adsorption Pressure
27kpa
Cantilever Operating Range
1200mm/360degree
Brush Size
162mm
Sand Size
150mm
Transport Package
Plywood Case Package
Trademark
SR-Tech
Origin
China
HS Code
8460902000
Production Capacity
1000 Sets Per Year

Packaging & Delivery

Package Size
121.00cm * 75.80cm * 57.00cm
Package Gross Weight
300.000kg

Product Description

Metal Descaling Machine Deburring And De-oxidizing Stainless Steel Wire Polishing And Grinding Machine

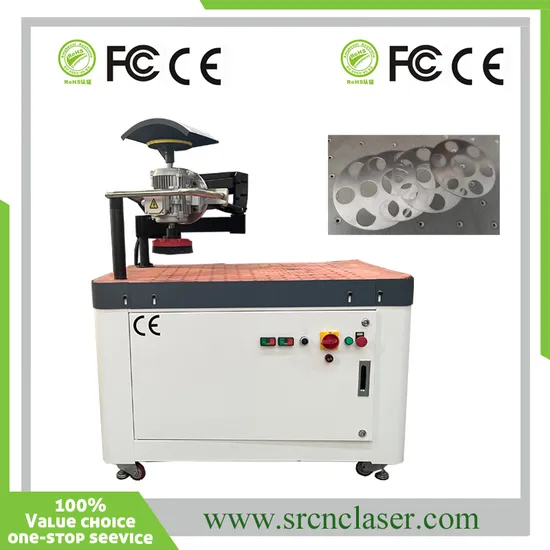

The deburring grinding machine is a manually operated, user-friendly deburring machine that is suitable for various machining processes such as grinding, deburring, edge rounding and polishing of metal surfaces. The swivel arm can rotate 180° and enables the simultaneous mounting of two machining discs. The machine is equipped with a vacuum system that fixes the workpiece on the
table.
Deburring: The sanding discs are used to grind off all burrs and come in different grit sizes.
Heavy slag removal: The brush with hammerheads is the optimal solution to hammer off the dross.
Laser oxide removal: The steel wire brushes scrape off the oxide skin of the sheet metal that is cut by fiber laser.
Edge rounding: The flap brushes grind the corners of the metal parts and thus giving a round edge.
Technical parameters
Model SRD-M
Power 3.95KW
Grinding Head Power 0.75KW
Adsorption Pressure 27Kpa
Cantilever Operating Range 1200mm/360°
Brush Size φ162mm
Sand Size φ150mm
Size Of Vacuum Adsorption Platform 295*295mm
Table Size 1200*750mm
Grinding Head 2

Main wearing parts

After Sales Service
Pre-sales service
Timely reply: products, price, technology, industry solutions & other aspects
Free sample service: any testing work can be satisfied here;
Service in sale
Timely updates: once the order confirmed, we will update you the machine processing every 7 days by videos or photos.
Quality and package gurantee: our team will test seriously your machine before package for more than 72 hours to make sure the machine in good condition. Multi package way to ensure you will receive a well complete machine.
After-sale service
1:free user manual and videos will be sent once the machine left our factory.
2:Customer Service :7*18H fast response from engineer team.
3: we will provide 2 years warranty for the whole machine, any parts damaged or needed, we will give a good solution or
reasonable price.
FAQ
Q: If we are interested in your machine, how do we choose?
A: Please tell me your requirements, then we can recommend the suitable machine to you.
Q: How about warranty?
A: 2 years quality guaranty. Lifetime technical support and consumables at the lowest price.
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas.
Q. What's your lead time?
A:Normal orders within 15 business days. Customized orders, 30-40 business days.
Q. What's your payment term?
A: 30% T/T deposit, the balance should be paid before delivery after inspection.
