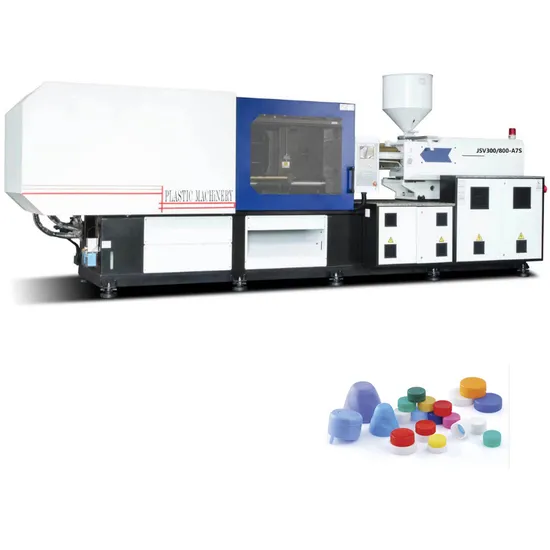

Maiwei Factory Plastic Cap Injection Molding Machine with Low Price

Product Description

Products Description
Distinctive Features of Our Injection Machine
1). Exceptional Power Efficiency: Achieve an impressive 30%-60% power savings.
2). Oil Conservation: Equipped with a high-performance filter device to extend the life of hydraulic oil.
3). Enhanced Speed: Boost performance capacity by 20% with an advanced variable displacement pump.
4). Optimized Temperature Control: Eliminate overheating, maintain lower oil temperatures, save on cooling water, and prolong the lifespan of sealing elements.
Product Paramenters

Model	UNIT	MW-140T			MW-170T			MW-220T			MW-258T			MW-300T			MW-368T
INJECTIONUNIT		A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C
Screw Diameter	mm	40	42	45	42	45	50	45	50	55	50	55	60	55	60	65	60	65	70
Screw L/D Ratio	L/D	21.8	20.8	19.5	23	21.5	19.5	23	21.6	19.6	23.1	21	19.3	22.9	21	19.4	23	22	20
Theoretical Shot Volume	cm3	238	263	302	232	381	471	443	548	663	501	606	721	808	961	1127	1000	1174	1362
Injection Weight	g	218	239	275	295	340	420	403	498	603	456	551	656	727	865	1015	910	1068	1240
Injection Pressure	Mpa	188	171	148	182	159	129	238	194	160	201	166	140	202	170	145	214	182	157
Screw Speed	r/min	0-220			0-220			0-190			0-300			0-176			0-167
CLAMPINGUNIT
Clamp Tonnage	KN	1400			1700			2200			2580			3000			3680
Space Between Tie Bars	mm	420×420			470x470			530x530			580x530			630x630			730x670
Max.mold Height	mm	450			510			540			550			660			680
Min.mold Height	mm	150			170			190			200			220			250
Toggle Stroke	mm	380			430			480			535			592			669
Ejector Number	KN	43			45			62			70			70			70
Ejector Stroke	mm	120			140			150			160			160			160
OTHERS
Pump Motor Power	KW	15			18.5			22			28.7			30			38
Heater Powre	KW	9.6			12			16			15			18.5			25
Machine Dimension	m	4.6x1.25x1.8			5.x1.35x2.1			5.6x1.6x2.1			5.8x1.4x2.1			6.1x1.7x2.3			7.5x1.92x2.2
Machine Weight	T	3.7			4.6			6.5			7			9			13.5

Packing and Shipping
Packaging:
Our stable wooden packaging is designed to shield the machine from impact and damage, while a wrapped plastic film safeguards against moisture and corrosion. This fumigation-free package ensures hassle-free customs clearance. Larger machines are securely fastened in containers without additional packaging.
Shipping: For LCL shipments, we collaborate with a trusted logistics team to swiftly and safely deliver the machine to the port. In the case of FCL, we expertly acquire containers and have skilled workers meticulously load them. We maintain professional, long-standing partnerships with forwarders to handle your shipments with precision and ease, aiming for seamless coordination with forwarders as per your requirements.
Company Profile
Maiwei is at the forefront of blow molding technology research, constantly accumulating expertise and refining equipment to deliver unparalleled stability, reduced energy consumption, and enhanced durability. Our diverse product range includes dairy product bottles, wine bottles, oil bottles, laundry detergent bottles, engine oil bottles, sprayers, hollow toys, and a wide array of other hollow plastic products. We go beyond merely selling equipment-we are dedicated to resolving your packaging blow molding challenges. Our machine boasts a broad application range and can be tailored with adjustable air source systems according to user demands. It is characterized by remarkable flexibility, low energy consumption, and high efficiency.
Exhibition
Certifications
FAQ
1.Q:Are you a factory or trading company? Where is your factory located? A: We are a factory,it is located in Huangyan,Taizhou city, Zhejiang Province, China.
2.Q:How about quality control in your factory? A: " Quality is the key point, do what customers needs."In the future, Maiwei will move towards more professional and deeper technical goals.
3.Q.What is your payment and delivery time? A:"The payment is 30% by T/T as down payment,70% by T/T before shipment.And the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 3-4 months.
4.Q.Do you provide any spare parts with the machine? A: Yes, MAIWEI will provide one set of standard spare parts to customers.
5.Q. What about the after-service? A:We offer over-all after sale service to meet customer's command including on-line consulting and off line technical support.
