Multifunction Universal Woodworking Combination Machine European Sicar 2 Works Combination Multifunction Universal Woodworking Machines

Product Description

1 Product Application
Function: Panel saw, Moulder, Mortiser, Surface planer and Thicknesser
2 Parameter

Type	ML353
Panel saw:
Main saw speed	4375rpm
Main saw diameter	300mm
Spindle diameter of main saw	30mm
Scoring saw speed	7000rpm
Scoring saw diameter	90mm
Spindle diameter of scoring saw	22mm
Motor power	2.2kw
Aluminium table size	1500x310mm
Moulder:
Spindle diameter	30mm
Max.tool diameter	160mm
Cutter block length	105mm
Cutter block vertical stroke	115mm
Rotation speed	4300/6000rpm
Motor power	2.2kw
Mortiser:
Working table	230×500mm
Longitudinal stroke	200mm
Cross stroke	100mm
Vertical stroke	60mm
Tool coupling diameter	16mm
Surface planer:
Working table	300×1500mm
Planer shaft diameter	70mm
Planer shaft rotation speed	5700rpm
Knives	3pcs
Work piece min.length	15mm
Infeed table max.adjustment	4mm
Thicknesser:
Working table	300×660mm
Work piece min.length	200mm
Max. removal thickness	5.5mm
Infeed speed	7m/min
Piece passage	220mm
Min.piece passage	4mm
Motor power	2.2kw
Total power	2.2X3kw
Overall dimensions	1720X2650X1360mm
Net weight	580kg

3,Some machine pictures for you

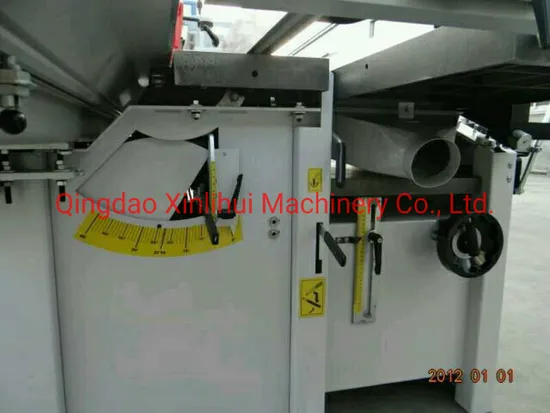

4,Detail pictures for you
Feature:
Functions including planer , thicknesser ,sawing ,morting, spindle moulder ,profiling .More compact frame structure design,top quality requirements for the products finishing
Tilting saw unit diameter 315mm with scoring saw blade ,max cutting depth 90mm
Aluminum alloy sliding table length 1800mm ,max cross cut width 650mm
New improved carriage : stronger carriage ,bigger carriage support
Four speed of spindle : 1400,3500,6000,8000r/min
