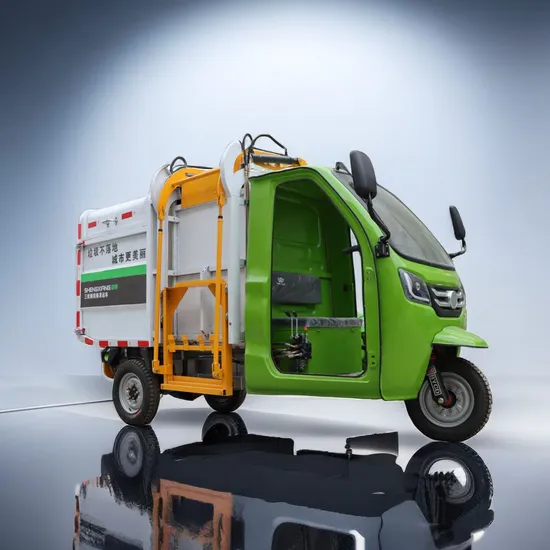

Hands-Free Style Garbage Truck Compactor Electric Cargo Tricycle with Roof

Product Description

Detailed Photos
All kinds of details perfectly clear display, three speed adjustable, easy to use Product Parameters

project		parameter
Technical matter number	Car size (long X party X high) mm	3400X1320X2140 (Si 50m)	normal voltage V	60v
	Vehicle size (long X party 2 high) mm	2000X1200X1250(±10m)	Walking motor, power	Maintenance-free brushless motor of 2500W
	Count the weight of kg	900	Hydraulic motor power	800T
	curb weight kg	910	Hydraulic oil pump noise	≤10041
	tread m	980	Vehicle lifting time	≤13
	wheel base m	2320	Turning bucket lifting time s (empty bucket)	≤15
	Vehicle effective volume #	≥2.5m²	Drop time s (empty bucket)	≤10
	speed per hour km/h	Low speed 15, high speed 35	Tyre size and requirements	Front 450-12, rear 500-12
	endurance mileage km	80km	Before the exhibition	Aggravated domestic and foreign oil pressure extension thread type iron reduction
	Single battery capacity, quantity	Lake brand type 180 water battery or optional maintenance-free battery, 5	Front steering casing structure	The axial shaft casing wall is 4 mm thick
Electric belt construction	Vehicle material structure	The front and rear and left and right side panels of the carriage are 1.5mm cold rolled plate, and the thickness of the bottom plate is 1.8mm.8 cm for waterproof sealing treatment
	Sealing mode and buckle	The car is equipped with advance, the back door is equipped with sealing tape to prevent sewage leakage, the buckle is adjustable tightening buckle
	Electric pull system	60V36 tube dual-mode intelligent control
	Control the way you walk	Turn the
	Driving mode	Direction handle
	brake system	The vehicle adopts the foot brake hydraulic brake system. Misoperate the power-off system
	brake mode	Foot ball hydraulic effect-manual parking
	Driving heavy materials and lamps	Steel structure, safety cab using mold stamping molding cold plate material. Front integrated song into LED headlights, injection molding instrument bench. With windshield wiper, warning light, cab foot pedal with leather board, flat pedal.
	Cab structure	Overall ram cab " optional cab door).
	Car door, wing benefit	The split type back door can be opened 270° upward, with a side door on one side of the bucket flip, and the lid is 1.2mm cold rolled plate. The opening mode of the upper cover is the side of the bucket pper, and the double adjustment lock is adopted with the door.
	Harness assembly line mode	High and low voltage double line slightly: high temperature line high voltage 10 square, low voltage 1 square
	Drive young bridge	Using load without chain full suspension belt high and low speed truck type rear bridge: large diameter cart drum, diameter 30mm thick half shaft, hydraulic drum type chop car.
	The rear suspension	Two sets of main and auxiliary spring steel are used. Single group of 11 pieces, with auxiliary spring support, greatly improve the load capacity.
	Oil pipe layout	Steel high pressure tubing and hose are used on the bucket track and fixed with a special pipe clip
The fine institutions	Limit mode of the bucket device	The bucket per falls to the bed limited pin.
	hydraulic control valve	The micro-switch works synchronously with the oil pump, and the control valve is installed on the right side bucket in the cab.
	Hydraulic control valve control mode	The hydraulic control valve with linkage switch works synchronously with the oil pump,
	Bucbucket rail material and structure	The main track is the thickened steel pipe. The barrel guide wheel has-needle roller bearing.
	Fixed mode of the bucket turning device	The bucket track is fixed on the carriage, and the bucket and the turning mechanism and the carriage are connected by separate speed
	Turn over the bucket device	Upper type double cylinder, with lifting type 10m iron plate symmetrical hanger. Turn the bucket Angle 138'to make sure the garbage is clean.
	Hanging bucket requirements	Supporting with gb 120L and 240-liter trash cans,
	Hang the bucket to cover the pull rod	Is an adjustable and fixed type.
	Turn over the bucket machine citrate	The outer diameter of the large shaft 34m inner diameter 24m seamless steel pipe shaft, the large shaft support pressure cover is the national standard 6 # sentiment steel
	Turn over the barrel boom machine	There is an anti-deformation protection device, and the upper and lower end of the boom fixed pin shaft is of 8.8 level.
	Hydraulic power unit	Connect with 60V DC motor and oil pump integrated.
	The frame material	The girder adopts 80*40*3.5mm rectangular tube, and uses cathode electrophoresis to prevent the treatment.
	Maximum recall slope	≥15°.
	The mode of the battery pack	The bucket pper is placed on the left, with a waterproof cover plate above the battery pack.
	Types of cylinder configuration	The bucket flip machine uses single stroke double cylinder, and the car lifts use single stroke one-way thickened oil cylinder.
	Layout mode of the oil pipeline road	Layranged on the side of the frame, not on the frame bed surface, to prevent some foreign body on the surface,
