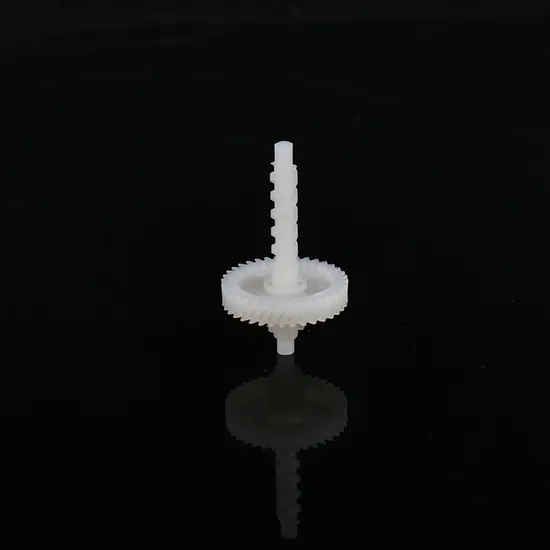

Custom Plastic Moulds and Injection Moulds for Plastic Worm Gears / Mirror Steering Parts / Door Lock Internal Parts / Plastic Linkage Shafts

Product Description

Product Description
Custom Gear Mold Reference Project

Plastic Materials	POM, PA66, PA66+GF, PEEK,...etc.
Other materials	Steel, copper, other applicable metals.
Quality	RoSH and SGS standard
Size	Molds and products according to your 2D and 3D drawing
Color,Quantity,Unit price,Tooling cost,Tooling size	To be discussed
Package:	Standard exported Wooden box packed, Fumigation process(upon required)
Mold Building Lead Time:	T0, 15-25 Working days, Part measurement report (upon required)
Experience:	13+ years experience in plastic injection mold making and plastic prouducts produce.
To be discussed	Applicable mold types, product appearance requirements, hot and cold runner systems, injection molding process requirements, interchangeable core fittings ...... etc.
Mould Base:	Hasco Standard, European Standard, World Standard
Mould Base Material:	LKM, FUTA, HASCO, DME,...etc. Or as per Customer's Requirment.
Surface Finish:	High gloss polishing,Frosted (upon required)
Cavity/Core Steel:	NAK80,P20, 2311, H13, 2344, Starvax 420, 236, AdC3, S136, 2312, 2379, 2316, 2083 , 2767 ...etc.
Hot/ Cold Runner	INCOE, YDDO, HASCO, DME, MoldMaster, Masterflow, Mastip, Taiwan made brand...etc.
Mould Life:	5,000 to 1,000,000 Shots. (According to your working environment.)
Design & Program Softwares:	CAD, CAM, CAE, Pro-E, UG, Soild works, Moldflow, CATIA....etc.
Export Country:	Europe, America, Australian, UK, Canada, France, Germany, Italy...etc.:
Our Advantage	Free Product 3D Design and Mould Structure Design
	Strict Quality Control
	Reasonable Price&Good After-Sales Service
	On Time Delivery
	Free replacement parts

Gear mould

Gear assembly application

Scope of application
The products are used in various industries such as micro motors, electronic products, auto parts, household appliances, office supplies, toys, handicrafts, etc. Different gear combinations are used in products such as car rearview mirrors, headlight adjusters, timers, micro motors, reducers, printers, fax machines, cameras, DVD movements, shredders, copiers, massagers, toy movements, instruments, medical equipment, vacuum cleaners, automatic coffee machines, etc.

Gear Tolerance Reference Table

Gear one-way tolerance	Symbol	Accuracy level
	Fr	ISO	3	4	5	6	7	8	9	10
		DIN	4	5	6 , 7	8	9	10	10	11
		JIS	--	0	1	2	3	4	5	6
		AGMA	15	14	13	12,11	10	9	9	8
	fpt	ISO	3	4	5	6	7	8	9	10
		DIN	3	4	5 , 6	7	8	9	10	--
		JIS	--	0	1	2	3	4	5	6
		AGMA	15 , 14	13	12	11	10	9	8	7
	Fa	ISO	3	4	5	6	7	8	9	10
		DIN	3	4	5	5	6	7	8	9 , 10
		JIS	--	0	1	2	3	3	4	--
		AGMA	15	14	13	12	11	10	9 , 8	7 , 6
	F " -i	ISO	3	4	5	6	7	8	9	10
		DIN	--	5 , 6	7	8	9	10	--	11
		AGMA	--	14 , 13	12	11	10	9	8	8
	F " i	ISO	3	4	5	6	7	8	9	10
		DIN	--	5	6	7	8	9	9	10
		AGMA	--	13	12	11	10	9	8	7
	ISO 1328.1-1997,ISO 1328.2--1997---International Standards
	DIN 3961-8~3967-8---1978---German standard
	JIS B1702~1703(85)--Japanese Standard
	ANSI/AGMA 2000---A88--American Standard

Why Choose Us
We have over 10 years of experience in mold making and can save you time and money.

Commonly used mold steel and hardness for reference:
Steel Grade	S50c	P20	P20H	718h	Nak80	2738H	H13	2344	S136
Hardness (HRC)	17-22	28-32	33-37	33-38	34-40	36-40	48-50	48-52	48-52

Mould Maintenance Tips
1. Routine maintenance of the mould:refueling of various moving parts such as thimbles,guide posts,and guide sleeves,cleaning the surface of the mold,and dredging accumulated water.
2. Regular maintenance:cleaning of exhaust grooves,discharge of trapped air and black spots,correction of damaged and worn parts.
3. Appearance maintenance: spray paint on the outside of the mould to prevent rust. fixed mold and movable mould should be coated with anti-rust oil.when the mould is stored,it should be airtight to prevent dust from entering the cavity.
Company Profile
•Xiangruida was formerly known as "Xiangrun Plastic Products Factory" established in GuangMing District in 2009. In 2013, Xiangrun Plastic Products Factory was renamed Xiangruida Precision Plastic Technology Co., Ltd. due to development needs. Since 2013, Xiangruida has established its current business structure and business model after development and transformation. Its current business covers four major sectors: finished product design, mold design, mold manufacturing, and injection molding. It has 6 functional departments, 30 employees, and complete mold processing machinery and injection molding machinery.


•Xiangruida takes "service quality first, common sustainable development" as its concept, constantly innovates its business model, creates product and service brands, and effectively promotes the company's development in the industry, adding a touch of color to the customer's road to success.
•At this stage, Xiangruida's main businesses include: automotive molds (headlight frames, door plastic parts, central control panels and spare parts, etc.), plastic molds (air conditioners, gearbox gears, rubber-coated molds, equipment shells), medical device molds (medical test tubes, reagent tubes, equipment spare parts), silicone molds (silicone toys, food molds), etc.

•In order to better adapt to the development of diversified enterprises, we have made a series of improvements in value concepts, development models, organizational structures, corporate governance, etc., so as to better grasp national policies and industry dynamics.
•At present, Xiangruida takes continuous improvement as its attitude, emphasizes high-quality development, strengthens innovation, optimizes allocation, cultivates and consolidates core industries, strives to lead the industry, provides customers with high-quality products and services, and creates an enterprise with distinctive industry characteristics.
Packaging & Shipping

Mould Sea Freight Packaging

Product Packaging

We support sea, air and rail transportation, choose the appropriate transportation method according to your needs.

Ordering Procedures
FAQ
Q: What services can you provide?
A: We can provide mold design, mold manufacturing, injection molding production services.
Q: I have an idea for a new product but am not sure if it can be produced. Can you help?
A: Of course, we are happy to assist you with product design or other assistance, and we also provide prototype services to verify your ideas!
Q. How soon can I get an accurate quote for custom injection molded parts and molds?
A: Send 2D/3D drawings or samples to contact us, we will quote to you within 24 hours after receiving the email.
Q. How long does it take from placing an order to receiving the product?
A.Plastic tooling cycle (15-25 working days), injection molding products according to the order quantity as soon as 7 working days to complete.
Q. How to pay the deposit?
A. All our orders support 50% deposit, the remaining 50% will be paid after sample confirmation. We support multiple payment methods, please contact sales for details.
Q. Do you support OEM?

A. Yes, we can produce by technical drawings or samples.
Q. Is the quote on the detail page accurate?
A.It depends on your product structure and processing difficulty, the quotation range on the page is the quotation range of our completed real orders, you can refer to it.
