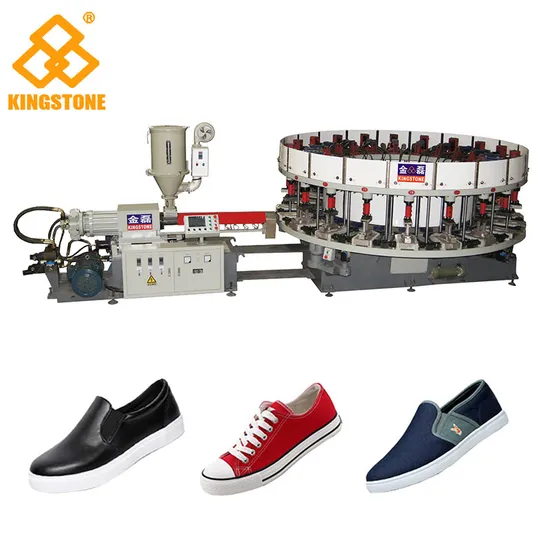

Automatic One Colour DIP Canvas Shoe Making Machine
| Negotiable | 1 SET (MOQ) |
Basic Info.
Model NO.
JL-258
Power Supply
Electric
Applicable Material
Plastic
Function
Making Sole
Name
Sports Shoes Making Machine
Type
Direct Injection Machine
Workstations
20 Stations
Power
37.5kw
Power Consumption
20-25kw
Machine Weight
9 Tons
Workers Need
1-2 People
Warranty
2 Years, The Longest Time in China
Shippin Terms
Fob Shenzhen
Container Loading
40hq
Transport Package
Standard Export Package
Specification
6.2*3.6*2.5 m
Trademark
Kingstone
Origin
Dongguan City, China
HS Code
8477101090
Production Capacity
100 Sets/Month
Product Description
>> DescriptionProduct:Suitable for various kinds of shoes such as canvas shoes and sport shoes.
Raw Material:Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPR.
>> Machine Features
1. All oil circuits are controlled proportion pressure to coordinate with computer digital feeding system.
2. Hydraulic compare with vertical straight locking device for perfect tightness with the least burr, to reduce manufacture cost.
3. Coordinated with electric and hydraulic structure and unique braking device to make rotary turn fast and set precisely.
4. Special design of mechanical butter to coordinate with hydraulic multi-control, it avoids the hitting between injection gate and mould, also keeps standard touching pressure to extend mold serving life.
>> Machine specifications
| Machine model | JL-258 | ||||
| Mould-clamping Unit | |||||
| Work station | 12,16,20 | ||||
| Shoe last trip | MM | 60 | |||
| Shoe last height | MM | 210-260 | |||
| Mould dimension | MM | 340*80*60 | |||
| Clamping mould style | V | ||||
| Injection Unit | |||||
| Injector | SET | 1 | |||
| Screw diameter | MM | 70/75 | |||
| Screw L/D ratio | L/D | 20 | |||
| Max.injection volume | cm3 | 650-1000 | |||
| Injection pressure | mpa | 5.0 | |||
| Screw rotation speed | R.P.M | 0-200 | |||
| Electricity Consumption | |||||
| Heating power of injector | KW | 9 | |||
| Hydraulic unit motor | KW | 15 | |||
| Total power | KW | 24 | |||
| Temperature control | Section | 4 | |||
| Power consumption per hour | Kw/h | 15-20 | |||
| Dimension and Weight | 20 Stations | ||||
| Machine dimension | (L*W*H)MM | 6200*3600*2500 | |||
| Machine weight | KGS | 9000 | |||
| *Note:Above data only for reference. | |||||
>> Machine Pictures
>> Machine Drawing
>> Finished Products
Package & Shipping
The machine need 40HQ container .
