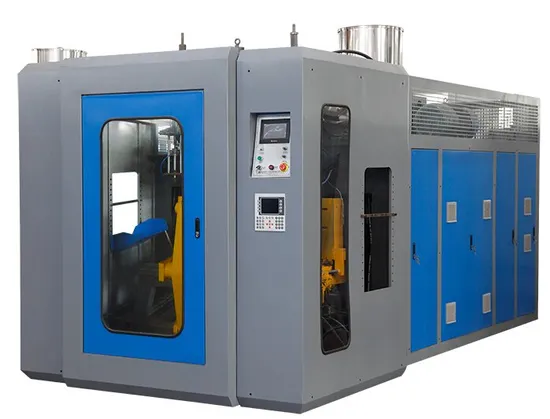

0-5L HDPE Laundry Detergent Bottle Making Extrusion Blow Molding Machine
| US$20,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SZ-75
Raw Material
HDPE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Video Technical Support, Free Spare Parts, Field I
Application
Bottles, Jars, Jerry Cans, Gallons, Containers
Clamping System
Toggle Type Clamping System
Max. Product Volume
5L
Clamping Force
80kn
Station
Single Station or Double Station
Die Head
Single Head or Double Head
Mould
One Cavity or Two Cavity
Auto-Deflashing
with Auto-Deflashing
Suitable Material
HDPE, PP, PVC, PS, PETG, LDPE
Platen Moving Stroke
520 mm
Template Distance
150~560mm
Max Mould Size
400X450mm
Transport Package
Film Packing
Specification
75
Trademark
ShenZhou
Origin
Jiangsu, China
HS Code
8477301000
Production Capacity
15 Set/Sets Per Month
Product Description
SZ-75 full-automatic bottle-making machine is specially designed for plastic chemical bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic bottles not over than 5Liters. Product: 0~5 L Bottles
Power supply: 380/220v 50/60 Hz Tri-phase
Die head number: Single / Double
Suitable raw material: PE, PP, PVC, PS, PETG
Output capacity: 220~240 pcs/h (5L) / with single head
450~480 pcs/h (1L) / with double head
Technical Parameters: SZ-75
| Basic parameters | Suitable material | HDPE. PP, PVC, PS, PETG, so on | ||
| Max volume | 5L (Single-head) / 1L double die head | |||
| Output capacity | 220~240 PCS/h | |||
| Size | 3.8×2.3×2.5(M) | |||
| Weight | 4.8T | |||
| System | Specification | Parameters | Note | |
| Plasticizing system | ||||
| Summarize | High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature | |||
| Reducer | Material of Gear box body: HT200 Material of gear: ZG35CrMo Material of bearing: 42CrMo Heat treatment of Gear: Quenching | Brand: GuoTai (The best Gearbox supplier in China) | ||
| Screw | ∮75mm, L/D ratio 25/1, Material: 38CrMoALA Nitriding heat-treatment Cooling by cooling Fan | Cooling system available | ||
| Plasticization | 100Kg/H | HDPE | ||
| Heating Zone | 3-4 Aluminum Heater | Automatic heating | ||
| Heating power | 4KW/H | |||
| Extrusion Motor | Three-phase asynchronous motor (380V, 50Hz) 30HP | Brand: Siemens | ||
| Cooling Fan | 3-4zone | Automatic cooling | ||
Extrusion system | ||||
| Summarize | High-grade alloy steel, center feeding Available to change to double die head or triple die heads | |||
| Die head number | Single head for 5L / double head for 1L | |||
| Center distance of die heads | 130mm or 160mm for Double die head 75mm or 80mm for Four die head | |||
| Die head | Material of the die Head: 38CrMoAlA+40Cr+45# Steel Die head corn mirror degree | We provide a complete set die for each sample free | ||
| Heating | 3-4 Stainless steel heating cycle With Plug type heater High-quality thermocouple for temperature checking | Plug type heater easier and convenient for changing die heads | ||
| Heating power | 3~5KW | |||
| Clamping system | Automatic Lubricant system for clamping system | |||
| Clamping force | 80KN | |||
| Template distance | 150~560mm | |||
| Max mould size | 400X450mm | |||
| Platen moving stroke | 520mm | |||
| Lubrication | Equipped with automatic lubrication system | |||
| Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting, auxiliary function available) | Siemens or MITSUBISHI PLC System + TOUCH SCREEN | |
| Operate interface | Touch screen, automatic self-diagnose alarm system | |||
| Temperature control | The automatic temperature control module | Siemens OR MITSUBISHI MODULE | ||
| Electrical parts | Schneider electricals & Omron relay | |||
| Electric protection | Ampere overload, electric short circuit self-protection function | |||
| Parison controller | Japan MOOG 100 points parison controller + Moog servo Valve + stainless oil tank + oil pipes & fittings (Optional: 10500 USD/ complete set if needed ) | |||
| Invertor | DELTA (Taiwan) 380V50Hz One for main screw + another for lever line screw | |||
| Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | ||
| Oil pump motor | Three-phase asynchronous motor (380V, 50Hz) 7.5kw | |||
| Oil pump | Imported double pump | |||
| Valves | Japan YUKEN Hydraulic valves | |||
| YUKEN Hydraulic valve Precision control More safe and easy to operate and maintenance Also YUKEN series avoid any leakage problem both inner or outer, which makes the all operation reliable and safe. | ||||
| O-sealings | High-quality O-sealings | We provide spare parts for each sealing | ||
| Oil pipes | Double layer overpressure resistant | |||
| System pressure | LP 100 bar / HP 130 bar Threads of hydraulic block use of screw joint GE(ISO 1179) | |||
| Cooling system | Separate water cooling cycle, oil cooler cooling system High-quality Oil cooler | |||
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | ||
| Air pressure | 0.8MPa | |||
| Air displacement | 0.8M3/min | |||
| Electromagnetic valve | AIRTAC | |||
| Cooling system | Summarize | The separate cooling system of mould, barrel, and oil system | ||
| Cooling medium | Water | |||
| Water flow | 80L/min | |||
| Water pressure | 0.3-0.6MPa | |||
The main components of the machine
| electronic parts | |
| Name | Trader |
| Micro computer control system | TAIWAN WISETECH |
| Temperature Controller | TAIWAN HUIBANG |
| Auxiliary Relay | OMRON |
| contactor | SOLID |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | ABB from SWIZERLAND |
| hydraulic parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | YUKEN |
| Oil pump and connection | YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
