Machine Production Line for Recycled HDPE LLDPE PP LDPE

Product Description

machine production line for recycled hdpe lldpe pp ldpe
Description of waste plastic PE PP bags crushing washing recycling machine:
PE PP film plastic recycling machine is a recycling equipment that to recycling the waste dirty PE PE film plastic, such like shopping bags, packing films, garbage bags, woven bags, non-woven bags, argraculture films, Container liquid bag etc. To reuse and recycling the waste plastic film bag can greatly reduce white pollution.
This PE PP film plastic recycling machine can crushing washing and drying the dirty PE PP plastic films bags, after processed by this plastic recycling machine can get the clean small size plastic films. After plastic film bag cleaned, the small size film can disposal by the PE PP film plastic pelletizing machine, then can get the plastic pellets(or called plastic granule/ plastic dana).
This PE PP film plastic recycling machine is high automatic operating and low consume, can save labor, save power, easy to maintenance.
The whole waste plastic PE PP bags crushing washing recycling machine includes(customizable):

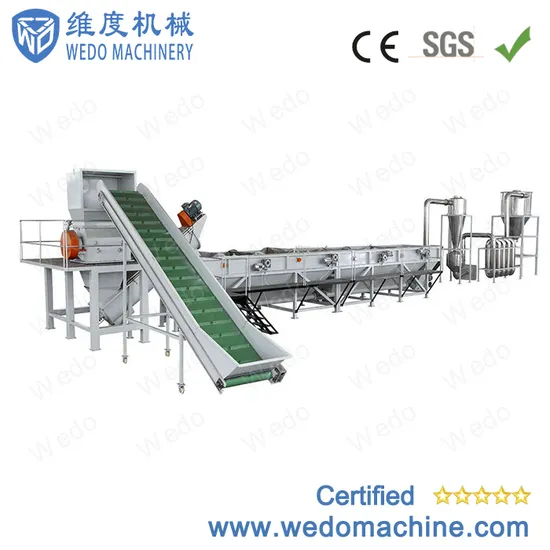

Belt Conveyor→Metal Detector→Crusher→Friction Washer→Floating Washer→ Friction Washer→ Dewatering Machine→Pipe Drying System→Silo
Photos of some main parts in waste plastic PE PP bags crushing washing recycling machine:
layout or the waste plastic PE PP recycling machine
Belt conveyor of the waste plastic PE PP bags crushing washing recycling machine
Crusher/granulator/grinder of the waste plastic PE PP bags crushing washing recycling machine
Friction washing machine of the waste plastic PE PP bags crushing washing recycling machine
Floating washing tank of the waste plastic PE PP bags crushing washing recycling machine
Dewatering machine of the waste plastic PE PP bags crushing washing recycling machine
The fuction of some main parts in waste plastic PE PP bags crushing washing recycling machine: Belt Conveyor: To transfer the material by crawler belt, which is moved by inside scroll wheel. Crusher/Grinder: Crushing the plasteic film material into small size. Friction washer: After crushing, material through the high speed on the shaft, according the vane flap and spray water, the material will get good cleaning effect. Floating Washer: the PE PP plastic film will floating on the water, after the friction washing, the dirty material will easy to separate from the film surface, and the dirty will sink down to the water. Dewatering: Rejection the water from the flakes, moisture content is less than 8%. Drying system: after the dewatering machine, the film will mixed the hot air in pipe line, that can make the film more dry. Silo: Storage materials. Electrical Control Cabinet
Parameters of waste plastic PE PP bags crushing washing recycling machine

CAPACITY (kg/h)	POWER CONSUMPTION (kw)	WATER CONSUMPTION (ton/h) depend material	LABOUR	HUMIDITY CONTENT
500	150	4-5	1-2	<5%
1000	180	6-8	3-4	<5%
1500	240	8-10	3-5	<5%

Wedo Produce steps:
Wedo have a fully step for the waste plastic PE PP bags crushing washing recycling machine producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine.
Wedo service:
We do best service for you in waste plastic PE PP bags crushing washing recycling machine
After this waste plastic PE PP bags crushing washing recycling machine, our company also supply the following recycling lines of PE PP plastic pelletizing machine, that can make the PP PE film into PP PE pellets.
Any further about the machine production line for recycled hdpe lldpe pp ldpe, please contact us timely we will give your professional fully support.
