Factory Price ABS Approved Cjpf80/Sc Cjpf86/Sc Cjpf90/Sc Cipf96/Sc 0.6/1kv Marine Shipboard Power Control Cable

Product Description

Product Description
ABS approved CJPF80/SC CJPF86/SC CJPF90/SC CIPF96/SC 0.6/1kV Marine Shipboard Power Control Cable
Application

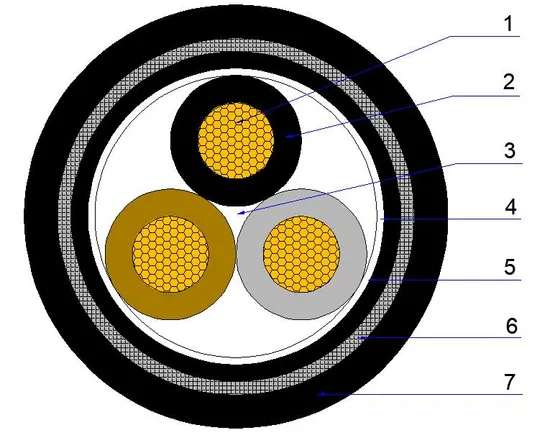

The cable is intended for power lighting and control system of shipboard and off-shore building such as oil platform. It is also available to metallurgical industry, chemical works, power plant and corporation mining etc. Construction
1.Conductor Tinned Copper, round stranded acc. to IEC 60228
2.Insulation XLPE acc. to IEC 60092-360 Identification Above 5 cores on White with number code / 1-5 cores on Color code
3.Filler (if any) 4.Wrapping tape
5.Inner bedding Thermosetting SHF1 / SHF2 LSZH compound
6.Armour Galvanized steel wires braiding with better flexibility & strength
7.Outer sheath Thermosetting SHF1 LSZH / SHF2 compound , black,according to IEC 60092-360, mud resistance,flame retardant .Splash resistant to oil, skydrol, petrol, acid, sea water. Resists ozone and UV.
Type and description of shipboard cable
1.CJPJ/SC XLPE insulated SHF2 outer sheathed shipboard power cable, Type SC
2.CJPJ80/SC XLPE insulated SHF2 inner sheathed tinned copper wire braided shipboard power cable, Type sc
3.CJPJ85/SC XLPE insulated SHF2 inner sheathed tinned copper wire braided SHF2 outer sheathed shipboard power cable, Type SC
4.CJPJ90/SC XLPE insulated SHf2 inner sheathed galvanized steel wire braided shipboard power cable, Type SC
5.CJP95/SC XLPE insulated SHf2 inner sheathed galvanized steel wire braided SHF2 outer sheathed shipboard power cable, Type SC
6.CJ85/SC XLPE insulation tinned copper wire braided SHF2 outer sheathed shipboard power cable, Type SC
7.CJPF/SC XLPE insulated SHF1 outer sheathed shipboard power cable, Type SC
8.CJPF80/SC XLPE insulated SHF1 inner sheathed tinned copper wire braided shipboard power cable, Type SC
9.CJPF86/SC XLPE insulated SHF1 inner sheathed tinned copper wire braided SHF1 outer sheathed shipboard power cable, Type SC
10.CJPF90/SC XLPE insulated SHF1 inner sheathed galvanized steel wire braided shipboard power cable, Type SC
11.CIPF96/SC XLPE insulated SHF1 inner sheathed galvanized steel wire braided SHF1 outer sheathed shipboard power cable, Type SC
12.C186/SC XLPE insulation tinned copper wire braided SHf1 outer sheathed shipboard power cable, Type SC
Type SC Halogen-free Low-smoke Low-toxicity flame-retardant cable, comply with lEC60332 3Cat.A,IEC60754,IEC61034 Cable Parameters:

Number of Conductors×Size (mm²)	Nominal Outer Diameter (mm)	Gross Weight (kgs/km)	Currant Rating A at +45ºC	Number of Conductors×Size (mm²)	Nominal Outer Diameter	Gross Weight (kgs/km)	Currant Rating A at +45 ºC
					(mm)
1×1.0	5	36	18	4×1	9.2	102	13
1×1.5	5.2	40	23	4×1.5	10.2	138	16
1×2.5	5.7	55	30	4×2.5	11.2	185	21
1×4	6.5	70	40	4×4	12.8	270	28
1×6	7.2	95	52	4×6	14.6	390	36
1×10	8.8	142	72	4×10	18.4	569	50
1×16	9.9	205	94	4×16	21.5	820	66
1×25	11.7	296	123	4×25	25.6	1265	86
1×35	13.6	398	153	4×35	30	1690	107
1×50	15.8	559	196	4×50	35	2390	137
1×70	18	774	240	4×70	40.5	3315	168
1×95	19.8	992	284	4×95	45	4320	199
1×120	21.6	1255	331	4×120	59.6	5450	232
1×150	24	1559	381	4×150	55.6	6915	267
1×185	27.2	1916	429	5×1	10	113	10
1×240	30	2488	507	7×1	11	147	9
1×300	32.4	3073	582	10×1	14	210	8
2×1.0	8	66	14	12×1	14.5	243	8
2×1.5	8.5	83	20	14×1	15	277	7
2×2.5	9.5	118	26	16×1	16	313	7
2×4	10.6	160	34	19×1	17	364	7
2×6	12.5	240	44	24×1	20	461	6
2×10	15	360	61	27×1	20.5	509	6
2×16	18	515	80	30×1	21	559	5
2×25	21.5	790	105	33×1	22.5	611	5
2×35	25	970	130	37×1	23	678	5
2×50	29.8	1350	167	5×1.5	11	143	13
2×70	34	1866	204	7×1.5	12	189	12
2×95	37	2381	241	10×1.5	15	271	11
2×120	40	2983	281	12×1.5	15.5	314	10
2×150	45	3850	324	14×1.5	16.5	360	10
2×185	50	4598	365	16×1.5	17.5	407	9
3×1.0	8.4	75	13	19×1.5	18.5	474	9
3×1.5	9	94	16	24×1.5	22	601	8
3×2.5	10.5	130	21	27×1.5	22.5	665	8
3×4	12	184	28	30×1.5	23	733	7
3×6	13.5	275	36	33×1.5	24	801	7
3×10	16	440	50	37×1.5	25	891	7
3×16	19.2	625	66	5×2.5	12	202	17
3×25	23	957	86	7×2.5	13.5	269	16
3×35	27.4	1300	107	10×2.5	17	385	14
3×50	32	1834	137	12×2.5	17.5	450	13
3×70	36.7	2543	168	14×2.5	18.5	517	13
3×95	38.2	3262	199	16×2.5	19.5	586	12
3×120	44.5	4123	232	19×2.5	21	686	11
3×150	49.8	5115	267	24×2.5	25	870	10
3×185	56.5	6350	300	27×2.5	25.5	966	10
3×240	63	8460	355	30×2.5	26.5	1065	9
