Brilliant Turbo Turbo-Rod Water Big Rain Gun Sprinkler Far Range

Product Description

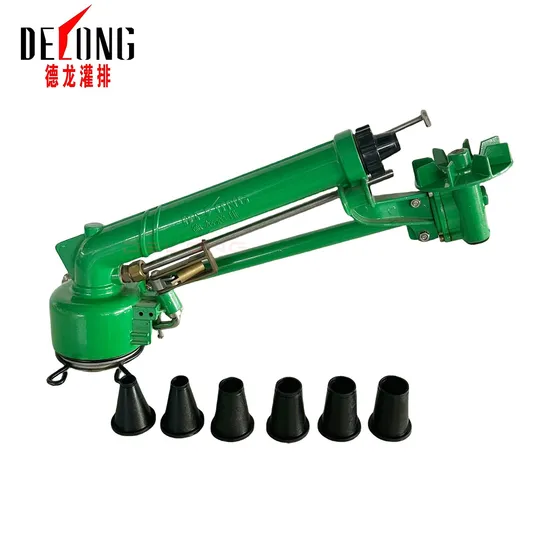

DLW-40 turbo turbo-rod jet gun adopts turbine turbo-rod transmission, through the water flow to different positions of the impeller, to realize the positive and negative rotation, so as to realize the continuous spraying method of both positive and reverse normal spraying. The spray gun has a long injection distance and can rotate at a uniform speed in the full round or partially round way. The rotation Angle of the spray gun can be adjusted by 0-360, completely automatically, uniformly and smoothly in the injection process, without manual intervention. The spray gun comes with a variety of different specifications of nozzles, and the adjustable water breaker can better produce small and uniform water particles. Moreover, the DLW-40 turbine turbojet gun can also achieve its excellent spray atomization effect under low water pressure, thus greatly reducing energy costs. Products are mainly used in agricultural irrigation, industrial and agricultural drainage, grassland irrigation, landscaping, large and medium-sized winch type sprinkler and matching of large pointer sprinkler tail gun, large area irrigation engineering, field sprinkler dust, stadium, pasture, its pressure resistance, sealing performance, and uniform, stable, reliable can meet the requirements of spraying, will not cause the loss of water, soil, fertilizer, is conducive to the growth of crops, automation, promote agricultural production to mechanization, industrialization.

U Jet diameter	P Pressure	G Range	Q Rate of flow
mm	kg/cm2	m	I/min	m3/h
12	2	22	160	5
	3	25	215	6
	4	28	270	8
	5	31	300	9
14	2	24	210	10
	3	27	258	11
	4	30	298	13
	5	33	333	14
16	2	26	262	15
	3	29	322	18
	4	32	372	21
	5	35	416	24
18	2	28	396	19
	3	31	458	24
	4	34	511	28
	5	37	561	31
20	2	30	478	21
	3	33	553	29
	4	37	618	34
	5	41	678	37
22	2	29	568	24
	3	34	658	31
	4	38	735	36
	5	43	805	39
