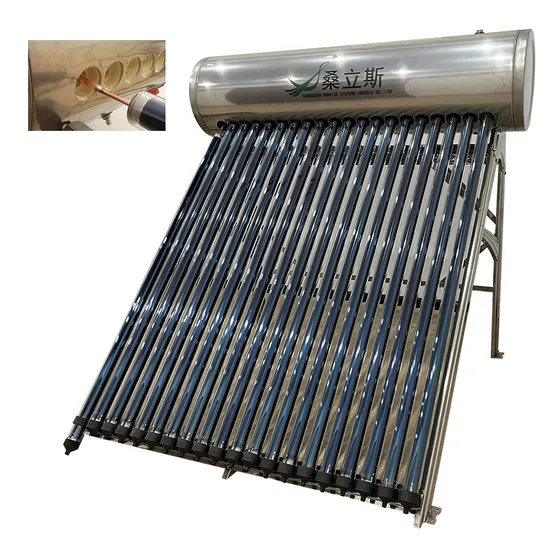

Advanced Heat Pipe Pressurized Solar Water Heating System

Product Description

Advanced Heat Pipe Pressurized Solar Water Heating System Product Description
Working Principle
Compact Pressure System Working Principle:
Vacuum tube collect heat from sunshine, aluminum ring inside transfer the heat to heat pipe, then heat pipe transfer the heat to water inside tank, the system start and transfer heat is quick in cloudy and low radiation days, daily average heat efficiency can up to 55%.
Specialty
1. High thermal performance and working temperature: the heat exchanging rate even in winter can up above 55%. 2. Heat collecting efficiency is at least 20% above common solar systems. 3. Work in all day and all season: no matter any corner of the world, this system can work well even -40ºC to avoid the tube freezing problem. 4. Reliability: No water following through the tube, so water scale can not generate and tube cracks could be avoided, the system still can keep working even with some damaged tubes. 5. It can connect with water tap and work automatically with pressure0.6Mpa, bring enjoyable washing experience. 6. Safety: P/T valve would release pressure and temperature to protect tank. Technical specification 1. Outer tank material: SUS304 stainless steel or powder coated color steel 2. Inner tank material: 1.2mm thick SUS304 food grade stainless steel( Optional material SUS316L) 3. Vacuum tube material: borosilicate glass 3.3; AL-SS-CU absorb coating, with copper heat pipe inside 4. Frame material: 1.2mm thickness stainless steel 5. Insulation material: 55mm thickness polyurethane 6. Suitable for mains pressure water(up to 8 bar/116psi) 7. Easy plug-in installation 8. Install the T/P valve on the pressurized tank 9. Seal material: Stabilized High Temperature Silicon Product Parameters

Model	Specification							Quantity
	Vacuum Tube				Water Tank			20GP/40GP/40HQ
	Diameter	Length	No.	Absorb area(m2)	Inner Dia.	Outer Dia.	Capacity	(sets)
	(mm)	(mm)	(pcs)		(mm)	(mm)
SR-PC/PS-10	58	1800	10	1.4	360	470	100L	60/120/155
SR-PC/PS-12			12	1.66			118L	54/112/133
SR-PC/PS-15			15	2.08			143L	45/94/112
SR-PC/PS-18			18	2.57			168L	38/80/95
SR-PC/PS-20			20	2.85			185L	35/73/87
SR-PC/PS-24			24	3.41			220L	30/63/75
SR-PC/PS-30			30	4.25			271L	25/52/62

Industry-specific attributes
Warranty	5 years
Application	Outdoor,Hotel,Garage,Commercial, Household
Type	Evacuated Tube
Circulation Type	Direct / Open Loop (Active)
Other attributes
After-sales Service Provided	Free spare parts, Onsite Installation, Return and Replacement, Overseas Call Centers
Power Source	Solar
Place of Origin	Jiangsu, China
Connection Type	Direct-Plug
Installation	Freestanding
Capacity	100-300
Brand Name	SUNRISE
Model Number	SR-PHC/PHS
Inner tank material	SUS304-2B/SS316L
Outer tank material	Painted Steel/SUS201/SUS304
Item	Vacuum Tube Solar Collector
Frame	Stainless Steel SUS201-1.2mm
Usage	Home Bathing
Tube	Copper Heat Pipe Vacuum Tube
Product Keywords	Pressure Termotanques Solares
Insulation	55mm Polyurethane Layer
Heat Source	Soalr
Packaging and delivery
Packaging Details	CARTONS
Port	SHAGNHAI
Supply Ability
Supply Ability	3000 Set/Sets per Month

Detailed Photos

Packaging & Shipping
Production Site

Company Profile
CHANGZHOU SUNRISE SISTEMA ENERGIA CO.,LTD ,located in changzhou city , china , is a professional manufacturer to produce solar water heater system for hot water, and buffer tank for floor heating system ,as well as swimming pool solar heating system.
Our main products include: high pressure and low pressure solar water heater, heat pipe and vacuum tube solar collector,flat plate solar collector and solar water heater, compact and split solar water heating system, preheating copper coil solar water heater, buffer tank from 40liter to 1000 liter,for floor heating, as well as solar collector system for swimming pool.
My factory owns 6000 square meters workshop , 2 production lines for water tank,which can meet production capacity of 30000 sets of solar water heater,include double end welding machine, 12-position foaming machine , and standard testing machine to guarantee perfect quality,and brand-spray machine to produce beautiful OEM solar water heater.
Also,we have got certificates include ISO ,CEetc. Based on idea "quality first , service first ,price second", my factory provides solar eco products and services to more than 30 countries. Main markets covers Poland, Chile, South Africa,South Korea and Puerto Rico etc.
SUNRISE will create the best products and provide the most satisfactory services,.we sincerely hope to become your faithful friends and partners!
Why Choose Us?
Our Advantages
Our Product is economic and environmental;
Our Product is durable and has a long service life;
We have rich production experience.The quality of Product is reliable;
We have a perfect production process and strict quality control system;
We have perfect service system and will give you the best service.
Our Service For You
Pre-sale Service
Sample can be offered with sample charge and courier fee by buyer's side.
We have full stock,and can deliver within short time.Many styles for you to choose.
OEM and ODM order are accepted, Any kind of logo printing or design are available.
Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
We have rich experience of design, manufacture and sell water heater, we cherish every order from our honor.
After you choose
We will count cheapest shipping cost and make invoice to you at once.
Check quality again, then send out to you at 1-2 working day after your payment,
Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
We are very glad that customer give us some suggestion for price and products.
If any question,please contact with us freely by E-mail or Telephone.

FAQ
Q: What is your company business, brand, and product?
A:We engaged in manufacturing, R&D, Quality control and maintenance for solar water heater and accessories accordingly.
Q: Can we add our brand?
A:Yes. We brand "SUNRISE" for our solar water heater, however, we provide OEM and ODM service.
Q: How can we be your agent/distributor/exclusive agent?
A:At least one year of cooperation is required as a base of agent/distributor/exclusive agent.
Q: What after-sales service you provide?
A:We provide 5 years warranty service according to our warranty policy.
Q: What is the leading/production time?
A: Generally it is 3-7 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
