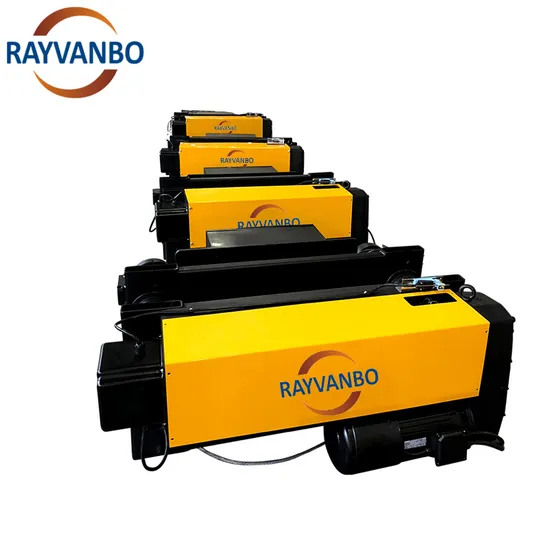

High Reliability Electric Customized Factory Warehouse 3.2ton 5ton 6.3ton 8ton 10ton 12.5ton Motor Pulling European Electric Wire Rope Hoist

Product Description

Product Description
European type hoist's body is welded by professional proximate matter,with exquisite structure, excellent appearance and unique innovations.They are suitable for various material transfer sites such as machining shops,assembly shops,warehouse and other material handling sites especially for sites where the height of workshop is limited.
Detail Features:
1) Lifting Motor
Ip55 protecting level, F level insulation
High efficiency double speed lifting motor, ratio 6:1
60% ED, strong power and sufficient stock
With thermal protecting function to prevent from over temperature
Sturdy and durable aluminum alloy motor, light weight, good heat dissipation
High-tech totally enclosed aluminum alloy gearbox
Quenched and fine ground gear makes motor stable and low noise
Free maintenance design:no need to change lubrication oil in lifetime
DC brake, quick response
The safety factor of brake is higher than 180%, manual release for optional
With self-adjust function
More than one million times brake operation
2) Traveling Motor
Motor ,gearbox and brake three-in-one
Compact structure ,small size and light weight
Direct drive flexible design, stable torque transfer
30% rotational efficiency higher than traditional coupling
Suitable for frequency reverse switching
Squirrel cage variable frequency motor 60% ED
IP55 protecting level, H level insulation
Safe and reliable DC brake
Aluminum alloy shell, hard tooth surface reducer, well sealing without oil leakage
3) Imported Wire Rope
High strength pressed solid galvanized wire rope
2160N/mm² tensile strength
40% smaller than traditional wire rope
Good flexibility and long service life
Press rope block for special use, intensively layout to prevent form loose, fastening is more reliable
Fusible cutout rope technology,fusible surface is firm
Effectively prevent from loose to extend service life
4) Hook Assembly
Match to the standard of DIN15400/15401, forged by high strength alloy steel
With safety latch to protect safely
360° horizontal and 180° vertical rotations
High strength extrusion pulley, high finish rope groove to avoid friction with wire rope
5) Control System
Automatic orientation
Automatic centering
Automatic rectify deviation
Inch moving ,joggle
Anti-shock
Regional Protection
Electronic anti-sway
Remote communication, digital maintenance
6) Electric Unit
Stable and durable contactor control, reliably work in bad condition
Standard three phase voltage:380-415v,50hz(440-480v,60hz)
Standard control voltage:48v
Sturdy and durable control panel, IP54 protecting level
7) Rope Guider
High performance engineering material,light self-weight,sturdy and reliable
Circular design
Precise rope guide system
Single Girder European Type Wire Rope Hoist:

Load Capacity(M)	Lift Height (M)	Lift Speed (m/min)	Travelling Speed (m/min)	Lift Motor Power(KW)	Travel Motor Power (KW)	Rope Dia (mm)	Group (ISO)	Rope Reeving
3.2	6/9/12/15/18	5/0.8	20/5	3.2/0.45	2*0.37/0.1	7	M5	4/1
5	6/9/12/15/18	5/0.8	20/5	6.0/0.9	2*0.37/0.1	9	M5	4/1
6.3	6/9/12/15/18	5/0.8	20/5	6.0/0.9	2*0.37/0.1	9	M4	4/1
8	6/9/12/15/18	5/0.8	20/5	9.5/1.5	2*0.75/0.18	13	M6	4/1
10	6/9/12/15/18	5/0.8	20/5	9.5/1.5	2*0.75/0.18	13	M5	4/1
12.5	6/9/12/15/18	5/0.8	20/5	12.5/1.9	2*0.75/0.18	13	M4	4/1

Double Girder European Type Wire Rope Hoist:

Load Capacity(M)	Lift Height (M)	Lift Speed (m/min)	Travelling Speed (m/min)	Lift Motor Power(KW)	Travel Motor Power (KW)	Rope Dia (mm)	Group (ISO)	Rope Reeving
5	6/9/12/15/18	5/0.8	20/5	6.0/0.9	2*0.37	11	M5	4/1
10	6/9/12/15/18	5/0.8	20/5	9.5/1.5	2*0.55	15	M5	4/1
12.5	6/9/12/15/18	5/0.8	20/5	12.5/1.9	2*0.55	15	M4	4/1
16	6/9/12/15/18	4/0.6	20/5	16/2.6	2*1.1	18	M5	4/1
20	6/9/12/15/18	4/0.6	20/5	16/2.6	2*1.1	18	M4	4/1
20	6/9/12/15/18	3.4/0.5	20/5	16/2.6	2*1.1	18	M5	4/1
25	6/9/12/15/18	3.4/0.5	20/5	16/2.6	2*1.1	18	M4	4/1
40	6/9/12/15/18	4.9/0.8	20/5	38	2*1.5	20	M4	4/1
63	6/9/12/15/18	3.3/0.5	20/5	38	2*2.2	20	M4	4/1

Compared with the traditional electric wire rope hoist, European type electric wire rope hoist is a newly developed hoist with advanced design technology according to the FEM standards and other regulations The new serial of wire rope electric hoist is environment-friendly, energy saving and cost-effective which ranks top among similar products.
Advantages:1. Optimized design with FEM standard, with light and beautiful appearence.
2. Safe and efficient to operate, and meet current requirements of low noise and environmental protection.
3. Equipped with intelligent safe operation monitoring system which can uninterruptedly record working status and prevent unprofessional operations. And controller will perform a self-test before starting, including the power supply voltage level,default phase, button zero status and validity of each safety device.
4. Imported Motors, aluminum alloy drawing molding with excellent heat dissipation, and overheated protection and alarm function.
5. Maintenance-free design of whole body and less wearing parts make it convenient to maintain.
Packaging & Shipping
About Us
FAQ
Q1: What are you? Trade Company or manufacturer?
We are both manufacturer & trading company

Q2: What's the advantage of your company?
We've experienced manufacturer and overseas dealer. Our products have been exported to over 110 countries.
An independent research team especially focusing on crane and hoist design upgrade. A professional service
team for customers will provide feedback within 24 hours.

Q3: What's the sample & MOQ to your company?
Sample order MOQ can be 1 set and the product you ordered will be sent in a week as long as inventory is available.

Q4: Can I customize the product according to my own willing?
Yes, OEM/ODM are available, we can customize as customer's request.

Q5: How is the package during transportation?
Composite wooden crate for the electrical parts, waterproof cloth for the steel structure, then packed in a metal crate.
