M618B Rectificadora de superficies planas, surface grinding machines with Taiwan spindle

Product Description

Hercules Surface Grinding Machine M618B
Features:
The machine is reasonable in structure, good rigidity, beautiful appearance, easy operation.
Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous.
The main mechanical valve is a special valve grinder, is divided into two parts, the mechanical commutation control, throttle control part and unloading function, can realize the station start and stop.
Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.
Standard Accessories
Coolant tank
Magnetic chuck
Balancing arbor
Wheel flange
Wheel extractor
Leveling wedge and bolt
Tool box and tools
Standard grinding wheel
Working lamp
Wheel dresser stand (not include diamond pen)
Optional Accessories
Parallel wheel dresser
Digital readout
Wheel balance stand
Coolant tank with magnetic separator and paper filter
Coolant tank with magnetic separator
Parameter:

Specification	M614	M618
Table size	150×355mm(6×14")	150×457mm(6×18")
Maximum grinding length	375mm(13-3/4)	475mm(18-3/4")
Maximum grinding width	160mm(6-1/3"0)	160mm(6-1/3")
Distance Spindle to table	350-400mm(6×12") customized up to 430mm
About feed
Manual feed	380mm(15")	485mm(19")
Before feeding
Manual feed	180mm(7")
The manual feed per scale	0.02mm(0.001")
The manual feed per revolution	5mm(0.2") or 3mm(0.1")
Lifting feed
Each scale handwheel feed	0.005mm(0.0002")
Handwheel feed per revolution	1mm(0.05")
Grinding wheel
wheel size (diameter×width×diameter)	180mm(7×2/3×1-1/4")
Spindle speed	60Hz/50Hz-3600/3000rpm
Motor
Spindle motor	1.5/2HP
Weight
Net weight	800kgs	850kgs
Packing size	1400×1150×1980mm(52×45×78")	1550×1150×1980mm(55×45×78")

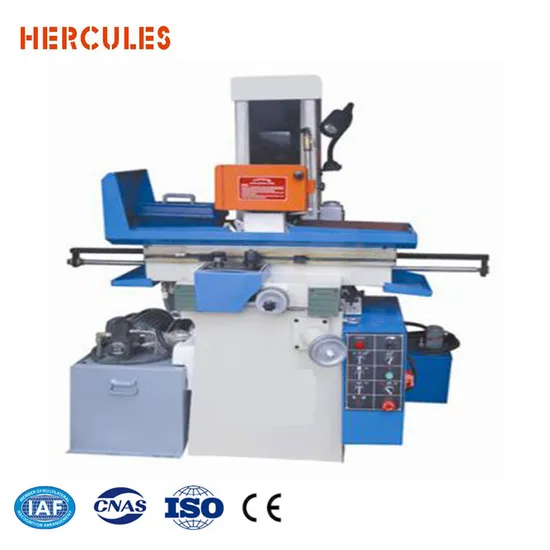

Machine Image for reference only:
