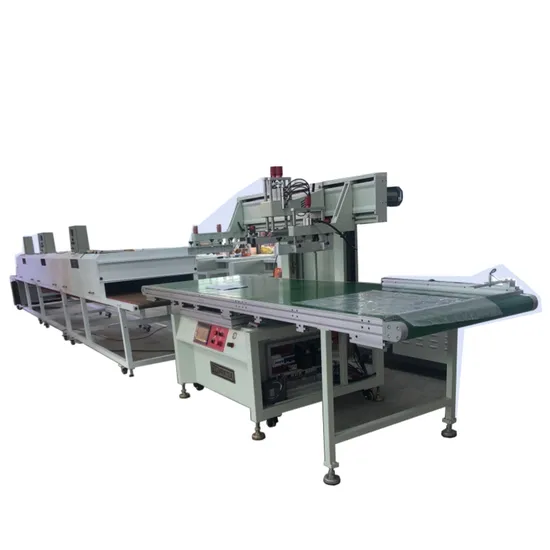

European Extra Large Self-Sealing Plastic Bag Produce Line Automatic Screen Printing Machine
Basic Info.
Model NO.
TM-90110D
Type
Vertical Screen Printing Machine
Style
Screen-process Printing Press
Structure
Platen Press
Color & Page
Single-Colour Printing Press
Application
Packaging Printing
Applicable Industriestion Width
Garment Shops, Building Material Shops, Manufactur
Place of Origin
Guangdong, China
Automatic Grade
3/4 Automatic
Plate Type
Screen Printing Plate
Gross Power
25 Kw
Weight
1220kg
Dimensions(Lxwxh)mm
11500 mm * 1170 mm * 1650 mm
After Warranty Service
Video Technical Support
Lead Time (Days)
30 Can Be Negotiated
Machinery Test Report
Provided
Transport Package
Plywood
Specification
11500 mm * 1170 mm * 1650 mm
Trademark
Tamprinter
Origin
China(Mainland)
HS Code
8443198000
Production Capacity
500set/Year
Packaging & Delivery
Package Size
330.00cm * 165.00cm * 160.00cm
Package Gross Weight
596.000kg
Product Description
1 Color vaccum Worktable Screen Printing Machine For Print Textile/T-shirt/Nylon bag/shopping bag/Garment/Clothes| Applicable Industries | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Printing Shops, Advertising Company |
| Place of Origin | Guangdong, China |
| Automatic Grade | 3/4 Automatic |
| Warranty | 2 years |
| Key Selling Points | Automatic |
| Plate Type | Screen Printing plate |
| Brand Name | Tamprinter |
| Use | Paper Printer, Label Printer, Card Printer, Cloths Printer |
| Max. Print Area | 800*900 mm |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 3 years |
| Core Components | Bearing, Motor, Pressure vessel |
| Print color | 1 color |
| Gross Power | 25 kw |
| weight | 1220kg |
| Dimensions(LxWxH)mm | 11500 mm * 1170 mm * 1650 mm |
| After Warranty Service | Video technical support |
| Lead time (days) | 30 can be negotiated |
| TM-90110D vertical belt screen printer 8443198000 | Touch screen operation panel Servo motor precisely controls stepping distance Print area: 800*900mm Workbench vacuum area: 900*2600mm belt hole area: 900*5900mm Max frame:900mm*1300mm Printing thickness:0~20mm stepping Overlay accuracy:0.05~0.1mm Platform precision: About +/-0.075mm Printing pressure: 4.0-8.0 kgf/cm2 Air pressure(mpa): 0.5~0.6(Mpa) Air consumption: 55L/min Printing speed: 600pcs/h Power: 380V/3KW Dimensions:3000*1170*1650mm weight:650kg 9CBM Free fitting clamp 800mm--1pcs,tinge 820mm---1pcs; clamp 400--1pcs,tinge 420mm--1pcs. Tool box |
| IR TUNNEL DRYER for plastic film 8514300090 | 380v / 50 Hz 3 phase inner liner galvanized sheet Inlet 1m+heat zone 2+2+2m+space0.5m+cooling 0.3m+ outlet 0.7m=8.5m 40ºC~80ºC,1~2 seconds Hot air flows down through the top mesh panel to achieve a shower effect manual Lift open oven cover teflonE belt width: 1 m Tunnel width: 1mm Conveyer speed: 0 ~ 8m / min 2'Exit' fit exhaust Long-life stainless steel heating element on top Total wattage: 22KW Outer box material: The outer layer is bent by cold-rolled steel plate material, then welded, and the surface is sprayed with anti-rust treatment . With insulation layer. |
Payment Terms TT / LC
