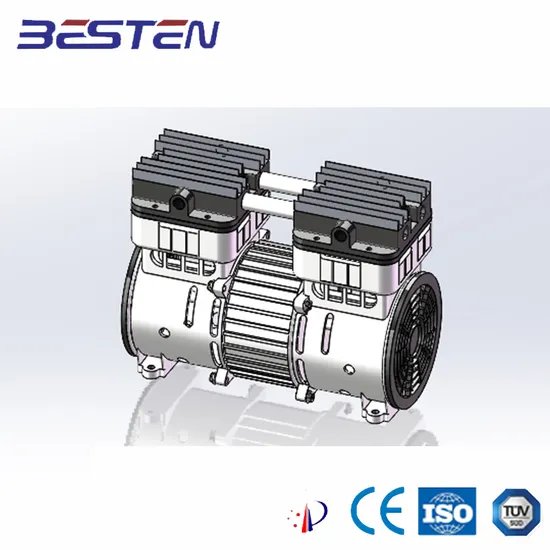

10L 14L Small Air Compressor for Oxygen Generator Happigeneraattorin Ilmakompressori

Product Description

Model	BST750/2-135AF
Rated Voltage (V)	220-240V/50Hz or 380-400v/50hz
Input power(W)	≤720
Speed (r/min)	≥1350
Rated pressure (KPa)	200KPa
Max pressure(KPa)	300KPa
Restart pressure (KPa)	0KPa
Rated volume flow (m3/h)	≥8.2m3/h@200KPa
Noise dB(A)	≤62B(A)
Ambient temperature ºC	-20~50ºC
Insulation Class	F
Cold insulation resistance (MΩ)	≥100MΩ
Voltage resistance	1500V/50Hz 1min (no break down)
Thermal protector	Automatic reset 155±5ºC
Capacitance (μF)	25μF±5%
Net weight (Kg)	10.5Kg
Installation Dimensions (mm)	223.2×88.9 mm(4XM6)
External Dimensions (mm)	268.8×128×215 mm
Oxygen generator	10L

Typical application
Respirator (ventilator)	oxygenerator
Disinfectant sprayer	Blood analyzer
Clinical aspirator	Dialysis / hemodialysis
Dental vacuum drying oven	Air suspension system
Vending machines / coffee blenders and coffee machines	Massage chair
Chromatographic analyzer	Teaching instrument platform
On board access control system	Airborne oxygen generator

Why choose besten air compressor
1. It saves 10-30% energy than the air compressor produced by ordinary manufacturers.
2. It is widely used in medical oxygen generator and ventilator .
3. A large number of high-speed train and automobile application cases, supporting - 41 to 70 ºC, 0-6000 meters above sea level .
4. Medium and high-end quality, with more than 7000 hours of trouble free operation for conventional products and more than 15000 hours of trouble free operation for high-end products.
5. Simple operation, convenient maintenance and remote guidance.
6. Faster delivery time, generally completed within 25 days within 1000 PCs. Machine PartsName: Motor
Brand: COMBESTAIR
Original: China
1.The coil adopts the fine pure copper enameled wire, and the rotor adopts the famous brand silicon steel sheet such as Shanghai baosteel.
2.The customer can choose the insulation grade B or F motor according to What he wants.
3.The motor has a built-in thermal protector, which can select external heat sensor.
4.Voltage from AC100V ~120V, 200V ~240V, 50Hz / 60Hz, DC6V~200V optional ; AC motor can choose double voltage double frequency ; DC Motor can choose the control of the infinitely variable speed.Machine PartsName: Bearing
Brand: ERB , TPI , NSK
Original: China ect.
1.Standard products choose the special bearing 'ERB' in oil-free compressor, and the environment temperature tolerance from -50ºC to 180 ºC . Ensure no fault operation for 20,000 hours.
2.Customers can select TPI, NSK and other imported bearings according to the working condition.Machine PartsName: Valve plates
Brand: SANDVIK
Original: Sweden
1.Custom the valve steel of Sweden SANDVIK; Good flexibility and long durability.
2.Thickness from 0.08mm to 1.2mm, suitable for maximum pressure from 0.8 MPa to 1.2 MPa.Machine PartsName: Piston ring
Brand: COMBESTAIR-OEM , Saint-Gobain
Original: China , France
1.Using domestic famous brand--Polytetrafluoroethylene composite material; Wear-resistant high temperature; Ensure more than 10,000 hours of service life.
2.High-end products: you can choose the ST.gobain's piston ring from the American import.

serial number	Code number	Name and specification	Quantity	Material	Note
1	212010109	Fan cover	2	Reinforced nylon 1010
2	212010106	Left fan	1	Reinforced nylon 1010
3	212010101	Left box	1	Die-cast aluminum alloy YL104
4	212010301	Connecting rod	2	Die-cast aluminum alloy YL104
5	212010304	Piston cup	2	PHB filled PTFE
6	212010302	Clamp	2	Die-cast aluminum alloy YL102
7	7050616	Screw of cross head	2	Carbon structural steel of cold heading	M6•16
8	212010501	Air cylinder	2	Thin wall pipe of aluninun alloy 6A02T4
9	17103	Seal ring of Cylinder	2	Silicone rubber
10	212010417	Sealing ring of cylinder cover	2	Silicone rubber
11	212010401	Cylinder head	2	Die-cast aluminum alloy YL102
12	7020525	Screw of inner hexagon Cylinder head	12		M5•25
13	17113	Sealing ring of connecting pipe	4	Silicong rubber
14	212010801	Connecting pipe	2	Aluminum and aluminum alloy connecting rod LY12
15	7100406	Screw of Cross head	4	1Cr13N19	M4•6
16	212010409	Limit block	2	Die-cast aluminum alloy YL102
17	000402.2	Air outlet valve	2	7Cr27 quenching steel belt of The Swedish sandvik
18	212010403	valve	2	Die-cast aluminum alloy YL102
19	212010404	Air inlet valve	2	7Cr27 quenching steel belt of The Swedish sandvik
20	212010406	Metal gasket	2	Stainless steel plate of heat and acidresistance
21	212010107	Right fan	1	Reinforced nylon 1010
22	212010201	Crank	2	Gray castiron H20-40
23	14040	Bearing 6006-2Z	2
24	70305	Tighten screw of inner hexagon flat end	2		M8•8
25	7020520	Screw of inner hexagon Cylinder head	2		M5•20
26	212010102	Right box	1	Die-cast aluminum alloy YL104
27	6P-4	Lead protective ring	1
28	70905152-211	Hexagon head bolt	2	Carbon structural steel of cold heading	M5•152
29	71005120-211	Screw of Cross head	2	Carbon structural steel of cold heading	M5•120
30	16602	Light spring washer	4		ø5
31	212010600	Stator	1
32	70305	Lock nut of hexagon flange faces	2
33	212010700	Rotor	1
34	14032	Bearing 6203-2Z	2

FAQ
Q1: Are you factory or trade company?
A1: We are factory.
Q2: What the exactly address of your factory?
A2: Our factory is located in Linbei industrial area No.30 Ruian City of Zhejiang Province, China
Q3: Warranty terms of your machine?
A3: Two years warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: How long will you take to arrange production?
A5: Generally, 1000 pcs can be delivered within 25 days
Q6: Can you accept OEM orders?
A6: Yes, with professional design team, OEM orders are highly welcome
Q7:Can you accept non-standard customization?
A7:We have the ability to develop new products and can customize, develop and research according to your requirements
