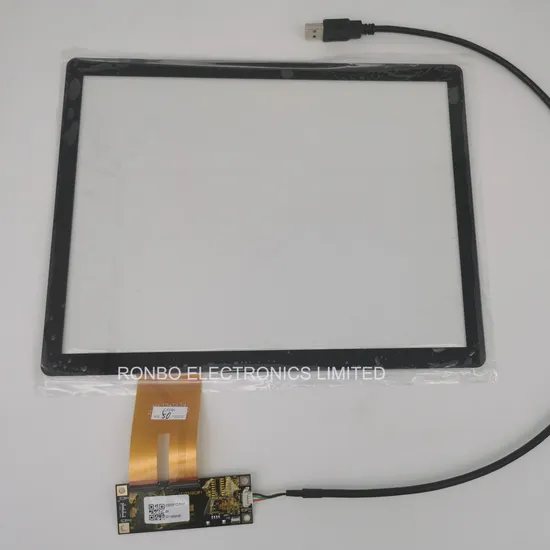

12.1" 1024X768 Ratio Scale 4: 3 Touch IC Ili2511 Capacitive Touch Panel / USB Interface Control Board

Product Description

12.1" 1024x768 Ratio Scale 4:3 Touch IC ILI2510 Capacitive Touch Panel / USB Interface Control Board
Operation Principle:
Capacitive touch panel works through body's current induction. When finger is on or close to touch panel surface, due to body electric field, the user and touch panel surface forms one coupling capacitance.
For high frequency current, capacitance is direct conductor, then fingers suck a small current from the contact point, through amplifying and accurately calculating this current signal,
Finally the controller works out the touch point position
Projected Capacitive Touch Screen Technology:
Projected Capacitive Technology permits more accurate and flexible operation by etching the conductive layer on the touch screen. Projected Capacitive Touch Screen uses multiple layers of glass or film with optical bonding in assembly process. Cover lens is usually made by tempered glass which can stand against shock and impact. Projected Capacitive touch panels are embedded with high performance IC and users can enlarge, shrink, rotate, flip and drag pages easily due to the multi-touch gesture support (multi touch screen).

Comparison between Capacitive Touch Panel and Resistive Touch Panel
Capacitive Touch Panel	Resistive Touch Panel
Touch (no pressure needed)	Press (pressure activated)
No calibration required	Calibration required (resistance drift on film)
Better Durability, No significant aging	Display turns white when aging
Handles high temperature	Film breaks down at high temperature
Better Transparency, less optical power needed	Low transmission
Can be vandal-proof (thick glass/plastic)	Easily damaged (thin top layer)
Scratch Resistant (with glass)	Prone to scratch
Stylus not a must	Need stylus, easy to lose

Product Specification:
The structures explanation:
* P+G=PET+Glass (cover lens is PET and touch sensor is glass).
* G+G=Glass+Glass (cover lens is glass and touch sensor is glass).
* G+F/F=Glass+Film+Film (cover lens is glass and touch sensor is film+film).
* CG= Cover Glass, OD= Outside Dimension, VA= Viewing Area.

Model NO.:	RXC-GG121063A-01
Screen Size:	12.1 inch
Resolution:	1024*768
Outside Dimension(W*H):	269.3x211.4mm
Viewing Area(W*H):	246.16x184.72mm
Touch type:	Multi-touch capacitive touch panel
Structure:	G+G
Surface Treatment:	Customized
Cover / Sensor Thickness:	Cover:2.0mm, Sensor:0.7mm
Total Thickness:	2.9mm (don't including Double Tape)
Controller:	ILI2510
Touch Action Force:	30~60g
Operating Voltage:	2.8V~3.3V
Transmittance:	≥86%
Surface Hardness:	6H
Interface:	USB/IIC/RS232
Pin NO:	4Pin/6Pin/4Pin
Pin pitch:	1.0mm
Connecting type:	USB Cable
Operating system support:	Linux, Android, Windows, etc
Operating Temperature:	-20 ~ +70ºC
Storage Temperature:	-30 ~ +80ºC

Custom Projected Capacitive Touch Screen:
Our capacitive touch panel design can be suitable for housing design from the customers to cover their lens or replace the physical buttons on its original module. we are also capable of doing the customized shape needed to suit for customer's mechanical design. With the assistance of the simulation software, equipment with high accuracy and simplifying assembly process, we are capable of making the sample in shorter period and with lower development charge.

	Lens's Features > Shape: Irregular and hole > Color: Silk printing, Logo > Glass brand: AGC, Corning, CSG, ETC > Treatments: AG, AR, AF, Anti-explosion > Thickness: 0.55mm, 0.7mm,1.0mm, 1.1mm, 1.8mm, 2.0mm, 3.0mm, 4.0mm
	Sensor Features > Sensor material: Glass, Film,Film + Film > Thickness:0.125mm,0.4mm, 0.55mm, 0.7mm, 1.1mm > FPC: Shape design optional > IC: Focaltech, Goodix, Cypress, EETI > Interface: IIC, USB, RS232, SPI
	Assembly > Optical Bonding with OCA > Double faced adhesive tape

Product Application:

Telecommunication Devices	Telephone, Interphone, Smart Watch, Tablet PC, PDA
Consumer Products	Camera, DVD Player, Cell Phone, Game Player, Digital Photo Frame, E-Book Reader, Mp3 Player, MP4 PMP, Netbook PC
Technical Equipment	Elevator Controller, Industrial Machine, Security Monitor, POS
Office Automation	Printer, Scanner, Fax Machine, Desktop Monitor, Desktop Monitor
Home Appliances	Air-condition Display, Refrigerator, Video Doorbell, Smart Machine
Automobile Display	GPS, Protable Navigation, Video Player, Speedometer, Recorder
IT Products	Digital Video, Media Player, Advertising Machine
Medical Equipment	Ultrasound Machine, Medial Monitor, Medical Imaging, Healthcare
