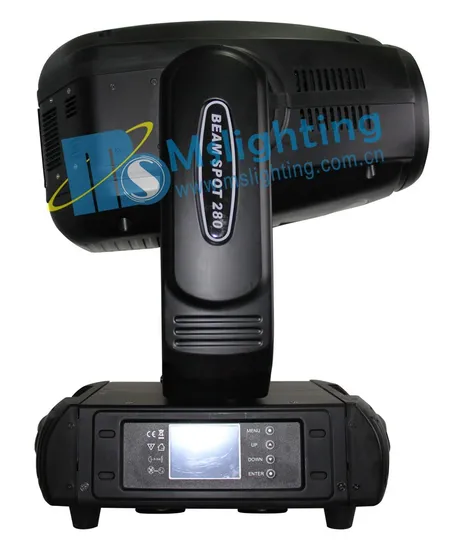

10r Hri 280W Copy Robin Pointe 3in1 Beam Spot Wash Moving Head
Basic Info.
Model NO.
MS 10R280DA
Emitting Color
Changeable
Control Channel
22CH
Strobe
Adjustable Speed Strobe
Control Mode
DMX512, Master /Slave Mode, Sound, Auto
IP Rating
IP20
Certification
CE, RoHS, SGS
Voltage
100V-240VAC, 50/60Hz
Lamp
Philps Hri 280W
Power
280W
Power Supply
Electronic Auto-Ranging
Ballast
Electronic
Function
Beam, Spot, Wash
Color
17 Color + Blank Color Wheel
Gobo
17 Fixed Gobo + 9 Rotation Gobo
Prism1
6-Facet Linear Prism Rotating in Both Directions a
Prism2
8-Facet Circular Prism Rotating in Both Directions
Zoom
5-20 Degree Spot
Transport Package
Carton/Flycase
Specification
Carton Size: 55*61*61cm Gw: 22kgs
Trademark
MSLighting
Origin
Guangzhou
HS Code
94054090
Production Capacity
100PCS/Week
Product Description
TECHNICAL INFORMATIONPower supply: Electronic auto-ranging,
Ballast: Electronic
Input voltage range: 100240 V, 50/60 Hz
Power consumption: 470 W at 230 V / 50 Hz
CE compliant
Function :beam,spot,wash
IP protection class:IP20
Lamp :OSRAM HRI 280W
Color temperature : 8000K
Average Lifespan: 2000H
Color : 17 color + blank color wheel
Gobo : 17 fixed gobo + 9 Rotation gobo
Prism : rotation 3-face prism.
Lens : high precision optical lens
Wash effect : adjustable Wash effects angle
Zoom range: 2.5°-10° beam application; 5° 20° spot
Dimmer/Shutter: 0-100% Full range dimming and variable strobe effect
Motorized zoom and focus
Pan/Tilt: X axis 540° Y axis 250°automatically accurate positioning
Beam angle: parallel beam angel 3.8°-45°
Strobe: Double lens strobe (0.5-9 times/ second)
Control mode: Standard DMX512, Automatic and Master/ slave mode
Channel: 17 CHs
Controller can open the lamp and reset, including delaying function
Weight: 18.5KG
Safety Devices:
Bipolar circuit breaker with thermal protection.
Automatic breaks in power supply in case of overheating or failed operation of cooling system.
Cooling: Forced ventilation with axial fans.
Body:
Aluminum structure with die-cast plastic cover.
Two side handles for transportation. Transportation and maintenance.
Working position: Functioning in any position
| Model Number: | MS-10R280DA |
| Lamp | Discharge short arc lamp with integrated reflector |
| Light Source: | Osram Sirius HRI 280 W |
| Lamp Life Expectancy | Standard mode (280 W) - 2.000 hrs, Eco mode (230 W) - 3.000 hrs |
| Power Consumption | 470 W at 230 V / 50 Hz |
| Input Voltage(V): | 90-250V ,50-60Hz |
| Average Lifespan | 2000H |
| Color temperature | 8000K |
| Power supply | Electronic auto-ranging, |
| Ballast | Electronic |
| Function | beam,spot,wash,Controller can open the lamp and reset, including delaying function |
| Beam mode | 75,250 lx @ 20 m distance |
| Spot mode | 82,400 lx @ 5m distance |
| Dichroic glass reflector | integrated with the lamp for maximising the light efficiency |
| Color temperature | 8000K |
| Color | 13 dichroic filters + white |
| Rotating Gobo wheel | 9 rotating, indexable and replaceable "SLOT&LOCK" glass gobos + open |
| Static Gobo wheel | 14 gobos + open |
| Prism 1 | 8-facet circular prism rotating in both directions at different speeds |
| Prism 2 | 6-facet linear prism rotating in both directions at different speeds |
| Frost effect | Separate, variable |
| Lens | high precision optical lens |
| Wash effect | Adjustable Wash effects angle |
| Zoom range: | 2.5°-10° beam application; 5° -20° spot |
| Dimmer/Shutter | 0-100% Full range dimming and variable strobe effect |
| Motorized | zoom and focus |
| Pan/Tilt | Pan/Tilt: X axis 540° Y axis 250°automatically accurate positioning |
| Pan/Tilt Resolution | 8/16 bit |
| Display | LCD Display |
| Control mode | Standard DMX512, Automatic and Master/ slave mode |
| Strobe | Double lens strobe (0.5-30times/ second) |
| DMX 512 CH | 23 CHs |
| DMX Data In/Out: | XLR 3Pin |
| POWER CON | IN & OUT |
| Electronic Dimmer: | 0-100% linear dimmer |
| warranty: | 2 year |
| Switch Power Supply | Built-in and auto switching |
| Power In: | Fixed |
| Drive Mode: | Constant Current |
| Cooling: | Entire casing as heat sink plus noiseless fans |
| Flicker Free | Refresh Rate >2000 Hz |
| IP Rating: | IP33 |
| Brand Name: | MSLighting |
| Shell colour | Black |
| Shell Material | Metal |
| Key point: | Temperature-protected handly |
| Weight: | 18.50 KG |
| Working Temperature | -40 °C- +60°C |
| Certification: | CE,EMC |
| Usage: | Theatres, stage , robust housing |
