60-200mm O. D Transformer Tape Wrapping Toroidal Winding Machine
| US$500.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GWTM-0118
Certification
RoHS, CE, ISO
Tape Width
10(8, 12, 15)
Max.Final Coil.O.D
60-200
Min.Final Coil.I.D
30
Max.Finalcoil Height
80
Controller Storage Capacity Programs
29 Sets
Max.Taping Speed
200rpm
Tape Spacing
Proportional Linkage
Supply Voltage
AC 220V(50Hz)
Mechanical Dimensions
550*500*1100
Weight
100kg
Transport Package
Export Standard Carton or Customize Strong Pallet
Specification
CE
Trademark
Grewin
Origin
China
HS Code
85043190
Production Capacity
100PCS
Product Description

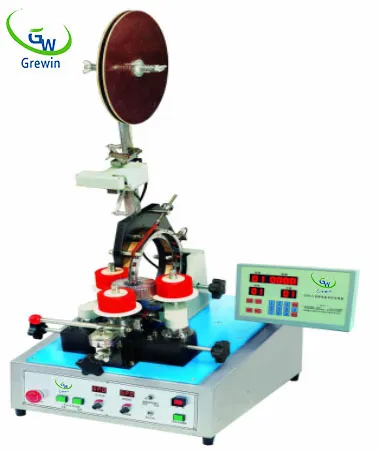

Product DescriptionAutomatic toroidal transformer winding machine adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-taping machine. it is used for wrapping the insulation tape on the toroidal core and windings. it is best suited to toroidal inductor, toroidal transformer, toroidal current transformer, toroidal coil, toroid choke coil, power inductors, power magnetics, UPS inductor, converter inductors, heavy toroidal core,etc.
Specification
| Tape width | 10(8,12,15) | Max.taping speed | 200rpm |
| Max.final coil.O.D | φ60-200 | Tape spacing | Proportional linkage |
| Min.final coil.I.D | φ30 | Supply voltage | AC 220V(50Hz) |
| Max.finalcoil height | 80 | Mechanical dimensions | 550*500*1100 |
| Controller storage capacity Programs | 29 (set) | Weight | 100kg |
GWTM-0118 (taping machine/Mag.OD.400)
(unit): mm
| Model | GMTM-750 | ||
| Tape width | 6 (8) mm | Max. taping speed | 250 rpm |
| Max. final coil O. D. | Φ80mm | Tape spacing | Proportional linkage |
| Min. final coil I. D. | Φ16mm | Supply voltage | AC 220V(50Hz) |
| Max. final coil height | 40mm | Mechanical dimensions | 550*500*1100 |
| Controller storage capacity programs | 29(set) | Weight | 93kg |
| Model | GMTM-850 | ||
| Tape width | 8(10, 12, 15)mm | Max. taping speed | 250 rpm |
| Max. final coil O. D. | Φ45 -200mm | Tape spacing | Proportional linkage |
| Min. final coil I. D. | Φ25mm | Supply voltage | AC 220V(50Hz) |
| Max. final coil height | 80mm | Mechanical dimensions | 550*500*1100 |
| Controller storage capacity programs | 29(set) | Weight | 100kg |
| Model | GMTM-0118 | ||
| Tape width | 10(8, 12, 15)mm | Max. taping speed | 200 rpm |
| Max. final coil O. D. | Φ60 -200mm | Tape spacing | Proportional linkage |
| Min. final coil I. D. | Φ30mm | Supply voltage | AC 220V(50Hz) |
| Max. final coil height | 80mm | Mechanical dimensions | 550*500*1100 |
| Controller storage capacity programs | 29(set) | Weight | 100kg |
| Model | GMTM-0218 | ||
| Tape width | 12(8, 10, 15)mm | Max. taping speed | 250 rpm |
| Max. final coil O. D. | Φ50 -200mm | Tape spacing | Proportional linkage |
| Min. final coil I. D. | Φ35mm | Supply voltage | AC 220V(50Hz) |
| Max. final coil height | 80mm | Mechanical dimensions | 550*500*1100 |
| Controller storage capacity programs | 29(set) | Weight | 100kg |
| Model | GMTM-0318 | ||
| Tape width | 15(8, 10, 12, 20)mm | Max. taping speed | 200 rpm |
| Max. final coil O. D. | Φ60 -200mm | Tape spacing | Proportional linkage |
| Min. final coil I. D. | Φ45mm | Supply voltage | AC 220V(50Hz) |
| Max. final coil height | 100mm | Mechanical dimensions | 550*500*1200 |
| Controller storage capacity programs | 29(set) | Weight | 100kg |
| Model | GMTM-0418 | ||
| Tape width | 15 (20, 25, 30)mm | Max. taping speed | 120 rpm |
| Max. final coil O. D. | Φ130 -650mm | Tape spacing | Proportional linkage |
| Min. final coil I. D. | Φ60mm | Supply voltage | AC 220V(50Hz) |
| Max. final coil height | 150mm | Mechanical dimensions | 900*600*1800 |
| Controller storage capacity programs | 29(set) | Weight | 240kg |
| Model | GMTM-0518 | ||
| Tape width | 15 (20, 25, 30)mm | Max. taping speed | 120 rpm |
| Max. final coil O. D. | Φ250 -800mm | Tape spacing | Proportional linkage |
| Min. final coil I. D. | Φ80mm | Supply voltage | AC 220V(50Hz) |
| Max. final coil height | 300mm | Mechanical dimensions | 1000*900*2200 |
| Controller storage capacity programs | 29(set) | Weight | 350kg |
| Model | GMTM-0618 | ||
| Wire diameter | 1.2-4.5 | Max. winding speed | 150 rpm |
| Max. final coil O. D. | Φ250 -1000mm | Wire spacing | Proportional linkage |
| Min. final coil I. D. | Φ80mm | Supply voltage | AC 220V(50Hz) |
| Max. final coil height | 320mm | Mechanical dimensions | 900*600*1350 |
| Controller storage capacity programs | 29(set) | Weight | 240kg |
| Model | GWJ-0961 | ||
| Tape width | 15(8,10,12,20) | Max. taping speed | 200 rpm |
| Max. final coil O. D. | φ65-430,φ55 | Tape spacing | Proportional linkage |
| Min. final coil I. D. | φ45-385,φ35 | Supply voltage | AC 220V(50Hz) |
| Max. final coil height | 80mm | Mechanical dimensions | 1000×950×780 |
| Controller storage capacity programs | 29(set) | Weight | 110kg |
Related Products
1.GWM-0119 Gear type toroidal coil winding machine
| Wire diameter | 0.70-2.50 | Max.winding speed | 200rpm |
| Max.final coil.O.D | φ60-200 | Wire spacing | Proportional linkage |
| Min.final coil.I.D | φ40 | Supply voltage | AC 220V(50Hz) |
| Max.finalcoil height | 100 | Mechanical dimensions | 550*500*780 |
| Controller storage capacity Programs | 29 (set) | Weight | 94kg |
GWM-0119(winding machine/Mag.OD.400)
(unit): mm
2.GWSM-0219B Gear type toroidal coil winding machine
| Wire diameter | 0.12-0.40 | Max.winding speed | 700rpm |
| Max.final coil.O.D | φ60-200 | Wire spacing | Proportional linkage |
| Min.final coil.I.D | φ20 | Supply voltage | AC 220V(50Hz) |
| Max.finalcoil height | 80 | Mechanical dimensions | 550*500*700 |
| Controller storage capacity Programs | 29 (set) | Weight | 83kg |
GWSM-0219B (winding machine/Mag.OD.400)
(unit): mm
2.GW-9751i high torsion coil winding machine
| Wire diameter | 0.50-1.60 | Machine Revolution | 0-3000rpm |
| Spread width | 200mm | Winding width | 200mm |
| winding motor | 1/2HP DC motor | Supply voltage | AC 220V(50Hz) |
| spread motor | stepping motor | Mechanical dimensions | 390*580*430 |
| Memory number | 999 | Weight | 32kgs |
GW-9751i (winding machine/Mag.OD.400)
(unit): mm
3.GW-9800 transformer coil winding machine
| Wire diameter | 0.08-1.00 | Machine Revolution | 0-3000rpm |
| Spread width | 200mm | Winding width | 200mm |
| winding motor | 1/8HP DC motor | Supply voltage | AC 220V(50Hz) |
| spread motor | stepping motor | Mechanical dimensions | 760*680*720 |
| Memory number | 999 | Weight | 32kgs |
GW-9800 (winding machine/Mag.OD.400)
(unit): mm
Why Choose Us
1.operating videos
2.24 hours technical support
3.1 year free Warranty 4.Free training.
5. OEM/ODM accept
Company Information and Profile
We-TIANJIN GREWIN GROUP is expert in machines lines for more than 31 Years. Our Grewin have ISO9001:2015 approvals.
Contect us
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.
