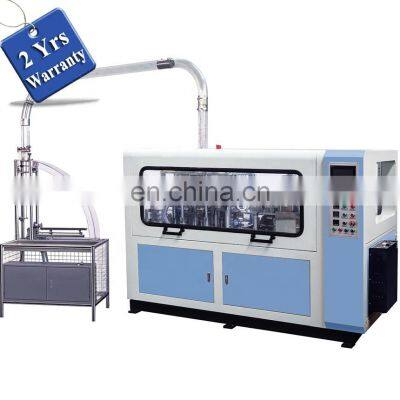

PC12H 12-OZ High Speed Automatic Disposable Paper Cup Making Machine Production Line by ultrasonic seal weld

Product Description

Product Description
PC12H 12-OZ High Speed Automatic Disposable Paper Cup Making Machine Production Line by ultrasonic seal weld
Videos
Video demonstration only for reference
Video :/watch?v=2gosx3vKiJU
Product Description
DESCRIPTION:
PC12H high speed paper cup forming machine comes with two turnplate, open intermittent indexing cam mechanism and gear transmission,longitudinal axis structures.The whole machine adopts automatic lubrication system,which makes all mechanical parts working much more smoothly.Cup side sealing is done by Switzerland Leister Heater to ensure side sealing stability ,bottom sealing by Switzerland Leister hot air device .Cup top curling has two steps,rotary curling and heating figuration,which makes the curling more stable and better appearance.The machine comes with PLC control system,sensorfailure detecting,and can stop working automatically if the machine has any problem,it can greatly improve operation safety and reducing labor cost.The machine can finish the whole process including paper feeding,side sealing,cup bottom punching & feeding, heating, knurling, cup-top curling, cup Stacker. It is the best choice for making paper cups ..
PARAMTERS:

Model	PC12H
Cup size	6~12 OZ 16-22OZ
Paper material	Single-sided, double-sided PE coated paper 210-380GSM
Mouth diameter	65-92mm
Bottom diameter	50-65mm
Cup height	60-170mm
Bottom depth	≤10
Angle	2-8o
Max Speed	90-100 pcs/min
Power supply	3phase, 380V, 50Hz
Total power	11KW
Weight	3580Kg
Packing size(L*W*H)	2280×1180×1700mm

Detailed Images
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Paper thickness in GSM
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
