Low Price Smoke Detector CD2011 for Fire Alarm System

Product Description

Product Description:
Product Summary:

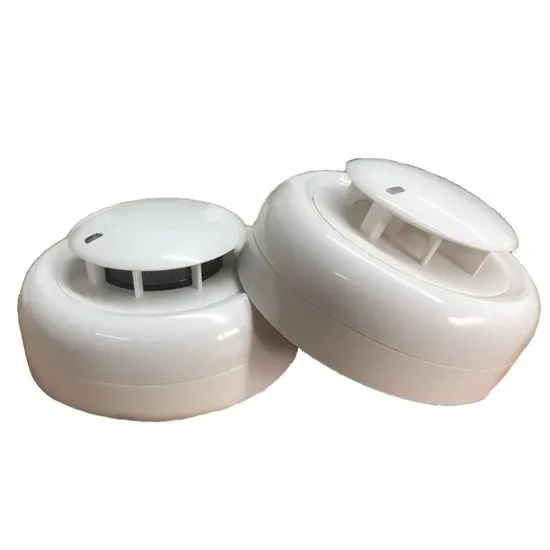

CD2010 serial is a conventional smoke detector adopting non-polarity 2-wire technology. The design incorporates a highly integrated 8 bit professional MCU which provides powerful analysis & judgment capacity and reliability, Through the firmware, the detector can automatically compensate the external environmental parameter changes, synthesize various information, carry on the interference flier, realize quick and accurate fire warning,
Product Features:
• 2-wire (LED Continuously Emitting Red Light)
• Durable sensor head, no need for replacement
• Wide voltage range, and stable output
• Easy installation
• Advanced detection and smoothing algorithms
• Sleek low-profile housing design
• Drift compensation
• Low cost, high performance
• Reliable early warning of a fire condition
• Five-year limited warranty
Product Specification:

Model	2/4 wire	Voltage DC (Min./Max.)	Standby Current	Smoke Sensitivity	Alarm Current	Reset Time	Reset Voltage.
CD2010/CD2011	2	10~33V	<50μA@24V	0.1~0.16dB/m	37mA±2mA@24V	less than 2 seconds	less than 3 volt

Technical Specification:

Smoke Sensitivity	0.1~0.16dB/m(EN standard)
Storage Temperature Range	-20°C to 70°C
Operating Temperature Range	-10°C to 55°C
Humidity	0 to 93% RH, no condensation or icing
Dimensions	93.5mm (dia.) x 46.2mm (ht) with base
Weight	84.5g/set with base

Packaging:100pcs/canton or packed according to customers'request
Shipping Details: 25days
