Gl1613 Gl2016metal Milling Boring Drilling Tapping CNC Gantry Vertical Machine Center

Product Description

Product Description
This machine tool adopts a column-beam integrated design and is suitable for CNC milling, boring, drilling, and tapping. It can be widely used in mechanical processing fields such as aviation, aerospace, rail transportation, automobiles, and molds.
Product features:
1.The main components are optimized by finite element analysis and made of high-strength cast iron, with resin sand molding, and undergo aging, sandblasting, and tempering processes to ensure the long-term stability of the machine tool's precision.
2.The gantry structure shortens the distance from the spindle center to the column, reduces vibration during heavy cutting, and improves the rigidity of the machine tool. The beam is designed in a trapezoidal form, with strong rigidity and a structure suitable for heavy cutting.
3.High-speed and high-rigidity spindle unit combined with servo spindle motor; X/Y/Z axis use high-torque servo motors.
4.X/Y/Z axis use Taiwan high-precision and high-strength ball screws with special bearings for the screw shafts and high-precision locking nuts.
5.X/Y guide ways adopt Taiwan HIWIN roller linear guide ways, Z-axis uses hard guide rail, the fixed surface undergoes high-frequency induction hardening treatment, and precision grinding; the sliding surface uses high-strength wear-resistant plastic tape lining treatment.
Standard configuration:
-GSK25i Control System Fanuc Original Driver Motor and main spindle motor;
-Taiwan Arm type tool changer 24T;
-Taiwan HIWIN/PMI ball screw and roller guide ways;
-Full enclosure machine guard and Stainless steel splash guard;
-Taiwan BT50-6000rpm Belt type spindle;
-Two screws-+chain chip conveyor;
Product Parameters

Model		GL-1613	GL-2016
Travel
X axis(The worktable moves laterally)		1600mm	2000mm
Y axis(The saddle moves longitudinally)		1300mm	1600mm
Z axis(The ram moves vertically)		700mm
Distance from spindle nose to worktable surface(BT40)		100-800mm	120-820mm
Distance from spindle nose to worktable surface(BT50)		65-765mm	85-785mm
Gantry width		1350mm	1650mm
Feed
X rapid feed		24m/min	20m/min
Y rapid feed		20m/min
Z rapid feed		20m/min
Cutting feed		1-10m/min
Three-axis screw(C3 level grinding)		5012/5012/5012
Three-axis guide rail		45 roller /45 roller/Hard track
Three-axis servo motor	SYNTEC	28/18/18B N.m	28/28/28B N.m
	FANUC	βiS30/22/22B	βiS30/30/30B
Table
Table size		1700×1000mm	2200×1300mm
Max load		2000Kg	3000Kg
T slot		5×18×190mm	7×22×190mm
Spindle
Type		BT40/BT50-150 Belt	BT40/BT50-150 Belt
Spindle speed		8000/6000 rpm	8000/6000 rpm
Spindle motor	SYNTEC	15/18.5KW	15/18.5KW
	FANUC	βil15/8000	βil15/8000
Accuracy
accuracy(JIS)		±0.005/300mm
repeatability(JIS)		±0.004mm	±0.005mm
Other
net weight		10000Kg	12000Kg
size		4600×3000×2900mm	5600×3300×2900mm

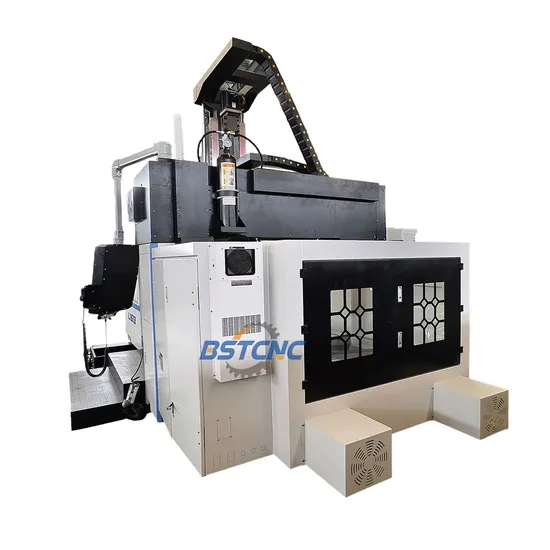

Detailed Photos
