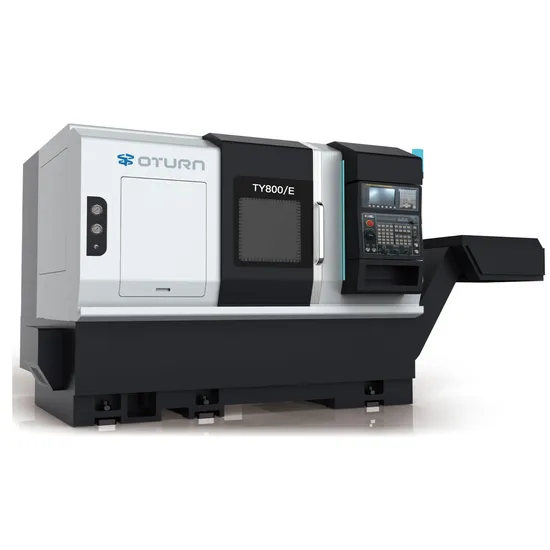

Oturncnc High Precision CNC Slant Bed Turning Lathe Ety800 High Precision Slant Bed CNC Lathe

Product Description

Product Description
The TY750LA series CNC lathe adopts a box-shaped structure bed, which is made of high-strength HT300 cast iron. It has a dense structure, good strength, appropriate hardness, low friction coefficient, and self-lubricating properties. The overall box structure of the base bed greatly enhances the overall rigidity of the machine tool. And stability, and has the function of absorbing vibration, reducing tool loss and improving workpiece quality. It has a high performance-price ratio, the layout of the whole machine is compact and reasonable, and its high speed, high precision, high rigidity and rich configurations provide users with high efficiency and high reliability guarantee in use.
1. Main features of this machine:
1. Adopting a 30° inclined layout and an integrated structure of the bed base, which greatly improves the bending and torsional rigidity of the machine tool during operation. The high rigidity and high stability of the integrated bed base provide high precision for the entire machine. A strong guarantee.
2. The spindle unit is an independent sleeve type. The spindle system has undergone strict dynamic balance testing and has high precision, good accuracy retention, small thermal deformation, and good thermal stability. The maximum speed can reach 4500rpm, and the nose deflection accuracy is within 0.003MM. The front end of the shaft uses a large-diameter, high-precision double-row roller bearing with a combined angular contact ball bearing structure. The optimal span two-point balance support design can withstand radial and axial loads, and can also provide users with high-speed precision work. It can also perform low-speed and heavy cutting, and is especially suitable for mass production of products with complex shapes, high precision requirements, and high smoothness.
3. The hydraulic tailstock is a high-rigidity integral tailstock that can eliminate vibrations, has excellent stability, is convenient, fast and reliable.
4. The standard configuration of high-performance servo turret provides users with convenient, practical and reliable processing components.
5. The feed system is directly driven by a servo motor, with good rigidity, precision and dynamic response characteristics. The machine tool is equipped with THK roller linear guide, and the maximum rapid movement speed can reach: 24m/min.
6. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
7. It adopts a Taiwan rotary chuck cylinder and is equipped with an automatic chip removal device. The chip removal method can be selected from the side or the rear direction to remove chips and separate waste residue to ensure that the inside of the water tank is clean and free of fine residue structural design. It can greatly reduce the operator's labor intensity and achieve safe and efficient production. All the above functional components can be controlled programmatically, and various special fixtures can be designed and installed according to the special requirements of users. Product Parameters

Item	Unit	TY800/E
Max. turning diameter over bed	mm	Φ700
Max. processing diameter	mm	Φ650
Max. processing diameter over tool holder	mm	Φ350
Max. processing length	mm	790
Spindle nose	type	A2-6
Max. speed of spindle	rpm	4000
Oil cylinder/chuck	lnch	10"/8″
Spindle bore diameter	mm	Φ79
Bar diameter	mm	Φ65
Mechanical spindle motor power	kw	15/18.5
Spindle motor torque	N.m	134-196
X/Z travel	mm	350/830
X/Z axis linear guide specification	spes	45 roller
X/Z shaft wire specifications	mm	4012
X/Z motor power	Kw	3.0
X/Z positioning accuracy	mm	±0.005
X/Z repeat positioning accuracy	mm	±0.003
X/Z axis moving fast	m/min	24
Turret type	pcs	12T
Outer diameter tool holder specification	mm	25X25
Inner diameter tool holder specification	mm	Φ40
Adjacent tool change time	sec	0.2
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
Hydraulic tailstock	/	Hydraulic
Maximum stroke of tailstock	Mm	630
Tailstock sleeve taper hole	type	Morse 5#
Sleeve travel	mm	100
Machine dimension	mm	3500x2110x2100
Machine weight	kg	6700
Cutting fluid tank volume	L	250
Cooling water pump power	W	750
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricant tank volume	L	2
Automatic lubrication pump motor power	W	50

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
