Two Rollers Rubber Mixing Mill Xk-450
| US$4,200.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
rubber mixing mill xk-450
Application Area
Rubber
Certification
CE, ISO
Condition
New
Stirring Type
Spiral
Working
Diffusion Mixer
Certificate
CE
Identification
ISO9001: 2008
Rubber Mixing Mill
Open Mixing Mill
Rubber Mixing Mill Price
Open Rubber Mixing Machine
2 Roll Mill
Rubber Mixing Mill Price
Rubber Two Roll Mixer
Rubber 2 Roll Mill
22 Inch Rubber Mixing Mill
Rubber Mill
Open Mill Rubber Mixing Machine
Lab Rubber Two Roll Mill
Two Roll Mill Price
Rubber Mixing Mill for Rubber Sheeting
Open Mixing Mill for Rubber
Rubber Mixing Mill Xk-400
Mixer Type
Agitator
Layout Type
Horizontal
Mixing Drum Shape
Disc
Operating type
Continuous Operating
Transport Package
Wooden Case or According to Your Needs
Specification
Rubber & Plastic Product
Trademark
GUANGYUE
Origin
China(Mainland)
HS Code
847780000
Production Capacity
30sets/Month
Product Description

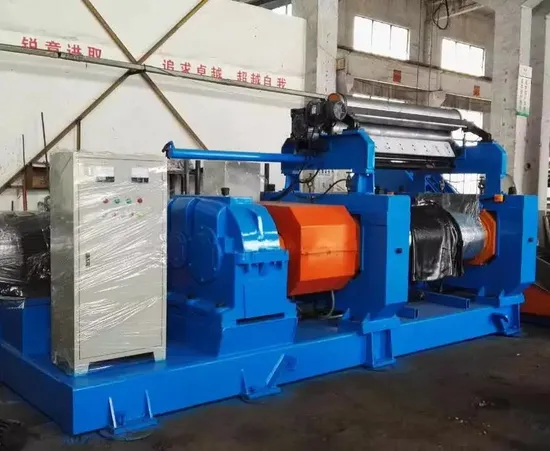

Two rollers rubber mixing mill xk-450Structure features:
This machine is composed of rolls, bearings, frame, frame cap, transmission device, nip adjuster,
lubrication device, temperature regulator of rollers, emergency stop device and braking device, etc. The transmission is mainly conducted by the main motor, which drives reducer, and then the two coupling make the two rollers run. The speed of rollers is adjustable and can be directly showed on the control panel. Rollers are protected
by a safety shim, and rollers bearings are lubricated with manual-operation/power
driven through a grease pump.
Technical parameter:
Specification&type | Roll diameter ×Length(mm) | Linear speed of front (m/min) | Roll friction ratio | Batch volume (kg) | Motor power (KW) | Max.nip adjusting (mm) | Overall dimension (mm) | Weight (t) |
X(S)K-160 | 160×320 | 8.95 | 1:1.35 | 1-2 | 5.5 | 4.5 | 1120×920×1295 | 1.1 |
X(S)K-200 | 200×500 | 19.50 | 1:1.05 | 8 | 11 | 5 | 2055×900×1165 | 2.5 |
X(S)K-250 | 250×620 | 15.20 | 1:1.10 | 10-15 | 18.5 | 8 | 3220×1500×1290 | 3.8 |
X(S)K-360 | 360×900 | 16.26 | 1:1.25 | 15-20 | 30 | 10 | 3920×1650×1725 | 5.53 |
X(S)K-400 | 400×1000 | 18.65 | 1:1.27 | 25-35 | 40 | 10 | 4380×1710×1880 | 8.14 |
X(S)K-450 | 450×1200 | 23.85 | 1:1.27 | 30-50 | 55 | 8 | 5050×1920×1870 | 13 |
X(S)K-560 | 560×1530 | 27.61 | 1:1.315 | 50-60 | 95 | 12 | 5830×2300×2000 | 22 |
X(S)K-550 | 550×1500 | 27.175 | 1:1.25 | 50-65 | 90(110) | 15 | 6040×2100×1625 | 20 |
X(S)K-610 | 610×1830 | 28.7 | 1:1.25 | 90-120 | 160 | 15 | 6750×3040×1743 | 35 |
XKY-660 | 660×2130 | 32.45 | 1:1.09 | 165 | 185 | 15 | 7450×3660×2080 | 45 |
XKR-660 | 660×2130 | 28.60 | 1:1.24 | 165kg | 250 | 15 | 7465×3660×2080 | 45.6 |
X(S)K-710 | 710×2200 | 31.90 | 1:1.09 | 350kg | 280 | 15 | 7180×3805×3015 | 50 |
X(S)K-760 | 760×2540 | 33.23 | 1:1.09 | 350kg | 315 | 15 | 7180×3805×3015 | 58 |
X(S)K-810 | 810×2540 | 31.90 | 1:1.09 | 350kg | 355 | 15 | 7180×3805×3015 | 68 |
