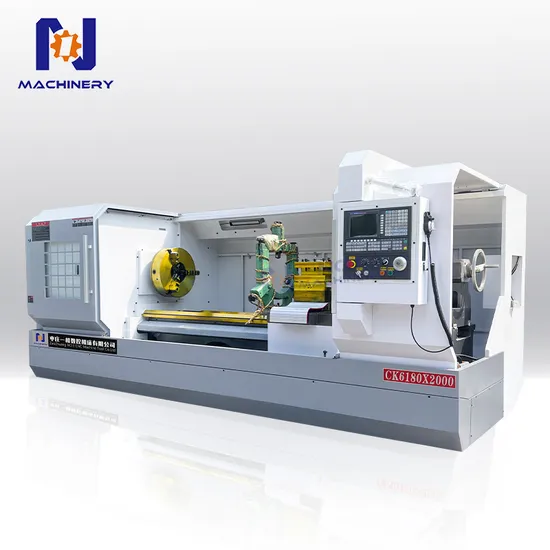

Ck6180 CNC Lathe Turning Machine Lathe CNC Machine Flat Bed CNC Lathe Machine Price

Product Description

Product Description
1.CK6180 CNC lathe is a high-precision, multi-functional processing equipment, adopts mechatronics design, compact structure and strong stability.
2. Equipped with Guangshu or Kanedi CNC system, supports automatic tool setting, tool compensation and clearance compensation, and is flexible to operate.
3. The spindle adopts precision bearings, with high rotation accuracy and low noise.
4. Supports a variety of processing such as inner and outer circles, end faces, cones, threads, etc., suitable for steel, cast iron and non-ferrous metals.
5. Ball screw transmission and servo motor drive ensure high-precision and efficient processing, and hydraulic chuck and inverter realize stepless speed change of spindle.
6. The bed guide rails are quenched, with strong wear resistance, equipped with automatic lubrication system, and convenient maintenance.
Product Parameters

Type	Unit	Parameter
Maximum turning diameter of bed	mm	Φ800
Maximum turning diameter of carriage	mm	Φ450
Maximum processing length	mm	2000
X/Z axis travel	mm	340/2000
X/Z axis minimum displacement unit	mm	0.001
Spindle hole	mm	Φ105
Spindle speed series		4-speed stepless speed change
Spindle speed limit	rpm	30-84/53-150/125-350/300-835
Main motor power (frequency conversion)	kw	11
Tool post form		4-station electric rest
Tool bar size	mm	32*32
Repeated positioning accuracy of rest	mm	≤0.004
Diameter of tailstock sleeve	mm	Φ100
Tailstock sleeve stroke	mm	250
Taper of tailstock sleeve		MT6
N.W	T	5
Machine size (length×width×height)	mm	3800*1820*1780
Electricity demand (power/current)	Kw/A	11KW/30A
Rail width	mm	600

Detailed Photos





Packing & Delivery
Company Profile

Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.

FAQ
1. who are we?
We are based in Shandong, China, start from 2016,sell to Domestic Market(65.00%),Western Europe(10.00%),Mid East(10.00%),Africa(3.00%),South America(2.00%),Eastern Europe(2.00%),South Asia(1.00%),Eastern Asia(1.00%),North America(1.00%),Oceania(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Southeast Asia(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Numerical Control Machine, Metal Cutting Machine Tool, Metal Forming Machine Tool, Machining Center, CNC Lathe
4. why should you buy from us not from other suppliers?
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
