New Zoomlion Dongfeng 4*2 Compactor Garbage Truck 12 Tons Garbage Compactor Trucks Specialized Vehicle

Product Description

Pay Attention please!
Our company mainly sells used sanitation trucks! Different prices for different years! Please contact us for details!
Product Description
Zoomlion 3.2CBM 4*2 Compactor Garbage Truck Garbage Compactor Trucks Specialized Vehicle
ZBH5122ZYSDHE6 compressed garbage truck is a suitable product for the collection and transportation of "wet garbage" after garbage classification, and can also be used for the collection and transportation of mixed domestic garbage.
It is beautiful in appearance, excellent in performance, advanced in operation and control, and adopts bidirectional compression technology and non-leakage garbage collection and transportation technology to complete the collection and transfer of urban and rural residents' domestic garbage. There is no sewage leakage in the collection and transportation process, and the loading capacity is strong, and the performance is superior. Functional profile
It has many functions such as garbage collection, automatic garbage loading and compaction, garbage transfer and dumping.
Scope of application
The product is suitable for urban residential communities, institutions, colleges and universities using 120L, 240L, 660L standard plastic garbage collection and transport, but also suitable for garbage moisture content of high areas of wet garbage collection and transport.
The product is not suitable for the collection and transfer of construction waste, industrial waste and kitchen waste.
Product Parameters

Item		unit	Parameters
Vehicle parameters	Vehicle mass	kg	9295
	Maximum Gross Mass	kg	12490
	Rated mass	kg	3000
	Wheelbase	mm	3800
	Overall dimensions (L×W×H)	mm	7555×2520×3335
	Effective volume of dumpster	m3	12.5
	Sewage storage volume of the box (L)	L	3200
	Minimum ground clearance	mm	240
	Approach/Departure Angle	°	14/13
Chassis parameters	Chassis model, category, production enterprise	DFH1120B4, Class II, Dongfeng Commercial Vehicle Co.
	Engine model, manufacturer	DFH1120B4, Class II, Dongfeng Commercial Vehicle Co.
	Rated engine power	kW/(r/min)		136/2400
	Number of passengers	man		3
Operational performance	Compression cycle time	s	≤15
	Loading cycle time	s	≤14
	Unloading cycle time (s)	s	≤55
	Hydraulic system pressure	Mpa	18 (large pump)/18 (small pump)
	Control mode	/	automation
Driving performance	Maximum speed	km/h	89
	Maximum climbing angle	%	30
	Minimum turning diameter	m	17.7

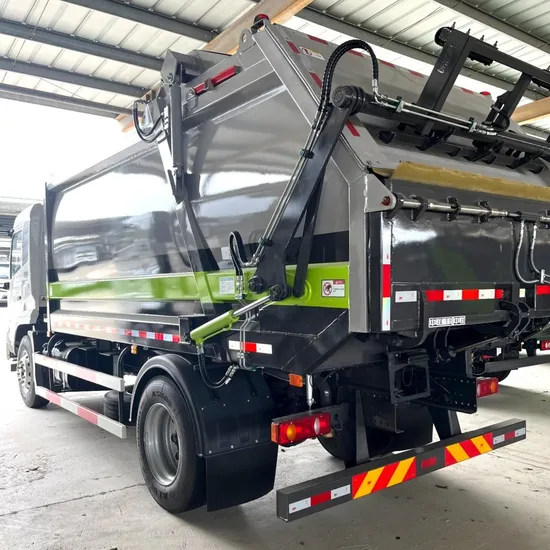

Detailed Photos
The main advantages of the product
1. Superior performance
Ship type fully closed box design (patented technology), closed without dripping
(1) The industry's first "ship-type tail box", combined with a rear door with sealing function (sealing gap adjustable), with strong sewage capacity; At the same time, compared with the traditional rear-loading compression garbage truck, the vehicle uses an innovative internal filling mechanism to replace the filling device, which solves the problem of "running, bubbing, dripping and leaking" commonly occurring in the current garbage collection and transfer process.
Strong sewage capacity
The "boat shape" formed by the lifting of the bottom of the rubbish bin has a volume of 3.2 cubic meters, which has a strong sewage capacity.
Fully enclosed design
The box is fully sealed design, and the tail feeding port is designed with a sealed cover to prevent rainwater infiltration, garbage drifting and odor spilling.
(2) Innovative built-in efficient filling mechanism (patented technology), large loading capacity, high efficiency
Adopt the classical principle of freedom of compaction, innovative mechanism design, achieve two-way compression, high garbage compression ratio, strong loading capacity, compared with the previous generation by 30%;
High compression operation efficiency, compression operation cycle time less than 15s.
(3) High level feeding mechanism (patented technology), safe and reliable, wide applicability
The charging mechanism adopts a patented technology that the cylinder drives the press barrel plate to implement the press barrel, which eliminates the risk of dropping the barrel that may occur during the feeding operation, and is safe and reliable. Meet 240L/120L plastic drum waste collection, wide applicability.
(4) non-linear rolling push discharge technology (patented technology), discharge without residue
The shovel adopts the "roller type" structure, and moves along the "straight line + circular arc" track inside the trash can under the action of the shovel cylinder to complete the unloading operation. Through the reasonable matching design of the "straight + circular arc" track on the inside of the garbage bin and the arc of the rising section of the garbage bin bottom, it can ensure that the clearance between the bottom edge of the shoveling and the bottom of the garbage bin is evenly matched during the unloading process to avoid the occurrence of garbage leakage.
(5) One-button automatic sewage system (patented technology), worry-free drainage
New design of one-click automatic sewage system. There is no need to get out of the car when unloading, the one-click operation in the driver's room, the sewage is discharged with the garbage, and there is no sewage residue after unloading.
(6) Latch locking mechanism (patented technology), safe and reliable
The opening and closing of the dumpster rear door and the rear door latch are driven by the automatic control of the cylinder, which is intelligent and reliable.
2. Good quality
(1) Strong corrosion resistance and wear resistance
The key parts of the product are made of high-quality weathering steel with strong corrosion resistance, high ultimate strength, strong corrosion resistance and long service life, especially suitable for corrosive working environments.
(2) Advanced manufacturing technology, excellent production
Using cutting forming equipment, tooling, mold and welding robot equipment, combined with advanced technology, the product production precision is high, consistency is good, quality is guaranteed, reliable and durable.
3. Safe and reliable
(1) Configure alarm device
The equipped sound alarm system can give an audible warning during unloading and maintenance operations, prompting the operator to operate with caution.
(2) Configure the emergency stop button
The emergency stop button is set in the operation box on the right side of the dumpster tail, which can make the garbage truck movement mechanism stop in any state or any position to ensure the safety of operators and equipment.
(3) compaction mechanism safety protection design
The lifting cylinder of the filling mechanism is designed with a balancing valve. Even if the oil pipe bursts, the filling mechanism will not suddenly drop and cause malignant accidents; The box body is provided with a safety support rod to avoid the fall of the filling mechanism.
(4) Configure color video rear-view system
Color video rearview system is configured to ensure the safety of driving and operation.
FAQ
1. Q: How about the quality of your trucks?
A: Wuhan Ring Valley Environment mainly sells medium and high-end sanitation trucks, no matter the chassis, engine and so on are all belong to the top equipment. Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates.
2. Q: Is there any advantages of your price?
A: We don't only have new truck but a large selection of used trucks. Different products in different years are available at different prices. We'll be sure to help you find the best vehicle in suitable price.
3. Price term: FOB, CIF.
4. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
5. Delivery time: 7-20 working days after payment is received.
6. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
If you have any other questions, please feel free to contact us at any time.
