Auto Exposure Machine Exposure Machine UV Exposure machine
| US$72,000.00-82,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
UVLED-A610
Usage
Semiconductor, Microelectronics, PCB Exposure
Type
Plate Exposure
Page
Double Faced
Automatic Grade
Semiautomatic
Product Type
Machine
Proximity Exposure
Vacuum Contact
Feature Size
2mil
Weight
1500kg
Power
AC380V
Maximum Machining Size
550*650mm
Minimum Machining Size
305*350mm
Transport Package
Standard Package, Wooden Package, Vacuum Package
Specification
L2400*W1550*H2170mm
Trademark
xinguanghui
Origin
Shenzhen
HS Code
8486309000
Production Capacity
500sets
Packaging & Delivery
Package Size
260.00cm * 170.00cm * 210.00cm
Package Gross Weight
1600.000kg
Product Description
Product Description

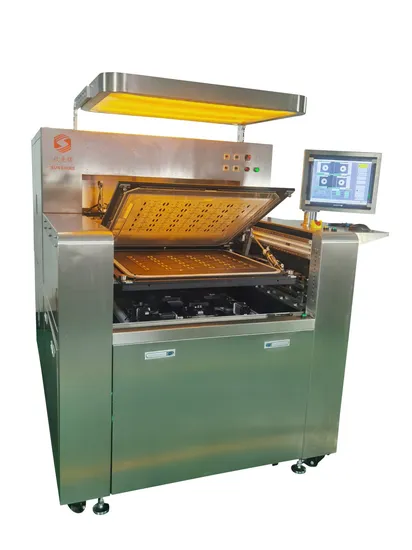

4ccd Auto line Exposure Machine
| product model | UVLED-A610 | |
| Production specifications | PCB size | 305*350~550*650(mm) |
| Flim size | 610*710(mm) | |
| PCB thickness | 0.1~3.3(mm) | |
| intensity of light source | >15mw/cm2 | |
Working table | Exposure worktops | Double frame alternating operation |
| Exposure way | Double-sided exposure | |
| mesa structure | Merra + glass | |
| Mesa material | Japanese omron PLC + touth screen control | |
Light source system | Light source type | 365nm high-power UV LED |
| Light source output power | >1.5KW/ lamp | |
| Light source structure | Copper base PCB board Array light group | |
| uniformity | >=85% | |
| Parallel half Angle | <2º | |
| cooling-down method | hydrocooling | |
Counterpoint system | CCD quantity | 4pcs |
| CCD Mobile way | Automatic movement | |
| Contrast image examination | PCB board and The upper and lower negatives are absorbed Post-counterpoint check | |
| plate fixed form | Double-groove vacuum adsorption | |
| Installation mode of negatives | Automatic installation / manual installation | |
| Exposure way | Outer counter-position exposure / inner counter-position sandwich exposure | |
| Mechanical repetition accuracy | ±12.5μm | |
| Image read accuracy | ±5μm | |
productive power | capacity(do not contain cleaning time) | 2~4pieces/min |
| Contrast mechanical accuracy | ±15μm | |
| Light resistance type | Dry film / wet film selectable | |
| Display the line resolution ability after the picture | 3mil/3mil | |
| control system | operation interface | Large touch-screen operation interface |
| Control hardware | Industrial PC + motion control card,High reliability and stability | |
| produce requirement | The way of loading and unloading | Artificial take and put |
| Production plate material placement requirements | Hanging pin production,Multiple pINs are optional | |
complete set requirement | current source | 3 Phase AC380V 50Hz 10KW |
| External air source | >=5kg/ cm2 60-180L/min | |
| Environmental temperature and humidity | 22±2ºC,humidity 55%±5% Clean environment | |
| External cooling water | >=4kg/ cm2,40L/min,temperature 7-12ºC | |
| filter system | 5000Clss Efficient filter | |
| Main material | SUS304 National standard plate | |
other | Machine size | L2400*W1550*H1950mm |
| Machine weight | 1500KG | |
