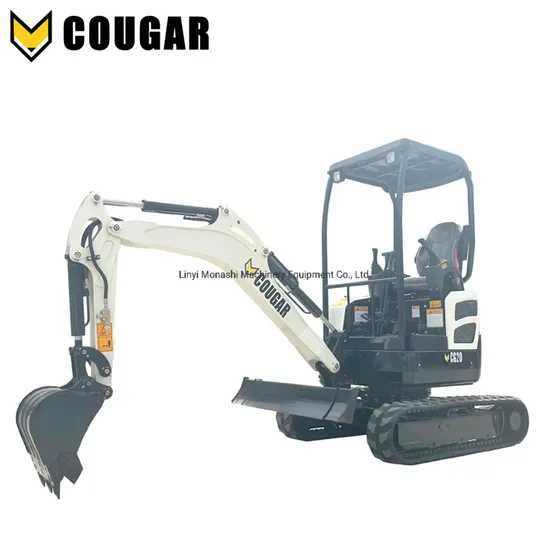

Heavy Duty Cougar Cg20 2.0t Hydraulic Crawler Excavator (14KW)

Product Description

ABOUT US
Our company offers a diverse array of products designed to meet your multifarious demands. We steadfastly adhere to the management principles of
"quality first, customer first, and credit-based" since our inception, always striving to meet and exceed the
potential needs of our valued customers. We are sincerely willing to cooperate with enterprises worldwide to
achieve a win-win situation, especially in the context of the unstoppable trend of economic globalization.
The COUGAR Equipment is an innovative machine, engineered to significantly reduce costs and improve the
environments where people live and work. Designed to replace hand labor, the COUGAR offers a cost-effective,
terrain-friendly solution for landscapers, irrigation contractors, plumbers, electricians, and property owners as they dig,
trench, till, auger, demolish, place materials, and perform a multitude of other essential tasks.
All steel parts are built in-house, ensuring complete oversight and control over our equipment production and
quality. By manufacturing the entire machines at one location, we have achieved substantial savings, enabling us to offer
high-quality wheel loaders and construction machinery at exceptionally competitive rates. This control also allows us to
make custom modifications to our equipment as requested by our customers.Recommend model: CG20, CG827, CG823, CG8810, CG8818, CG829, CG830, CG858, CCG18, CG10, CCG150, CG9075, CG130
SPECIFICATIONS:

ENGINE
Emission Standard	Euro V/ EPA4
Make	KUBOTA
Model	D1105
Power /Rotation speed	14kw(19HP)@2000rpm
Number of cylinder	3
TRACK SYSTEM
Maximum Travel speed	2.5/3.5km/h
Width of track shoe	230mm
Number of track shoe per side	38pcs
Number of upper roller per side	1
Number of bottom roller per side	3
PERFORMANCE PARAMETER
Standard Bucket capacity	0.07m³
Swing speed	9 rpm
Max. Grade ability	35°
Maximum Bucket digging force	18KN
Maximum Arm digging force	11KN
Hydraulic system pressure	21.5Mpa
Machine weight	2000kg
MACHINE SIZE
Overall dimension (L*W*H)	3555mm*1300mm*2290mm
Axle base(Track length on ground)	1230mm
Track gauge	760mm
Min.Ground clearance	150mm
Swing radius at tail	650mm
WORKING RANGE
Maximum Digging height	3700mm
Maximum Dumping height	2440mm
Maximum Digging depth	2400mm
Maximum Vertical digging depth	2025mm
Maximum Digging radius	4040mm
Minimum swing radius	1610mm
Maximum Lifting height of blade	240mm
Maximum Cutting depth of blade	270mm
Boom swing angle(Left)	75°
Boom swing angle(Right)	45°

Details Images

	HYDRAULIC QUICK HITCH Optional Attachments:Hydraulic hammer,Auger Drill bits, Ripper,Rotary Screen Bucket,etc
	Boom cylinder protection board
	Swing Broom
	WARNING LIGHT

Packing & Delivery

PACKAGE (1) Iron frame with plywood, LCL ship.
(2) Wholesale package: Nude pack, 4 sets/20GP Nude pack, 8 sets/40GP
FAQ
Q1: Are you the manufacturer or a trading company? We are the manufacturer of the COUGAR skid steer loader, mini loader, excavators, and various attachments. We also own a trading company. 1) We provide excellent service with professional international trade expertise.2) Our prices are highly competitive, backed by outstanding quality.
Q2: Do you offer OEM or ODM services? What is the MOQ? Yes, we offer both services. The MOQ is 1 unit!
Q3: What is the lead time? How long until I receive the equipment after payment? 1) For customized machines, the lead time is approximately 14 days.
2) Standard machines in stock can be delivered immediately upon receiving your payment.
Q4: What is the warranty? 1) The COUGAR equipment's engine, hydraulic pump, valve, motor, etc., come with a 1-year global warranty, which can be serviced locally.
2) We offer online video support, free spare parts, video technical support, field maintenance, repair services, and lifetime service for Cougar machines.
Q5: How can I make a payment? 30% T/T in advance as a deposit, 70% T/T before shipping.
- Ensure all Beneficiary and Bank details are correct when sending a Bank Transfer. - Never send a bank transfer to an account other than the one provided above. - Note that our billing details will never be modified or changed.
