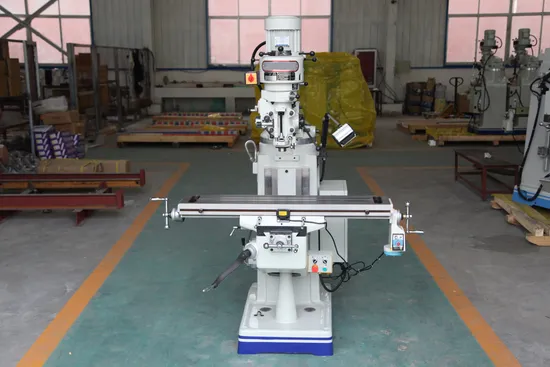

Vertical Universal Arm Type Turret Milling Machine X6323A, X6323b
| US$2,500.00 | 1 Piece (MOQ) |
Basic Info.
Type
Worktable Milling Machine
Object
Hardware
Structure
Bed type
Milling Cutter Type
Cylindrical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
W/Case
Specification
X6323A, X6323B
Trademark
Allway
Origin
China
HS Code
84595900
Production Capacity
1000PCS/Year
Product Description
Knee type unisersal milling machine, with auto feeding worktable, vertical milling head.| Turret Milling Machine X6323A,X6323B Feature |
| ·Heavy, solid model made of high-grade casting |
| ·All axes with adjustable dovetail slideways |
| ·Mill head can rotated and tilted |
| ·Adjustable gibes on table |
| ·Accurate position, good rigidity, big cutting power |
| ·Automatic spindle sleeve feed |
| Specifications | X6323A | X6323B | |
| Table size | 230x1067mm(9"x42") 230x1246mm(9"x49") | ||
| Table travel | Longitudinal | 670/850mm | 610/790mm |
| Cross | 310mm | 310mm | |
| Vertical | 390mm | 390mm | |
| T-slot No. and size | 3x16 | 3x16 | |
| Ram travel | 315mm | 315mm | |
| Distance from spindle nose to table surface | 0-350mm | 0-350mm | |
| Spindle taper | Standard R8(ISO30/ISO40 optional) | ||
| Spindle travel | 127mm | 127mm | |
| Spindle speed | 50HZ | (16 steps) 65-4500rpm | |
| 60HZ | (16 steps) 80-5440rpm | ||
| Optional | Variable 60-4200rpm | ||
| Auto quill feed | 0.04/0.08/0.15mm/rev(0.0015"/0.003"/0.006"/rev) | ||
| Spindle motor | 2.25KW(3HP) | 2.25KW(3HP) | |
| Head swivel right to left | 90° | 90° | |
| Head tilting front to back | 45° | 45° | |
| Net weight | 1000kg | 1060kg | |
| Standard Accessories | Optional Accessories | |
| Draw bar | X/Y/Z axis power feed | |
| Tool box and tools | Air drawbar system | |
| Working lamp | Clamping kit | |
| Electric box | Mill chuck set | |
| Handle oil pump | Coolant system | |
| Chip tray | ||
| Hang up panel | ||
| Automatic lubrication oil pump | ||
| 3 axes with ball screws | ||
| Spindle protection with power off | ||
| Worktable protection with power off | ||
| DRO | ||
| Vice |
