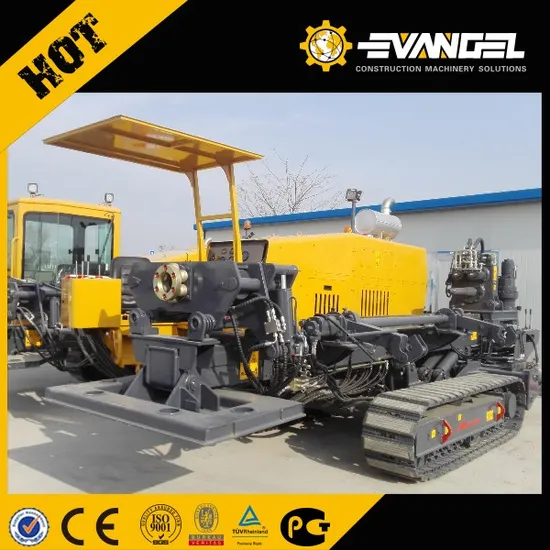

Horizontal Directional Drill (XZ1000) Water Drilling Rig Machine Price

Product Description

Main Features:
Rigid track, truck-carrying type, travel controlled by wire, quick and convenient site transfer.
The Cummins turbocharged engine has large power reserve, ensuring the thrusting power and the need in emergent conditions.
Advanced load sensing control and electro-hydraulic proportional control technology, imported hydraulic parts, and independent radiating system, ensure energy saving, reliable and efficient work.
Driving head slewing and gear rack push-pull system, 2 gear stepless speed adjustment, and high work efficiency.
Equipped with 3.2 t auxiliary hoist machine, the installation and removal of drill pipe is easy and efficient.
2 seats, all day cab, color monitoring instrument, comfortable to operate.
Interlock when get on or off the machine, automatic protection under high pressure, engine and hydraulic parameter monitoring and alarming, effectively protect the machine.
Manual control system is available for special conditions, and this ensures safety during operation.
Model XZ1000

Engine		CUMMINS
Rated power	kW	392
Max.pullback/thrusting	kN	1000/1000
Spindle torque (max)	N.m	55000
Spindle speed	r/min	0-80
Backreaming diameter	mm	Ø1200
Tubing length(single)	m	9.6
Tubing diameter	mm	Ø127
Entry angle	°	10-18
Mud flow rate (max)	L/min	1200
Mud pressure (max)	bar	200
Overall weight	kg	32000
Dimension(LxWxH)	mm	14500×3150×3390

*********************************************************************************
