Jgs1 Jgs2 Jgs3 Ku-1 Kb Ki Fused Silica Optical Glass Window

Product Description

BK7 K9 CaF2 ZnSe MgF2 Sapphire Fused Silicon Optical Glass Window
Optical windows refer to a piece of transparent optical material that allows light into an optical instrument. An Optical Window is an optically flat. These regular windows are applied to isolate different physical environments while allowing light pass. When selecting windows,please consider materials, transmission, scattering, parallelism and resistance to certain environment. It can be widely used on laser technology, IR detector and imaging technology etc.
Specifications

Material	UV Laser-Grade Fused Silica
Diameter Tolerance	+0.00/-0.005"
Thickness Tolerance	+/-0.25mm
Surface Figure	Both sides 1/10 Wave @ 632.8nm
Parallelism	3 arc min
Scratch/Dig	20-10
Chamfer	0.5mm x 45°
Clear Aperture	Central 85%

Specification:

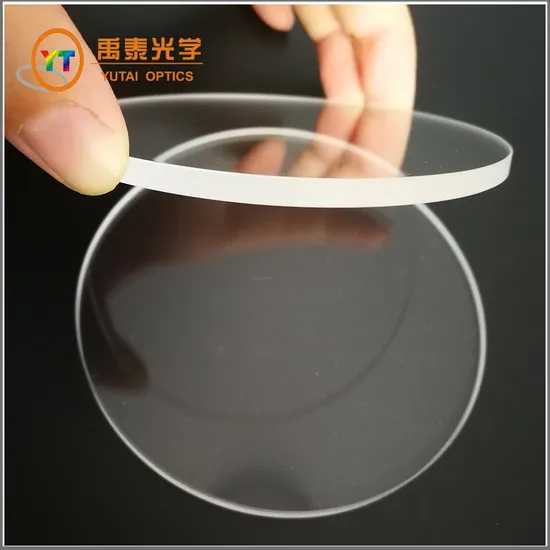

Optical Fused Silica JGS1 Flat Glass Windows Lens are flat, plane-parallel plates that are often used as protective barriers for electronic sensors or detectors from outside environments. Optical Fused Silica JGS1 Flat Glass Windows Lens should be selected based on the material transmission or mechanical properties of the substrate. Optical Fused Silica JGS1 Flat Glass Windows Lens do not cause change in the magnification of a system.
YuTai Optics' Optical Windows are offered in a variety of substrates, such as Germanium (Ge), Silicon (Si), N-BK7, UV Fused Silica, Zinc Selenide (ZnSe), or Potassium Bromide (KBr). Multiple anti-reflection coating options are available for the Ultraviolet (UV), visible, or Infrared (IR).

Material	Fused silica
Dimension	2-200mm
Dimension Tolerance	+0.1, -0.1 mm
Thickness Tolerance	+0.1, -0.1 mm
Parallelism	3 arc minutes
Surface Flatness	1/2 L @632.8nm
Surface Quality	60-40 scratch and dig
Protective Bevel	0.25 mm x 45°
Coating	as customer's requirements

It is also available to supply the coating wavelength curve, such as AR coating,BBR coating,filter coating and so on.
Changchun Yutai Optics Co.,Ltd. is a manufacturer with ISO9001 certification. We are specialized in high-performance optical components
include lens, mirrors, filters, windows and prisms which are specified by customers. Yutai's items are widely used in imaging, defense, medical,
laser and industry market. As a fast-growing supplier in Optics, Yutai Optics has quickly established itself as a leader in optical components with advanced technology and quality control ability as Yutai aims to provide professional service and good quality items to meet customers' request.
Yutai already established long-term relation with many powerful companies all over the world.
Q: What are your main products? A: Optical lens,mirrors,windows,filters,prisms Q: How long is your delivery time? A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics. Q: Do you provide samples ? is it free or extra ? A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free. Q:What is your MOQ ? MOQ is 10pcs for most of the optics, while MOQ could be only one piece if you need a element in big dimention. Q: What is your terms of payment ? T/T,L/C,VISA,Paypal,Alipay or Negotiation.
