Viqee ODM/OEM Ad Advertisement Terminal Box T8PRO Mini All-in-One Pocket PC Palm Computer
| US$128.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
T8Pro
Net Weight
203.7g
Installation Method
Embedded/Wall-Mounted/Desktop
Ready Stock
Yes
Us/EU Warehouse
Yes
CPU
Intel
GPU
Intel
Memory Capacity
16g RAM
Display Screen Size
Support 3 HDMI Display
Display Type
Support 3 HDMI Display
HDD Capacity
256g/1t SSD
Drive Type
Customized
Memory Type
Lpddr5
Use
Home & Commercial
CPU Frequency
2.90 GHz
Transport Package
Standard Packing
Specification
89.4mm x 89.4mm x 43.5mm
Trademark
VIQEE / Customized
Origin
China
HS Code
8471499900
Production Capacity
3000PCS/Month
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 15.00cm
Package Gross Weight
1.000kg
Product Description

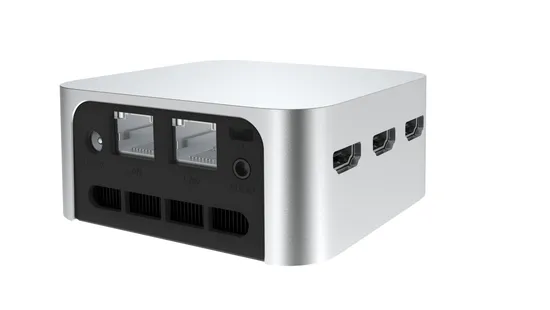

Product Description VIQEE Mini PC SeriesT8Pro
Dual Lan Mini PC + Micro Server
Handheld Micro PC
Meet a variety of application scenarios
Support OEM/ODM
Customized Color/Capacity/System/Appearance Material
Detailed Photos
Product Parameters
| Appearance | |||
| Type | Features | Spec | Optional |
| Product | Device | MINI PC | |
| Special | Handheld micro PC | Optional | |
| Device size | 89.4mm x 89.4mm x 43.5mm | ||
| Case Material | Plastic | ||
| Weight | Net Weight 203.7g | ||
| Hard configuration | |||
| Type | features | Description | Optional |
| CPU | Platform | Intel Alder Lake-N N95 | N100 / N200 / N97 |
| Speed | 1.7GHz | ||
| Max frquency | 3.40 GHz | ||
| power disspation | 15W | ||
| Memory | Type | Onboard LPDDR5 | |
| Storage | Max 16GB | Optional | |
| Storage | EMMC | No | |
| SSD | M.2 2242 NGFF/NVMe,Max 1TB | Optional | |
| 2.5 ''HDD/SSD | No | Optional | |
| TF card | No | ||
| RTC | BIOS support | Real-time clock,timing boot | |
| Auto power on | BIOS support | Yes | |
| TPM | CPU interation | Support TPM 2.0 | |
| Triple display | Video output | Supports three HDMI display at the same time | |
| LED | status indicator | The light is white | |
| Network | |||
| Type | Features | Description | Optional |
| WIFI | Type | M.2 E_key WIFI5/WIFI6 | Optional |
| Agreement | PCIE | ||
| Bluetooth | Type | Bluetooth 4.2/5.2 | Optional |
| Agreement | USB2.0 | Optional | |
| 3G | build-in | No | |
| 4G | build-in | No | |
| Ethernet | LAN1 | 10M/100M/1000M Self-adaption | |
| Ports | |||
| Type | Features | Description | Optional |
| USB | USB2.0 | No | |
| USB | USB3.0 | USB3.0 Type-A x3 | |
| TF | expand external memory | No | |
| HDMI | Audio/Video output | HDMI 2.0 Type A x3 | |
| VGA | Video output | No | |
| RJ45 | Gbe | RJ45 x2 | |
| type_c | data transfer | No | |
| POWER | power | x1 | |
| DC IN | DC IN | 5.5/2.1mm DC Jack x1 | |
| Audio-in/out | Audio-in/out | 3.5mm Phone Jack x1 (Two-in-one interface) | |
| Antenna1 | FPC | WiFi 2.4+BT x1 | |
| Antenna2 | FPC | WIFI 5.0 | |
| Software configuration | |||
| Type | Features | Description | Optional |
| OS | OS version | Windows 11/Windows 10/Ubunut/Linux | |
| Applied environment | |||
| Type | Features | Description | Optional |
| Environment | operating temperature | 0~40ºC | |
| storage temperature | -20~60ºC | ||
| humidity | 90% @ 40 °C (without condensation) | ||
| Accessories | |||
| Type | Features | Description | Optional |
| Adapter | Plug type | input100~240V 50/60Hz,output 12V/2.5A ,DC 5.5*2.1mm | |
| IR remote control | No | ||
| VESA | Yes | ||
