Chicken Water Line Equipment Nipple Drinking System

Product Description

chicken house automatic nipple drinker Main parts of nipple drinker for livestock:
Filter, pressure regulator, nipple drinking line, lifting and suspensionsystem, electric shock system etc.

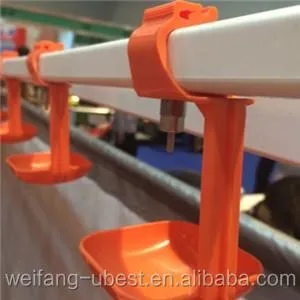

Nipples for the system:
1). Use good quality engineering plastic for outer, for the inner, we use good quality stainless steel.
All nipples are anti-rusting, service life over 10 years.
2). Double-sealing structure, with good seal ability, can avoid to effect the chicken house for leaking.
3). Valve rod is movable in 360degree, it's suitable for all chicken to drink.
Detailed parameter for nipples:

Drinking style	automatic
Nipple drinking style	360° drinking
Nipple material	Stainless steel
Nipple flow rate	90-100ml/minute
Feeding capacity	8-12birds/cup
Drip cup colour	Red/ yellow
Drip cup material	High-performance plastic
Drinking pipe diameter	22cm(square pipe)/25cm (round pipe)

Nipple capacity ability:
Broiler: 8-12/nipple
Reserve layer:12/nipple
Reserve turkey:20/nipple
Duck:10/nipple
Breeder:10/nipple
Lifting and suspension system:
Correct height for drinking system is very important for chicken (both higher and lower can effect chicken bone's
distortion, it's bad for chicken growth, and also can have some water wasting), it's very easy to adjuct drinking
system's height if use this system.
Water display level tube:
Use high transparency & impact resistant material, it's sturdy and durable, and convient to watch water level.
This device with advanced design, it's very easy to take down and clean.

Days of chicken	1-7days	8-14days	Up 15days
Water level height(mm)	50-80	80-200	200-350

Pressure regulator:(Double barreled with large flow capacity)
Advantages:
1). Regulating stability.
2). High switching performance.
3). Water supply is sufficient& equality.
4). Recoil cleaning with good cleaning result, and can save time and can save water.
5). Good quality movable valve, it's easy to change.
Front part of drinking system:
Front part is controller of water, it's main function is to adjust water supplying pressure and stabilizing drinking volume.
This part is usually installed in control room.
-Pressure regulator: make sure to supply stable water to drinking line. Anti-backlish device can discharge the impurity in pipe.
-Filter: main function is to clean water and avoid blocking nipple.
-Water meter: to measure water usage volume.
-Doser: can add medicine exactly to prevent disease.
