Clothes Paper Making Machine Polyester Forming Screen for Crescent Fourdrinier Medium Core
| US$9.00-100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LZPMC
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Surface Treatment
Heat Setting
Manufacturing Process
Woven
Material
Polyester
Machine Speed
Below 2000m/Min
Fabric Layer
1/1.5/2/2.5/3
Paper Kinds
All Kinds of Paper
Srtucture
Yarn Woven
Transport Package
Standard Seaworthy Package
Specification
customized
Trademark
LEIZHAN PMC
Origin
China
HS Code
5911
Production Capacity
50000sets/Year
Product Description

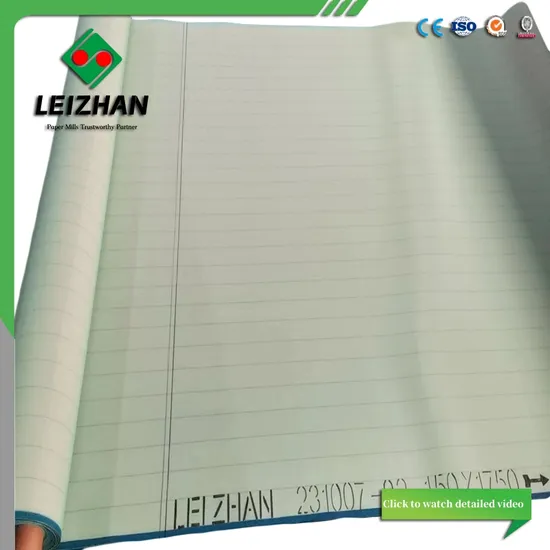

Product Description The forming fabric is an important piece of equipment on paper machines. It is a device for forming and dehydrating the paper sheet on the paper machine. It dehydrates the pulp suspension from the headbox and runs the web to the follow-up section.Polyester forming net is commonly used in paper machine forming parts. In the past, the copper mesh was mostly used, and the polyester-forming mesh was mainly woven by polyester monofilament. To increase the service life of the formed mesh, some manufacturers added nylon monofilament with better wear resistance in the weft line interval.Detailed Photos
Product Parameters
| Series | Applicant | Machine Speed |
| 4-shed , 5-shed series single layer polyester forming fabrics | producing cultural paper (single glue, double glue and color glue), printing paper, glazed paper, packing paper, common newsprint | common fourdrinier paper machine |
| 8-shed single layer polyester forming fabric | kraft paper, cardboard , corrugated paper making, common printing paper | common fourdrinier paper machine |
| 8-shed double layer fabric | quality printing paper. For example,dictionary paper, offset printing paper, newsprint and wrap paper, tissue paper making and the surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc | medium and high speed paper making machine |
| 16-shed double and a half layer polyester forming fabric | quality printing paper, such as offset printing paper, copper plate paper, newsprint and cigarette paper series (wrap paper and filter tips paper), toilet paper, tissue paper and surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. | medium and high speed paper making machine |
| Multi-shed three-layer fabric | quality printing paper, tissue paper and cigarette paper etc | high speed paper making machine |
