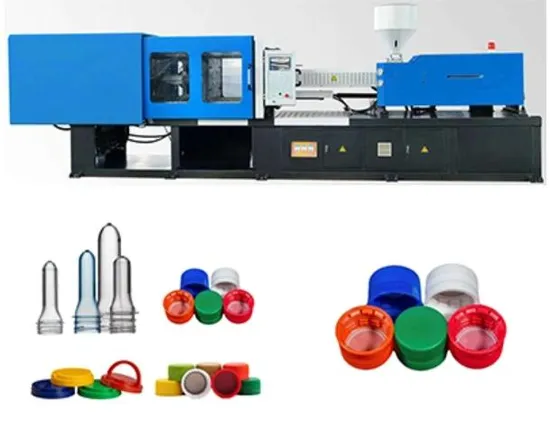

Best Selling Pet Preform Making Injection Molding Machine Manufacturer
| US$18,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YDZ2000
Type
Injection Molding Machine
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Processing Material
Pet ,PP,PE
Color
Customized
Transport Package
Wooden
Specification
customized
Trademark
Yuanda Group
Origin
China
HS Code
84774010
Production Capacity
600 Sets Per Year
Product Description
Founded in 1970, Yuanda Group is committed to research and development and production of plastic molding equipment,Such as the Extrusion blow molding machine , PET blow molding machine ,Injection blow molding machine (IBM machine), Injection molding machine ect. including the peripheral equipment , such as refrigeration equipment and power generation system equipment. With more than 29 years old working expereice , we can offer the whole equipment for customer plastic factory produce complete project,and strong technical support and advanced complete sets of equipment for many customers in China and overseas.
| Screw diameter | mm | 60 | 65 | 70 |
| Screw L/D ratio | L/D | 22.7 | 21 | 19.5 |
| Shot weight | gram | 772 | 905 | 1050 |
| Injection capacity | cm3 | 848 | 995 | 1154 |
| Injection pressure | Mpa | 207 | 176 | 152 |
| Theoretical injection rate | g/s | 241 | 283 | 328 |
| Plastic capacity | g/s | 35.2 | 43.3 | 51.8 |
| Injection stroke | mm | 300 | ||
| Screw torque | N.m | 2530 | ||
| Max screw rotate speed | r/min | 150 | ||
| Clamping force | Ton | 300 | ||
| Opening stroke | mm | 590 | ||
| Space between tie bars | mm | 610×610 | ||
| Mould height | mm | 220~630 | ||
| Max daylight | mm | 1220 | ||
| Ejector force | ton | 70.6 | ||
| Ejector stroke | mm | 150 | ||
| Ejector quantity | 9 | |||
| Oil pump motor | kw | 30 | ||
| Pump pressure | Mpa | 16 | ||
| Heating power | kw | 22 | ||
| Machine size | M | 6.7*1.75*2.25 | ||
| Machine weight | ton | 11 | ||
| Oil tank capacity | L | 560 | ||
| International designation | 3000-1750 | |||
about many other advanced technical data, please require me !
Due to the company's fast technology update and technical confidentiality,for blow molding machine,Extrusion Blow Molding ,Injection blow molding machine ,PET blow molding machine , injection molding machine , blowing mould,plastic bottle making machine,plastic bottle mould ,bottle machine , relevant advanced technical parameters must be consulted our sales engineers.
