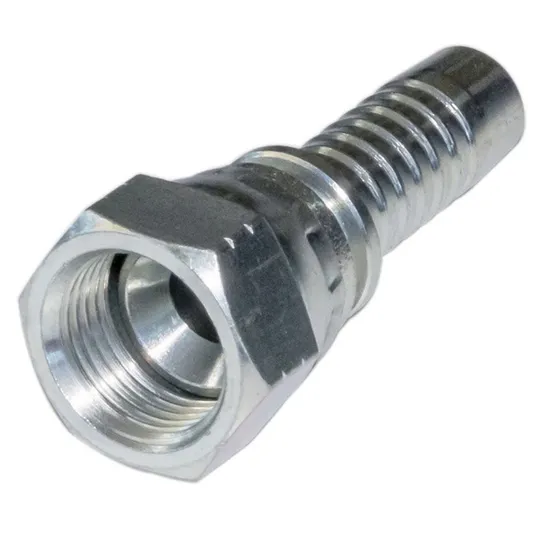

Jic 37 Degree Female Swivel Fitting 26711
| US$1.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
26711
Connection
Crimping Fitting
Surface Treatment
Zinc Plated
Head Type
Hexagon
Technics
by CNC Machine
Sample
Available
OEM
Acceptable
MOQ
1 PCS
Color
White or Yellow
Delivery Time
25 Days for Normal Order
Transport Package
Carton or as Request
Specification
1/4"-2"
Trademark
JJR
Origin
Tianjin
HS Code
7307990000
Production Capacity
40000PCS/Day
Product Description
JIC 37 degree female swivel fitting 26711Specification:
| PART NO. | Thread E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||
| 26711-04-03 | 7/16"X20 | 5 | 3 | 14.5 | 9 | 15 |
| 26711-04-04 | 7/16"X20 | 6 | 4 | 15 | 9 | 15 |
| 26711-05-04 | 1/2"X20 | 6 | 4 | 15.5 | 9.5 | 17 |
| 26711-05-05 | 1/2"X20 | 8 | 5 | 15.5 | 9.5 | 17 |
| 26711-05-06 | 1/2"X20 | 10 | 6 | 15.5 | 9.5 | 17 |
| 26711-06-04 | 9/16"X18 | 6 | 4 | 15.5 | 10.5 | 19 |
| 26711-06-05 | 9/16"X18 | 8 | 5 | 15.5 | 10.5 | 19 |
| 26711-06-06 | 9/16"X18 | 10 | 6 | 15.5 | 10.5 | 19 |
| 26711-06-08 | 9/16"X18 | 12 | 8 | 16 | 10.5 | 19 |
| 26711-08-06 | 3/4"X16 | 10 | 6 | 17.5 | 11 | 24 |
| 26711-08-08 | 3/4"X16 | 12 | 8 | 18 | 11 | 24 |
| 26711-08-10 | 3/4"X16 | 16 | 10 | 19.5 | 11 | 24 |
| 26711-10-08 | 7/8"X14 | 12 | 8 | 18.5 | 13 | 27 |
| 26711-10-10 | 7/8"X14 | 16 | 10 | 20 | 13 | 27 |
| 26711-10-12 | 7/8"X14 | 20 | 12 | 20 | 13 | 27 |
| 26711-12-08T | 1.1/16"X12 | 12 | 8 | 19 | 15 | 32 |
| 26711-12-10 | 1.1/16"X12 | 16 | 10 | 21.5 | 15 | 32 |
| 26711-12-12 | 1.1/16"X12 | 20 | 12 | 21.5 | 15 | 32 |
| 26711-12-16 | 1.1/16"X12 | 25 | 16 | 23 | 15 | 32 |
| 26711-14-12 | 1.3/16"X12 | 20 | 12 | 21.5 | 15 | 36 |
| 26711-16-12T | 1.5/16"X12 | 20 | 12 | 18.5 | 16 | 41 |
| 26711-16-16 | 1.5/16"X12 | 25 | 16 | 23 | 16 | 41 |
| 26711-16-20 | 1.5/16"X12 | 32 | 20 | 24 | 16 | 41 |
| 26711-20-16T | 1.5/8"X12 | 25 | 16 | 23 | 17 | 50 |
| 26711-20-20W | 1.5/8"X12 | 32 | 20 | 26 | 17 | 50 |
| 26711-24-20W | 1.7/8"X12 | 32 | 20 | 26.5 | 20 | 55 |
| 26711-24-24W | 1.7/8"X12 | 40 | 24 | 26.5 | 20 | 55 |
| 26711-32-24T | 2.1/2"X2 | 40 | 24 | 27 | 23.5 | 75 |
| 26711-32-32T | 2.1/2"X2 | 50 | 32 | 27 | 23.5 | 75 |
The material are always carbon steel, stainless steel or brass, and the material can be customized.
The surface of the ferrules are smooth, zinc plating or others customized.
Features:
High functionality
Precise design
Durable
Carbon material:
Plant:
Warehouse:
Other products:
| Swaged Metric Fittings | Mertic Flat Seal Fittings |
| Metric Multiseal Fittings | |
| Metric 60°Cone Seal Fittings | |
| Metric 74°Cone Seal Fittings | |
| Metric 24°Cone O-RING Seal L..T Fittings | |
| Metric 24°Cone O-RING Seal H.T.Fittings | |
| Metric Standpipe Straight Fittings | |
| JIS Metric 60°Cone Seal Fitting | |
| Swaged British Fittings | BSP O-RING Seal Fittings |
| BSP Flat Seal Fittings | |
| BSP Multiseal Fittings | |
| BSP 60°Cone Seal Fittings | |
| BSPT Fittings | |
| JIS BSP 60°Cone Seal Fittings | |
| Swaged American Fittings | SAE O-RING Seal Fittings |
| ORFS Flat Seal Fittings | |
| NPSM 60°Cone Seal Fittings | |
| JIC 74°Cone Seal Fittings | |
| NPT Fittings SAE Flange L.T. Fittiings | |
| SAE Flange H.T.Fittings | |
| Staplelok Fittings | Banjo Double connection |
| interlock Hose Fittings | |
| Ferrule | FERRULE for SAE100R1AT/ EN 853 1SN HOSE |
| FERRULE for SAE100R1A EN 853 1ST HOSE | |
| FERRULE for SAE100R2AT/DIN20022 2SN HOSE | |
| FERRULE for SAE100R2A/EN 853 2SN HOSE | |
| FERRULE for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC | |
| FERRULE for 4SP,4SH/10-16,R12-06-16 HOSE | |
| FERRULE for 4SH,R12/32 HOSE | |
| Metric Adapters | Metric Thread O-RING Face Seal Adapters |
| Metric Thread Bite Type Tube Adapters | |
| JIS Metric Thread 60°Cone Adapters | |
| Metric Thread 74°Cone Flared Tube Adapters | |
| British Adapters | BSP Thread 60°Cone Adapters |
| JIS BSP Thread 60°Cone Adapters | |
| BSPT Thread Adapters | |
| American Adapters | ORFS Adapters JIC 74°Cone Flared Tube Adapters |
| NPT Thread Adapters |
We carries a wide variety of hydraulic hose ferrule fittings in common size,used mainly for crimping hose fittings.More other type ferrule,fitting and hose please feel free to contact with us.
