Durable HSS Roll Solutions for Hot Rolling Industry Rebar Needs

Product Description

Product Description
Brief Introduction of HSS Roll
High-speed steel (HSS) rolls are at the forefront of metallurgical innovation, standing as essential components within the steel industry for their robust application in hot rolling processes. Revered for their extraordinary wear resistance, unmatched high-temperature hardness, and superior thermal fatigue endurance, these rolls are crafted with precision using alloy elements like tungsten (W), molybdenum (Mo), vanadium (V), and chromium (Cr). This composition bestows upon HSS rolls a level of durability and performance that far surpasses the capabilities of traditional cast iron and cast steel counterparts..
Implementing high-speed steel rolls enables steel manufacturers to experience a transformation in operational efficiency, significantly reducing maintenance costs while enhancing the quality of the final product.

Product Parameters
Physical Characteristics Parameter Details

	Normal	Enhanced	High Strength	Slitting	Dogbone
Roll Specification	Ø280 - Ø850
Density	7.6 g/cm³	7.8 g/cm³	8 g/cm³	7.6 g/cm³	7.6 g/cm³
Casting	Centrifugal Casting
Heat Treatment	HBW Patented
Hardness	General: 82-89HSD Different range based on stands73-77HSD			73-77HSD	79-83HSD
Hardness Drop	≤3HSD
Rolling Temperature	780ºC-1100ºC
Pass Life	4-5 times than CI Rolls	1.3 tims than HSS Normal	1.5 tims than HSS Normal	24-32 hours Continue Rolling (2-3 times than High-boron Rolls)
Dressing	1.0-1.5mm
Use Periods	8-10 Cycles
Application	Intermediate and Finishing stands in bar mill Fours stands before pre-finishing stands in wire mill Hot strip and plate steel working rolls Section steel universal mill			Slitting stand in bar mill	Dogbone stand in bar mill

Comprehensive Physical Properties

Properties	Barrel	Core
Tensile Strength(N/mm²)	≥700MPa	≥450MPa
Compressive Strength	≥2500MPa

Chemical Analysis (Proportions vary by HSS Grade)
HSS Standard

HBW Patented Chemical Composition (%)

HSS Normal

C

Si

Mn

Cr

Ni

Mo

V

W

P & S

Nb

Co

Others

1.5-2.10

0.30-0.7

0.30~1.0

3.00~ 6.00

0.50~ 1.50

3.0-7.0

2.0-8.0

1.0-8.0

≤0.03

Depends oMaterialn HSS Grade

HSS Enhanced Performance

Material

Chemical composition control requirements (%)

HSS Enhanced

C

Si

Mn

P

S

Cr

Mo

V

W

Ni

Nb

Other

1.5-2.1

0.2-1.0

0.3-1.0

≤0.03

≤0.03

4.0-6.0

3.0-6.0

3.0-5.0

2.5-5.0

0.5-1.5

≤0.5

≤1.0

HSS Superior Strength

Material

Chemical composition control requirements (%)

HSS Enhanced

C

Si

Mn

P

S

Cr

Mo

V

W

Ni

Nb

Other

1.5-2.1

0.2-1.0

0.3-1.0

≤0.03

≤0.03

4.0-6.0

4.0-6.0

4.0-6.0

3.0-5.0

0.5-1.5

≤1.0

≤1.0

Detailed Photos

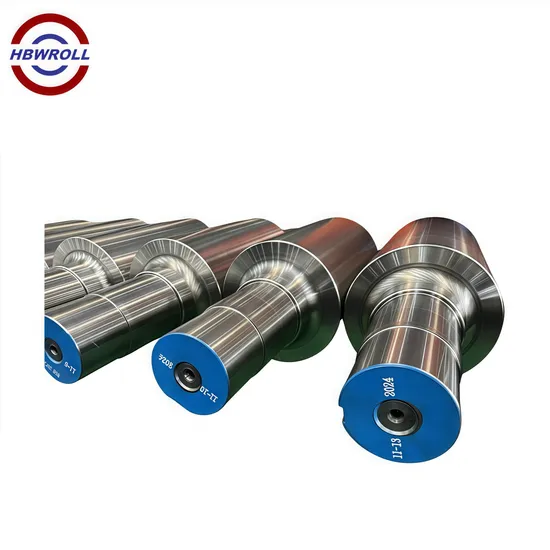

Detailed Photos of HSS Roll

Advantage of High-Speed Steel Rolls
1. High Wear Resistance
• Crafted with an optimal combination of hardening agents including tungsten, vanadium, and chromium, these High-Speed Steel (HSS) rolls demonstrate superior wear resistance, positioning them as the ideal solution for the most demanding rolling applications.
• Specifically engineered to withstand the challenges of rolling high-strength and stainless steels, these rolls ensure top-tier performance even under the harshest conditions.
2. High Hardness
• With a working layer hardness of 65 HRC or more, these rolls are meticulously designed to maintain their robust hardness, even in extreme high-temperature environments.
• Their uniform hardness distribution is key to extending the roll's service life, delivering consistent and reliable performance.
3. Excellent Thermal Crack Resistance
• Expertly crafted to endure high-temperature rolling conditions, the surface resists cracking from rapid cooling or thermal stress, ensuring long-lasting durability.
• Perfectly suited for continuous high-temperature, high-stress operations, these rolls showcase exceptional durability and reliability.
4. Thermal Fatigue Resistance
• With remarkable resistance to thermal fatigue, these rolls consistently deliver stable performance through repeated heating and cooling cycles, effectively minimizing the risk of fatigue crack development.
5. Long Service Life
• Offering a lifespan 3-6 times longer than traditional cast iron or cast steel rolls, HSS rolls dramatically reduce replacement frequency and downtime, significantly boosting operational efficiency.
6. Strong Versatility
• Exceptionally versatile for hot rolling processes, these rolls excel in both normal and low temperature conditions, while also meeting stringent standards for surface quality and dimensional accuracy.
7. Advanced Manufacturing Technology
• Crafted with cutting-edge centrifugal composite casting technology, these rolls are constructed with HSS as the durable working layer and ductile cast iron as the core, achieving a perfect balance of wear resistance and impact toughness.
