Enterprise Network Router Netengine 8000 F1a-8h20q Integrated Chassis Components Overseas Version

Product Description

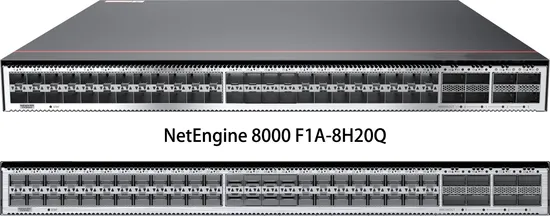

Product Description Overview: NetEngine 8000 F1A-8H20Q Integrated Chassis Components

Part Number Model Description 02353AES CR8B0BKP03C0 NetEngine 8000 F1A-8H20Q Integrated Chassis Components (Port-side Intake) 02353AES-001 CR8B0BKP03C0 NetEngine 8000 F1A-8H20Q Integrated Chassis Components(Port-side Intake) 02353AES-006 CR8B0BKP03C0 NetEngine 8000 F1A-8H20Q Integrated Chassis Components(Port-side Intake) 02353AGV CR8B0BKP03C2 NetEngine 8000 F1A-8H20Q Integrated Chassis Components (Port-side Exhaust) 02353AGV-001 CR8B0BKP03C2 NetEngine 8000 F1A-8H20Q Integrated Chassis Components(Port-side Exhaust) 02353AGV-002 CR8B0BKP03C2 NetEngine 8000 F1A-8H20Q Integrated Chassis Components(Port-side Exhaust) 02355KVX CR8B0BKP03D0 NetEngine 8000 F1A-8H20Q Integrated Chassis Components(Port-side Intake) 02355KVY CR8B0BKP03D2 NetEngine 8000 F1A-8H20Q Integrated Chassis Components(Port-side Exhaust)

Technical specifications

Item	Specification
Cabinet installation standards	IEC 19-inch
Dimensions without packaging (H x W x D) [mm(in.)]	43.6 mm x 442 mm x 420 mm (1.72 in. x 17.4 in. x 16.54 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	175 mm x 550 mm x 650 mm (6.89 in. x 21.65 in. x 25.59 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	6.3 kg (13.89 lb) 6.8 kg (14.99 lb) 7 kg (15.43 lb)
Weight without packaging (full configuration) [kg(lb)]	DC: 8.4 kg(18.52 lb); 8.9 kg(19.62 lb) AC: 8.75 kg(19.29 lb); 9.2 kg(20.28 lb)
Weight with packaging (full configuration) [kg(lb)]	DC: 13.58 kg(29.94 lb); 14.08 kg(31.04 lb) AC: 13.75 kg(30.31 lb); 14.2 kg(31.31 lb)
Typical power consumption (with configuration) [W]	325 W
Typical heat dissipation (with configuration) [BTU/hour]	1054.44 BTU/hour
MTBF [year]	DC: 25.52 AC: 25.65
MTTR [hour]	0.5 hour
Availability	0.99999
CPU	-20-core 2.0 GHz: CR8B0BKP03C0 (02353AES); CR8B0BKP03C2 (02353AGV) -8-core 2.3 GHz: CR8B0BKP03C0 (02353AES-001); CR8B0BKP03C2 (02353AGV-001) -16-core, 2.0 GHz: CR8B0BKP03C0 (02353AES-006); CR8B0BKP03C2 (02353AGV-002); CR8B0BKP03D0; CR8B0BKP03D2
SDRAM	-16 GB: CR8B0BKP03C0 (02353AES); CR8B0BKP03C0 (02353AES-001); CR8B0BKP03C2 (02353AGV); CR8B0BKP03C2 (02353AGV-001); -32 GB: CR8B0BKP03C0 (02353AES-006); CR8B0BKP03C2 (02353AGV-002); CR8B0BKP03D0; CR8B0BKP03D2
Storage	-4G NAND FLASH: CR8B0BKP03C0 (02353AES); CR8B0BKP03C2 (02353AGV); -16G M.2 flash: CR8B0BKP03C0 (02353AES-001); CR8B0BKP03C0 (02353AES-006); CR8B0BKP03C2 (02353AGV-001); CR8B0BKP03C2 (02353AGV-002); CR8B0BKP03D0; CR8B0BKP03D2
Power supply mode	DC, AC/HVDC
Rated input voltage [V]	DC: -48 V/-60 V AC: 100 V to 240 V AC, support 240 V HVDC
Input voltage range [V]	DC: -40 V to -72 V AC: 90 V to 290 V
Maximum input current [A]	DC: 30 A AC: 8 A / 10 A
Rated output power [W]	DC: 1000 W AC: 600 W / 1200 W
Maximum input cable size [mm²]	DC:4mm^2 (1-14 meters), 6mm^2 (15-21 meters), 10mm^2 (22-35 meters) AC:2.5mm^2
Front-end circuit breaker/fuse [A]	DC:≥32A AC:≥10A
Heat dissipation mode	Air cooling
Airflow direction	-Front to back: port-side intake: CR8B0BKP03C0 (02353AES); CR8B0BKP03C0 (02353AES-001); CR8B0BKP03C0 (02353AES-006); CR8B0BKP03D0 -Back to front: port-side exhaust: CR8B0BKP03C2 (02353AGV); CR8B0BKP03C2 (02353AGV-001); CR8B0BKP03C2 (02353AGV-002); CR8B0BKP03D2
Noise at normal temperature (acoustic power) [dB(A)]	< 72 dB (meeting the ETSI 72 dBA standard)
Number of slots	7
Number of service board slots	1
Switching capacity	2.4 Tbit/s
Maximum number of physical ports on the entire device	56
Maximum number of 100GE ports	8
Maximum number of 50GE ports	8
Maximum number of 40GE ports	8
Maximum number of 25GE ports	20+32(100GE breakout)
Maximum number of 10GE ports	48+32(100GE breakout)
Maximum number of GE ports	28 (V8R12C00), 36 (V8R12C10)
Maximum number of FE ports	28
Maximum number of electrical ports	28
Redundant power supply	1+1
Redundant fans	3+1,Short-term running when a single fan becomes invalid at the ambient temperature of 40°C (104°F)
Long-term operating temperature [°C(°F)]	Front-to-rear airflow model: -5°C to +45°C (23°F to 113°F) Port-side Exhaust:-5°C ~ 40°C(23°F to 104°F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 0.5°C/min (32.9°F/min), non-condensing
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 90% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	< 4000 m (< 13123.4 ft.)
Storage altitude [m(ft.)]	< 5000 m (16404.20 ft.)
FlexE supported: CR8B0BKP03C0 (02353AES); CR8B0BKP03C2 (02353AGV)	Yes
	Physical ports 48, 49, 50, and 51 can be added to the same group. port-id ranges from 56 to 95 and from 1000 to 3000. A maximum of 40 FlexE clients can be created.
	Physical ports 52, 53, 54, and 55 can be added to the same group. port-id ranges from 96 to 135 and from 1000 to 3000. A maximum of 40 FlexE clients can be created.
