6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2
Basic Info.
Model NO.
CLK6140D-2
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Product Name
CNC Lathe Machine
CNC
CNC Machine
Belong to
Machine Tools
Z Direction Guideway Span
320
Spindle Bore
51
Tools Size
25×25
Main Motor
5.5kw
Net Weight
1800
Max. Swing Over Bed
400
Transport Package
Plywwod
Specification
CLK6140D-2
Trademark
ALLWAY
Origin
China
HS Code
845811
Production Capacity
1000PCS/Year
Product Description
6140 CNC Lathe Machine Cnc Machine Tools Clk6140d-21.Introduction and use:
Electromechanical integration with 2-shifts of high /low speed, once programming can automatically realize machining such like cylindrical,inner hole, thread, complex surface.Widely used in machinery, automobiles, motorcycles, oil pump, nozzle, chemical industry, instrument, medical and other parts of mechanical processing.
2. SPECIFICATION
| CLK6140D/2 Items | UNIT | 750 | 1000 | ||
| Max. swing over bed | mm | 400 | |||
| Max. swing over cross slide | mm | 170(standard)/option:150( with T-slot) | |||
| End surface of standard chuck (doesn't contain claws) to enter of tailstock | mm | 680 | 1000 | ||
| X/Z axis travel | mm | 220/550 | 220/860 | ||
| Z direction guideway span | mm | 320 | |||
| Spindle bore | mm | 51(standard manual chuck ) | |||
| Code for spindle nose | A2-6 | ||||
| Spindle nose tape | No | Morse 6 | |||
| Spindle speed range | rpm | 2 shifts:80-400,400-2000 | |||
| Tailstock sleeve dia. | mm | 55 | |||
| Tailstock | No | MT4 | |||
| Tailstock sleeve travel | mm | 150 | |||
| Electric tools | pcs | 4/6(option) | |||
| Tools Size | mm | 25×25 | |||
| Screw pitch | mm | X:4;Z:6 | |||
| X, z rapid feeding | m/min | X:6; Z:8 | |||
| X/z axis smallest unit set | mm | 0.001 | |||
| Main motor | KW | 5.5KW | |||
| cool pump | AB-25 | ||||
| Cool pump motor | w | 90 | |||
| Power form | AC voltage | V | 3 380±10% | ||
| Frequency | HZ | 50±10% | |||
| Total Power capacity | KVA | 10 | |||
| Net weight | Kg | 1800 | 1900 | ||
| Overall dimension | mm | 2000×1100×1650 | 2320×1100×1650 | ||

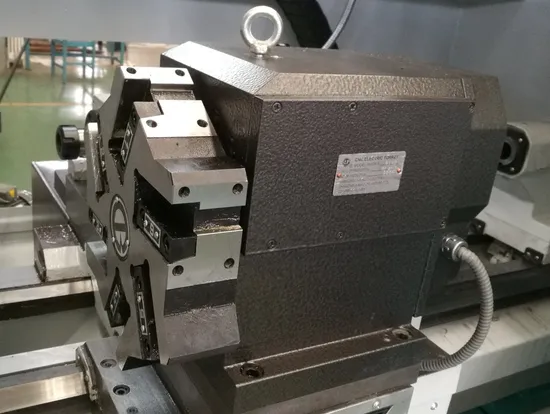

Optional:
Contact ALLWAY MACHINERY , get more professional information!
