1-30mm Carbon Mild Steel Aluminum Brass CNC Fiber Laser Cutting Machine with 1500W 2000W 3000W 6000W 12000W 20000W 30000W Raycus Max Laser Source

Product Description

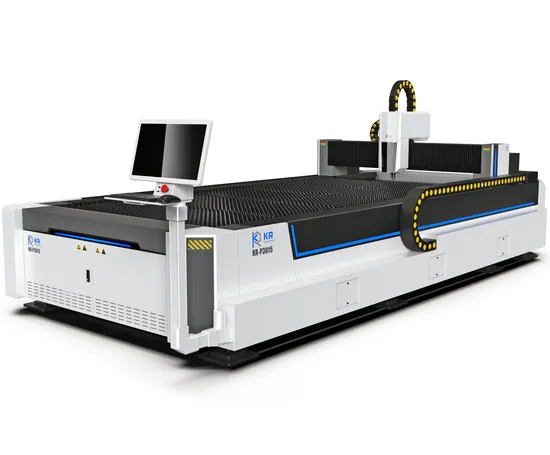

Single Paltform 3015 3KW Fiber Laser Cutting Machine

Product Description
KR Machinery fiber laser cutting machine is characterized by high perfirmance,high configuration and attactive price. Our machine is equipped with MAX laser source, Raytools laser head, Inovance servo motor, motovario reducer, etc, and the maximum acceleration speed can be up to 2G,which can make sure our machine work with high-efficiently, high-accuracy and high stability. It is widely used in automobile, kitchenware, elevator, decoration and other sheet meatal fabrication industries.
Product Parameters

Technical parameters and configuration
MODEL	P-3015
Working Area	3000*1500 mm
Laser Power	3000 W
Laser Source	MAX
Laser Wavelength	1064 nm
Positioning Accuracy	plus/minus 0.05 mm
Repositioning Accuracy	plus/minus 0.03 mm
Max. Linkage Speed	150 m/min
Max. Linkage Acceleration	2.0 G
Working Voltage	380 V/ 50 Hz
Continuous Working Time	24 hours
Maximum cutting thickness-batch work	CS 22MM, SS 10MM, ALU 8MM

Mechanical System
Machine Body	super strong Welding machine bed
Cross Beam	Aviation Aluminum
Servo Motor & Driver	Inovance (1300w/850w/400w)
Rack Pinion	YYC
Linear Guide	HIWIN
Electrical Parts	CHNT
Pneumatic Components	SMC
Automatic Lubrication System	YES
Laser Head	Raytools
Focusing Mode	Automatic
Sheet Following Function	Automatic

Operating System
Control System	Cypcut 2000E
Human Machine Interface	21 Inch
Drawing Nesting	Automatic
Cutting Abnormal Alarm	Automatic
Maintenance Reminder	Yes
Support Format	DXF \ DWG etc.
Accessories
Water Chiller	1 Set (Hanli Brand)
Dust Exhaust Fan	1 Sets
Laser Protective Glasses	1 Set
Remote Control	1 Set
Tool Box	1 Set
Protective Lens	5 Nos
Nozzle	5 Nos

Detailed Photos
Raytools Laser Head

Excellent Design.Optimized optical configuration and smooth gas circuit to improve cutting quality and efficiency significantly.
Auto Focus.Auto focus to reduce human intervention. Auto focus range is -12~+10mm and focusing accuracy is 0.05mm.
Multiple Cover Glasses.Added cover glasses to protect the collimation lens effectively.
Drawer Type Lens Holder.Drawer type cover glass holder to facilitate replacement.
MAX Laser Source

More reliable and saving power.
Easy to maintain.
Easy to operate.
Cypcut System

User friendly. Cypcut system provides a simple and intuitive operation interface, which is convenient for users to operate and set parameters.
Support multiple cutting technologies. Cypcut system supports a variety of laser cutting technologies, such as oxygen cutting, nitrogen cutting and so on.
High stability. Cypcut system has high stability during operation and can ensure long-term efficient operation.

Hanli Chiller
Energy saving and environmental protection. Using Hanli chillers can reduce the energy consumption of enterprises and reduce the impact on the environment.
Long service life. Hanli chillers are made of high-quality materials and have high durability.
Easy maintenance. Hanli chillers have a simple structure, are easy to clean, and have low maintenance costs.
Strong Welding Bed

High compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.
Other accessories
Cutting Samples
Customers Reviews
Packaging & Shipping

After Sales Service
1. The warranty period will be maximum 3 years (except for wearing parts;),please refer to the detailed warranty policy on each part according to our AS regulation file. The warranty period is calculated from the date of delivery.
2. In case of any component failure during the warranty period, we are ready to provide telephone and/or online support.
3. During warranty period, we will deliver the parts for free (expenses of parts, not including transportation fees) if the parts cannot work due to non-human reasons.
4. During warranty, if any part needs to be repaired in China, the transportation fees from the customer's factory to China should be borne by the customer, the transportation fees from China to customer's factory should be borne by the supplier.
5. Service after the warranty period: we provide continuous services and support for our customers when the warranty period expires, the customer should bear the expenses of air tickets, parts, accommodation and service(100usd/day/person).
Company Profile
Shandong KR Machinery Technology CO.,Itd was built in the year of 2019,our product scope mainly includes sheet metal fabriction machines such as fiber laser cutting machine,fiber laser welding machine, automation etc.We have been keeping improving the machine and application of sheet metal fabrication,and aim to provide the best product and service for our customers.
KR Machinery has built partnership with customers from South Korea, India, Malaysia, Vietnam, Finland,USA , Canada, Mexico, Australia, New Zealand, Brazil, Egypt, German, England, Russia, etc,and expanding our business globally now. Welcome more partners all over the world visit us.
Factory
FAQ
Q:What's your MOQ?
A: Our MOQ is 1 set machine.
Q: How about the lead time? A: It depends on the machine types and models. For example, it will take around 1-2 weeks for welding, cleaning, and marking machines; while it may need 35-50 days for cutting machines.
Q:This is the first time I use this machine, is it easy to operate?
A: Don't worry, we will provide customers with videos of using guidance and English user manuals. If you still have doubts, our customer service team can connect you with our engineer who is available 24/7.
You can reach out to them through WeChat, WhatsApp, Skype, mobile phone, or email to discuss and resolve any issues you may have on time.
Q:Do you pride after-sales service and warranty?
A:Certainly, We ensure a prompt online response within two hours to provide warranty services.We also provide customers with comprehensive manuals for reference.If any issues persist, you can return the faulty components to us for repair.
