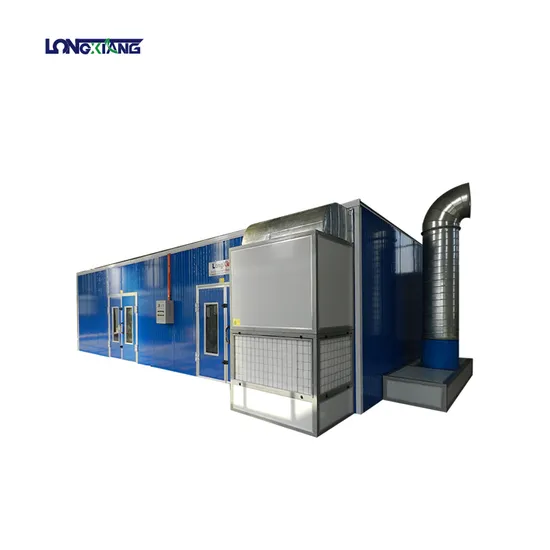

Furniture Paint Machine Wood Spray Painting Machine for Sale
| US$5,000.00-30,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LX-100
Wall Panel
EPS/Rock Wool
Wall Panel Thickness
50/75mm
Heating Type
Electric/Diesel/Gas
Heating Brand
Riello
Lights Type
Upper Lights
Lights Tube
LED
Voltage
380V/50Hz/3pH
Air Speed
0.2m/S
Air Capacity
20000m3/H
Roof Panel
EPS
Usage
Furniture Painting and Baking
Function
Wood Painting and Baking
Painting
Powder Coating
Filter
Ceiling Filter
Transport Package
Packing in Seaworthy Packages
Specification
20*5*3.2m
Trademark
longxiang
Origin
Shandong Province
HS Code
8419899090
Production Capacity
300 Sets Per Year
Product Description
furniture paint machine wood spray painting machine for sale Product Description| Item Model | LX-100 |
| Outside dimension(mm) | 20000×5000×3200mm(L×W×H) |
| Painting room dimension(mm) | 4900×4900mm(L×W) |
| Drying room dimension(mm) | 14950×4900mm(L×W) |
| Incoming door dimension(mm) | 1900*2200mm(W×H) |
| Delivery door dimension(mm) | 1900*2200mm(W×H) |
| Wall panels | EPS with double-ply plate,tongue and groove construction,thickness:50/75mm |
| Lighting | Painting room:6 units×3=18 units×16W LED lamp Baking room:12 pieces×16W LED lamp |
| Inlet fan | 2×4KW double-intake centrifugal fans,air capacity:24000m³/h |
| Outlet fan | 1×7.5KW double-intake centrifugal fan,air capacity:18000m³/h |
| Heating system | 30pieces × 1KW carbon fiber far-infrared heater,anti-explosion |
| Filter system | Intake air:Pre-filter,high efficiency filter(ceiling filter) Exhaust air:water curtain filtering |
| Control system | Lighting switch,spraying,baking temperature,time setting,emergency stop,temperature controller,power supply |
| Total power | 45KW |
Detailed Photos
OUR SERVICES
1. LONGXIANG supports 24 hours online service , perfect after sales service system.
2.LONGXIANG provides short delivery time within 1 week.
3.Engineers available to serve machinery overseas.
4.LONGXIANG support 12-month warranty and will help to maintain it all life long.
Process
A) Non-welded CNC machining process is applied in more than 90% of spare parts to ensure the elegant appearance and excellence performance.
B) More than 10 years of intact use can be reached by strength of materials, perfect surface treatments and strict applicance of raw materials.
C) PU-perfusion technology is applied in main door for high strength and smooth surface.
D) Work process control by integrated circuit ensures more stable function.
